SL series pneumatic fittings
Hered SL Series Throttle Valve Push-In Pneumatic Fittings: Efficient flow control connectors with integrated throttle valves. Features one-touch installation, secure tube retention, and nickel-plated brass construction. Available in sizes SL4 to SL12, compatible with M5 to 1/2″ threads. Operates at 0°C-60°C with max pressure 1.32Mpa. Suitable for normal pressure range 0-0.9Mpa. Compatible with PU/nylon tubing. Ideal for industrial automation, manufacturing, pneumatic tools, process control, and HVAC systems. Offers precise flow adjustment, quick installation, and reliable sealing. Compact design ensures versatility across various pneumatic applications. Pre-coated thread sealant and reusable seal enhance performance. Engineered for durability and efficiency in demanding industrial environments. Perfect for industries requiring adjustable, leak-free pneumatic connections with integrated flow control capabilities. Combines throttling functionality with push-in convenience for optimal air system management.
Product selection · Technical support · OEM & ODM
Product details

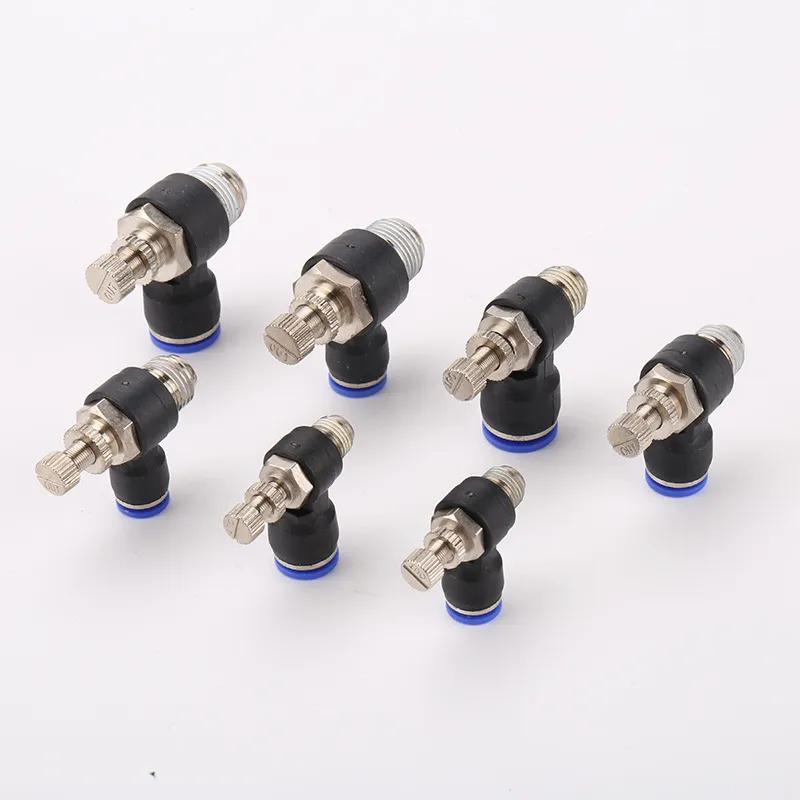

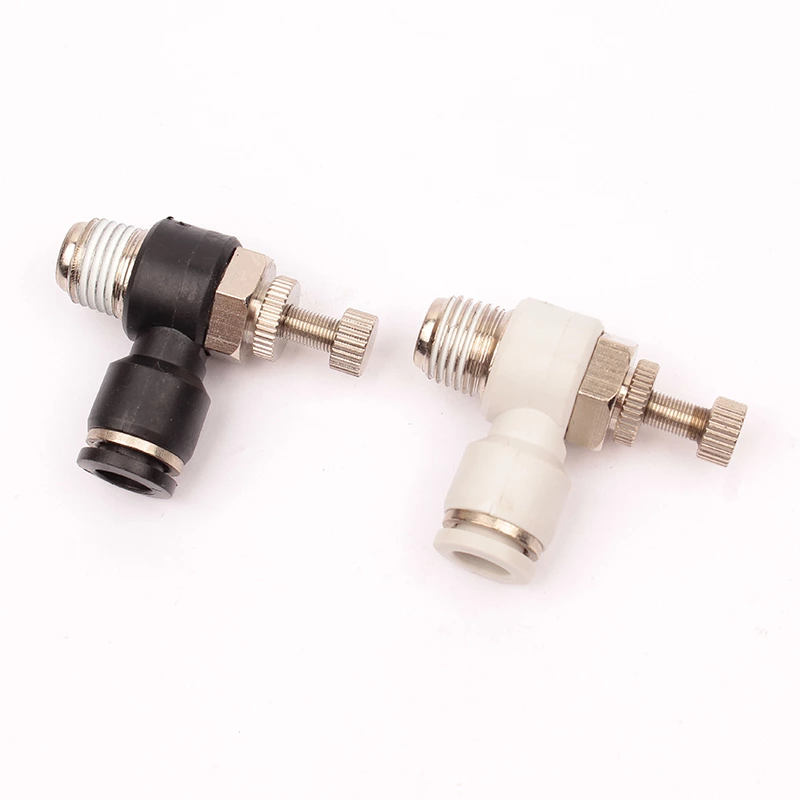

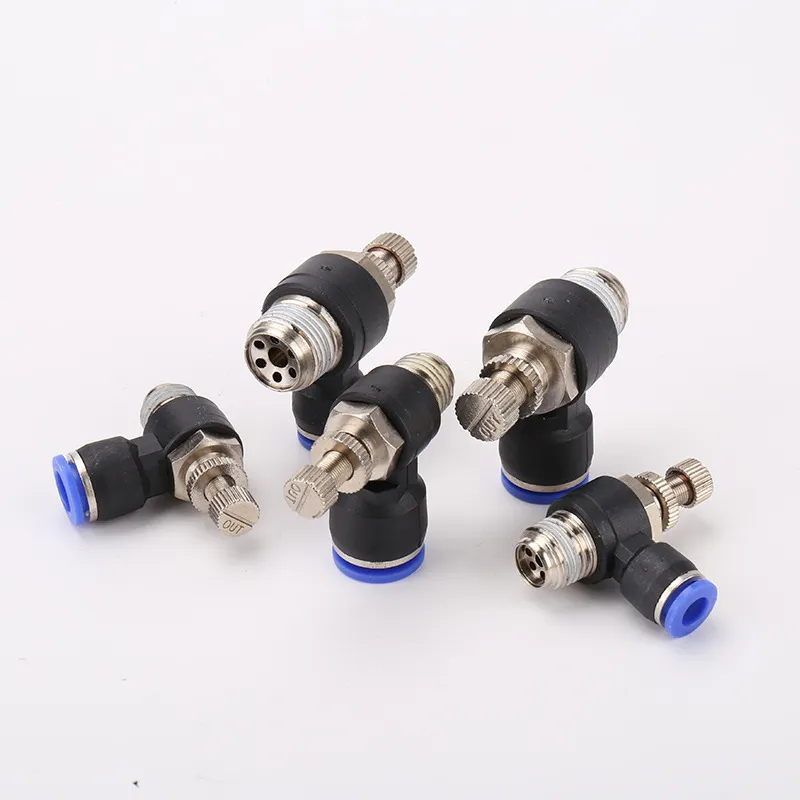

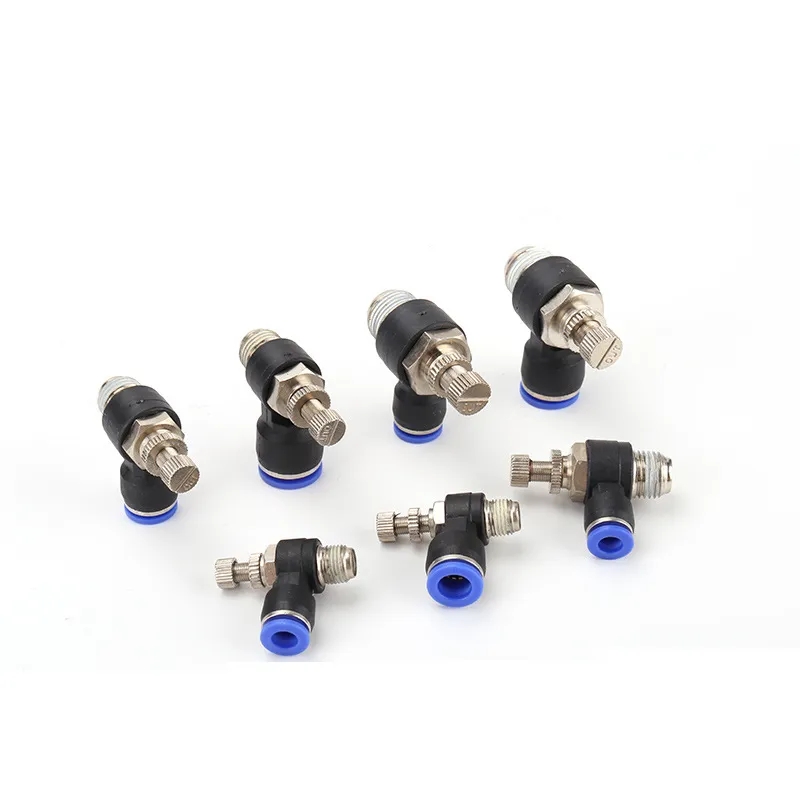

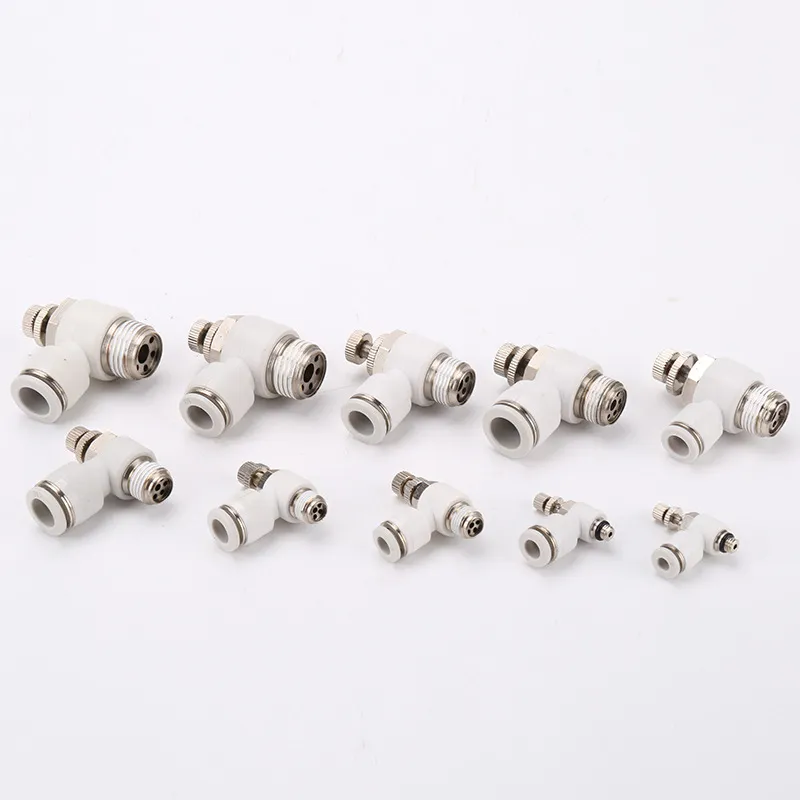

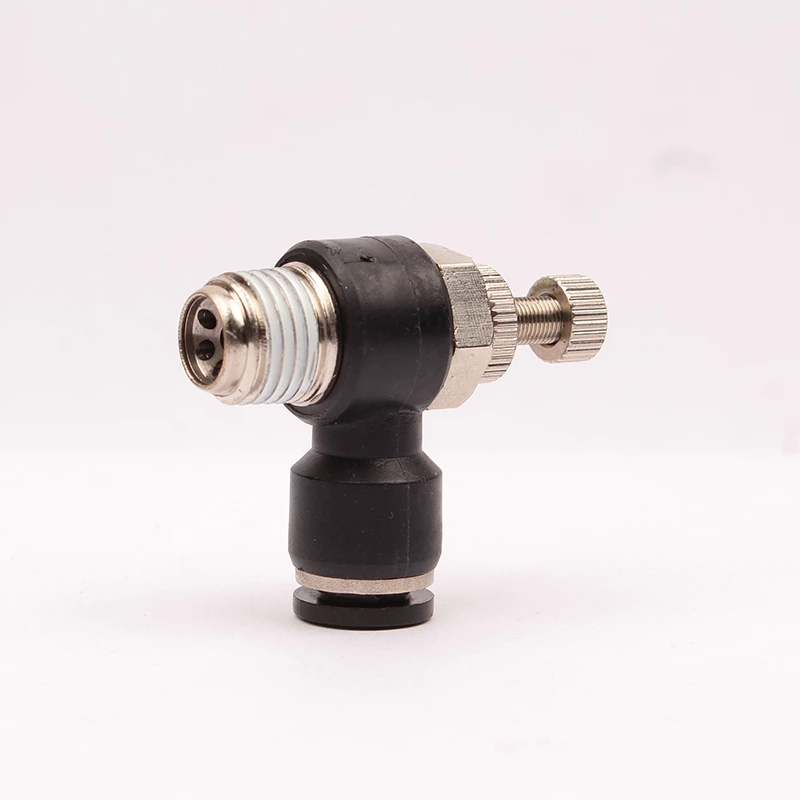

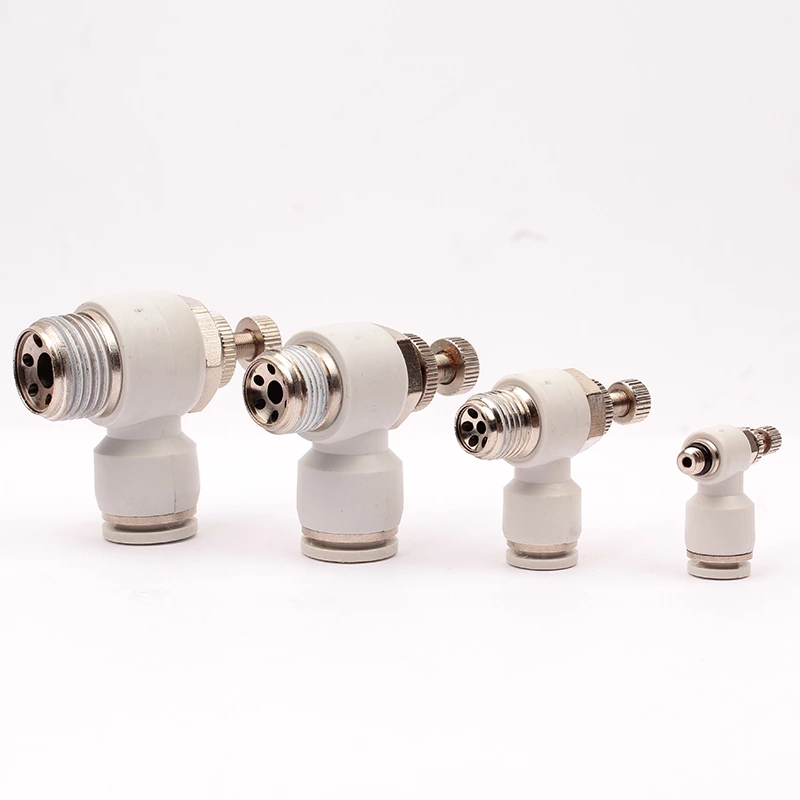

Hered SL Series Throttle Valve Push-In Pneumatic Fittings
The Hered SL Series Throttle Valve Push-In Pneumatic Fittings combine efficient flow control with easy installation, making them ideal for various pneumatic applications. These one-touch fittings offer precise throttling capabilities while ensuring secure connections in your air pressure systems.
Key Features
- One-touch connection for quick and easy installation
- Integrated throttle valve for flow control
- Secure tube retention system
- Nickel-plated metal body for corrosion resistance
- Pre-coated sealant on R and NPT threads
- Compact and lightweight design
- Reusable thread seal
- Compatible with PU and nylon tubing
Technical Specifications
| Parameter | Specification |
|---|---|
| Fluid | Air |
| Max. Pressure | 1.32Mpa (13.5kgf/cm²) |
| Normal Pressure Range | 0~0.9Mpa (0~9.2kgf/cm²) |
| Operating Temperature | 0°C ~ 60°C |
| Thread Sizes | M5, M6, 1/8″, 1/4″, 3/8″, 1/2″ |
| Body Material | Brass with nickel plating |
| Metric Type | φD | R | A | B | C | D | H |
| SL4-M5 | 4 | M5 | 5.7 | 19 | 25 | 11 | 8 |
| SL4-M6 | 4 | M6 | 6.5 | 19 | 25 | 11 | 8 |
| SL4-01 | 4 | R1/8 | 8.5 | 19 | 25 | 11 | 8 |
| SL4-02 | 4 | R1/4 | 11.5 | 24.5 | 29 | 11 | 11 |
| SL6-M5 | 6 | M5 | 5.7 | 19 | 27 | 13 | 8 |
| SL6-M6 | 6 | M6 | 6.5 | 19 | 27 | 13 | 8 |
| SL6-01 | 6 | R1/8 | 8.5 | 24.5 | 31 | 13 | 11 |
| SL6-02 | 6 | R1/4 | 11.5 | 28.5 | 34.5 | 13 | 15 |
| SL6-03 | 6 | R3/8 | 12 | 32.5 | 39 | 13 | 19 |
| SL6-04 | 6 | R1/2 | 13 | 36 | 42.5 | 13 | 22 |
| SL8-M5 | 8 | M5 | 5.7 | 21.5 | 34 | 15 | 11 |
| SL8-M6 | 8 | M6 | 6.5 | 21.5 | 34 | 15 | 11 |
| SL8-01 | 8 | R1/8 | 8.5 | 24.5 | 34 | 15 | 22 |
| SL8-02 | 8 | R1/4 | 11.5 | 28.5 | 36 | 15 | 11 |
| SL8-03 | 8 | R3/8 | 12 | 32.5 | 41 | 15 | 15 |
| SL8-04 | 8 | R1/2 | 13 | 36 | 45 | 15 | 19 |
| SL10-01 | 10 | R1/8 | 8.5 | 24.5 | 37 | 19 | 11 |
| SL10-02 | 10 | R1/4 | 11.5 | 28.5 | 40 | 19 | 15 |
| SL10-03 | 10 | R3/8 | 12 | 32.5 | 46 | 19 | 19 |
| SL10-04 | 10 | R1/2 | 13 | 36 | 48 | 19 | 22 |
| SL12-01 | 12 | R1/8 | 8.5 | 24.5 | 39 | 21 | 11 |
| SL12-02 | 12 | R1/4 | 11.5 | 28.5 | 42 | 21 | 15 |
| SL12-03 | 12 | R3/8 | 12 | 32.5 | 48 | 21 | 19 |
| SL12-04 | 12 | R1/2 | 13 | 36 | 50 | 21 | 22 |
Available Models
The SL Series includes a wide range of sizes to accommodate various tubing diameters:
- SL4 (4mm), SL6 (6mm), SL8 (8mm)
- SL10 (10mm), SL12 (12mm)
Each size is available with different thread options to suit your specific application needs.
Applications
Ideal for various pneumatic systems in:
- Industrial automation
- Manufacturing processes
- Pneumatic tools and equipment
- Process control applications
- HVAC systems
Benefits
- Precise flow control with integrated throttle valve
- Quick and simple tube insertion for efficient installation
- Reliable sealing performance to prevent leaks
- Durable construction for long service life
- Versatile design suitable for various pneumatic applications
Quality Assurance
Hered Pneumatic Co., LTD. ensures high-quality production and adherence to international standards. Our SL Series fittings are designed for easy installation, reliable performance, and long-lasting durability in demanding industrial environments.
For detailed sizing information, installation guidelines, or to place an order, please contact our customer support team.
