PE series pneumatic fittings
Hered PE Series T-Type Air Quick Connector Plastic Pneumatic Fittings: Versatile T-junction connectors for efficient pneumatic systems. Features quick push-in installation, 360° rotation, and tool-free disconnection. Available in sizes PE-4 to PE-16, compatible with 4mm to 16mm tubing. Operates at 0°C-60°C with max pressure 1.32Mpa. Suitable for normal (0-0.9Mpa) and low pressure (-99.99-0Mpa) ranges. Compatible with PU, PE, and nylon tubing. Ideal for manufacturing, machinery repair, food processing, construction, and energy industries. Offers flexible positioning, durable ABS/copper construction, and easy maintenance. CE, ROHS, and CCC certified for quality assurance. Perfect for applications requiring quick, adaptable T-type connections in pneumatic setups. Combines push-in convenience with rotational flexibility for optimal performance in various industrial environments. Cost-effective solution for creating efficient air distribution junctions, ensuring reduced downtime and simplified installation in diverse pneumatic applications.
Product selection · Technical support · OEM & ODM
Product details

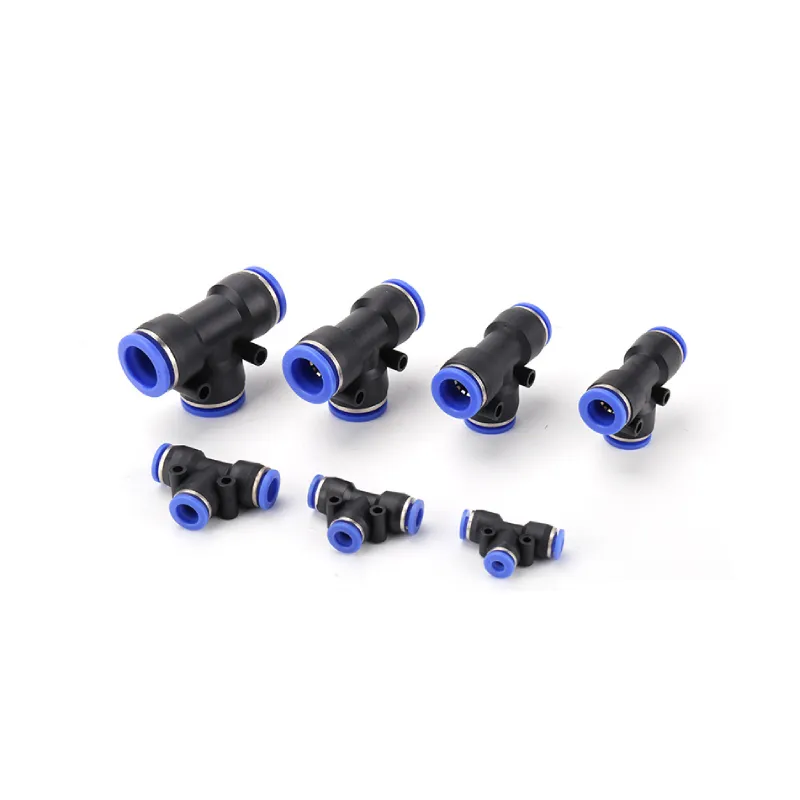

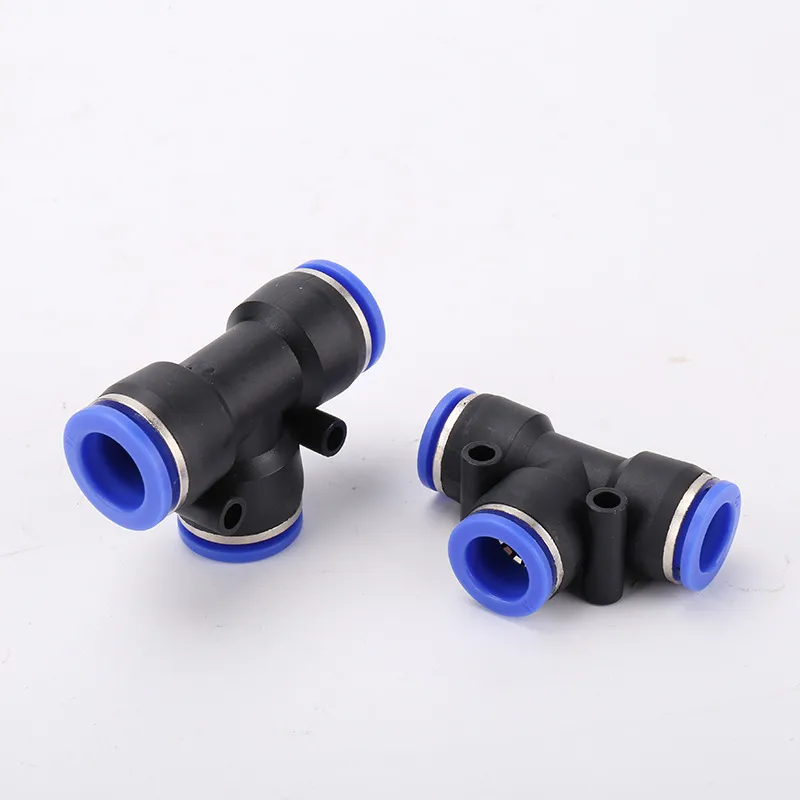

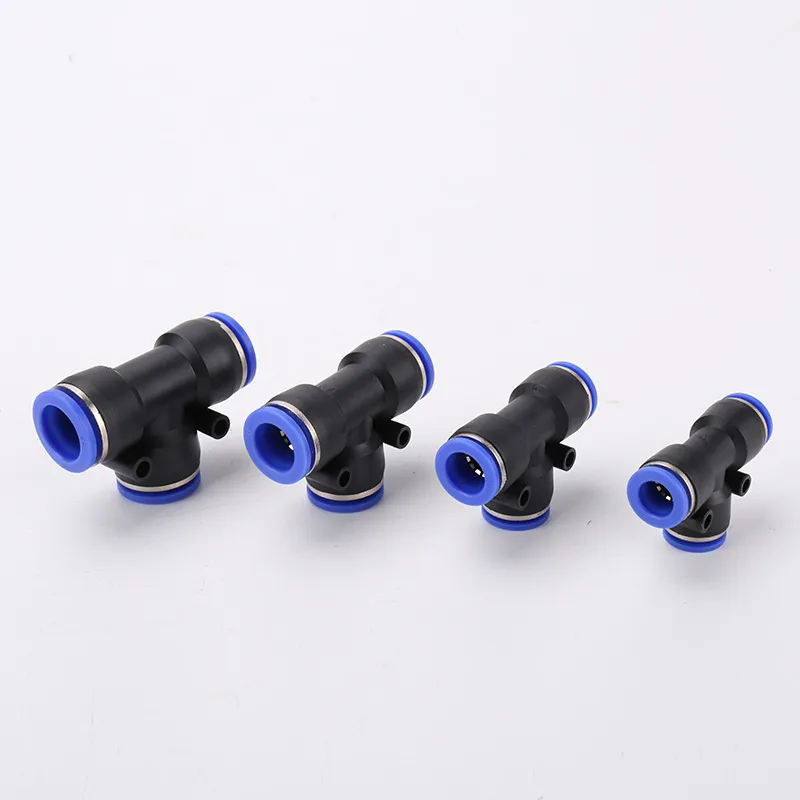

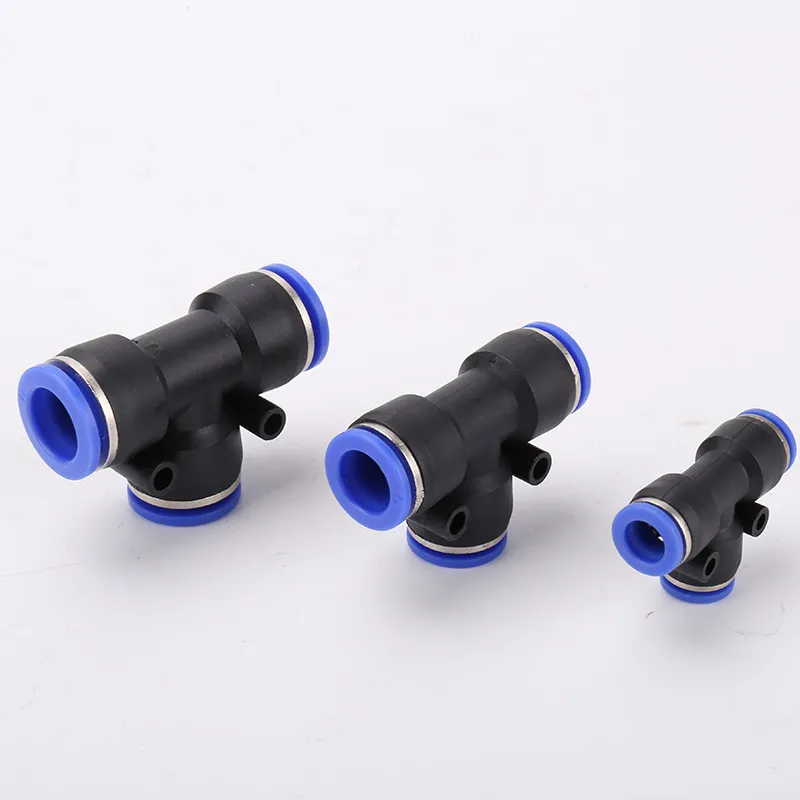

Hered PE Series T-Type Air Quick Connector Plastic Pneumatic Fittings
The Hered PE Series T-Type Air Quick Connector Plastic Pneumatic Fittings offer a versatile and efficient solution for creating T-junctions in pneumatic systems. These high-quality fittings combine ease of use with durability, making them an excellent choice for various industrial applications.
Key Features
- Quick and easy push-in installation
- Compatible with Polyurethane (PU) and Nylon tubing
- 360° rotation capability for flexible installation
- Elliptical release ring for tool-free disconnection
- Outside and inside hexagonal wrench tightening options
- High-quality ABS and copper construction
- CE, ROHS, and CCC certified
Technical Specifications
| Parameter | Specification |
|---|---|
| Fluid | Air, Vacuum |
| Max. Pressure | 1.32Mpa (13.5kgf/cm²) |
| Normal Pressure Range | 0~0.9Mpa (0~9.2kgf/cm²) |
| Low Pressure Range | -99.99~0Mpa (-750~0mmHg) |
| Operating Temperature | 0°C ~ 60°C |
| Tube Outer Sizes | 4mm, 6mm, 8mm, 10mm, 12mm, 14mm, 16mm |
| Compatible Hoses | PU Hoses, PE Air Pipes, Nylon Pipes |
Available Models
The PE Series includes a range of sizes to accommodate various tubing diameters:
- PE-4 (4mm), PE-6 (6mm), PE-8 (8mm)
- PE-10 (10mm), PE-12 (12mm), PE-14 (14mm), PE-16 (16mm)
Applications
Ideal for various industries and applications, including:
- Manufacturing plants
- Machinery repair shops
- Food & beverage factories
- Construction works
- Energy & mining operations
- Pneumatic tools and systems
- Quick coupling hose connections
Benefits
- Quick and easy installation with push-in design
- Flexible positioning with 360° rotation capability
- Easy disconnection with elliptical release ring
- Durable construction for long-lasting performance
- Versatile use in various pneumatic applications
- Reduced maintenance and downtime
Quality Assurance
Hered Pneumatic Co., LTD. ensures high-quality production and adherence to international standards. Our PE Series fittings are designed for easy installation, reliable performance, and long-lasting durability in various industrial environments.
For detailed sizing information, installation guidelines, or to place an order, please contact our customer support team.
