PW series pneumatic fittings
Hered PW Series 3-Way Reducing Y Type Tube-to-Tube Adaptor Pneumatic Airtube Pipe Fittings: Versatile Y-configuration connectors for efficient pneumatic systems. Features 3-way design with size reduction capability, quick-connect functionality, and high-strength white plastic construction. Available in sizes PW6-4 to PW12-10, compatible with 4mm to 12mm tubing. Operates at 0°C-60°C with max pressure 1.0Mpa. Suitable for air applications. Compatible with PU and Nylon tubing. Ideal for industrial automation, manufacturing, automotive, food processing, packaging, and robotics industries. Offers excellent sealing, corrosion resistance, and tool-free installation. Perfect for applications requiring reliable 3-way connections with size reduction in diverse pneumatic setups. Combines durability with user-friendly design for optimal performance in demanding industrial environments. Engineered for long-lasting reliability and efficient system assembly, ensuring reduced maintenance and downtime in various pneumatic applications.
Product selection · Technical support · OEM & ODM
Product details

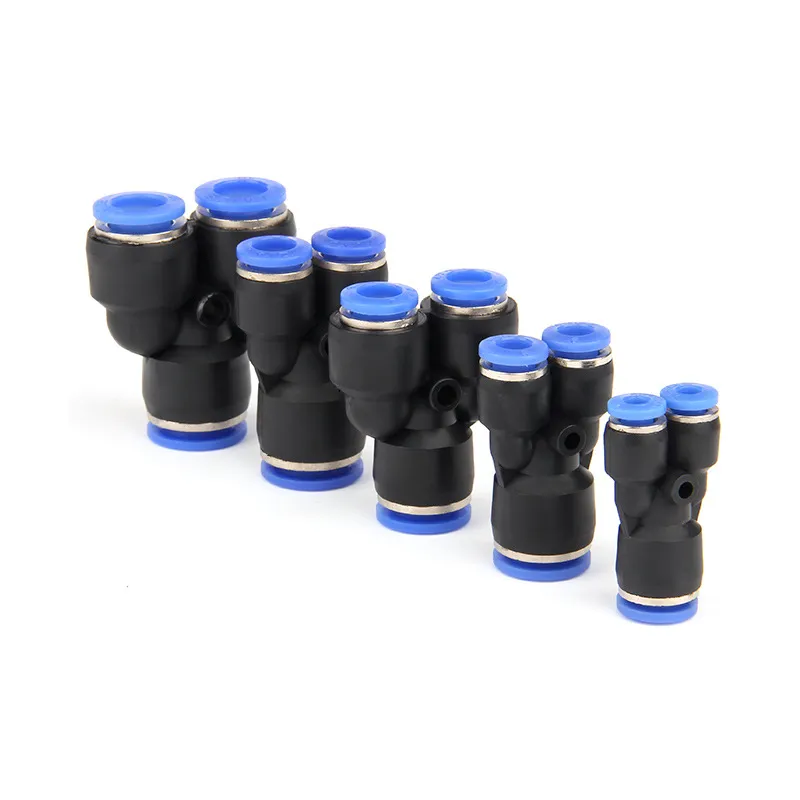

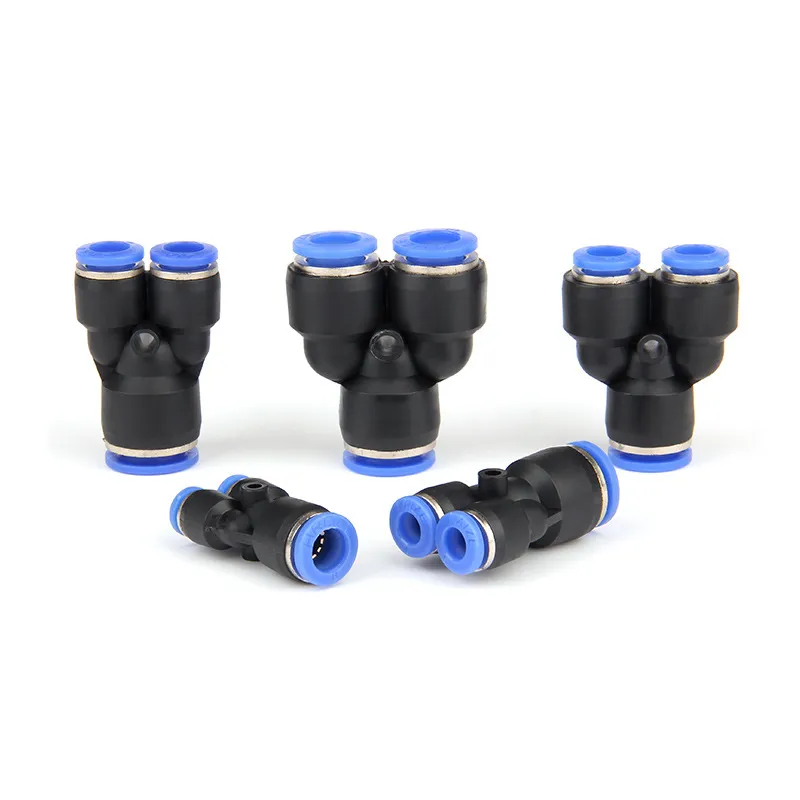

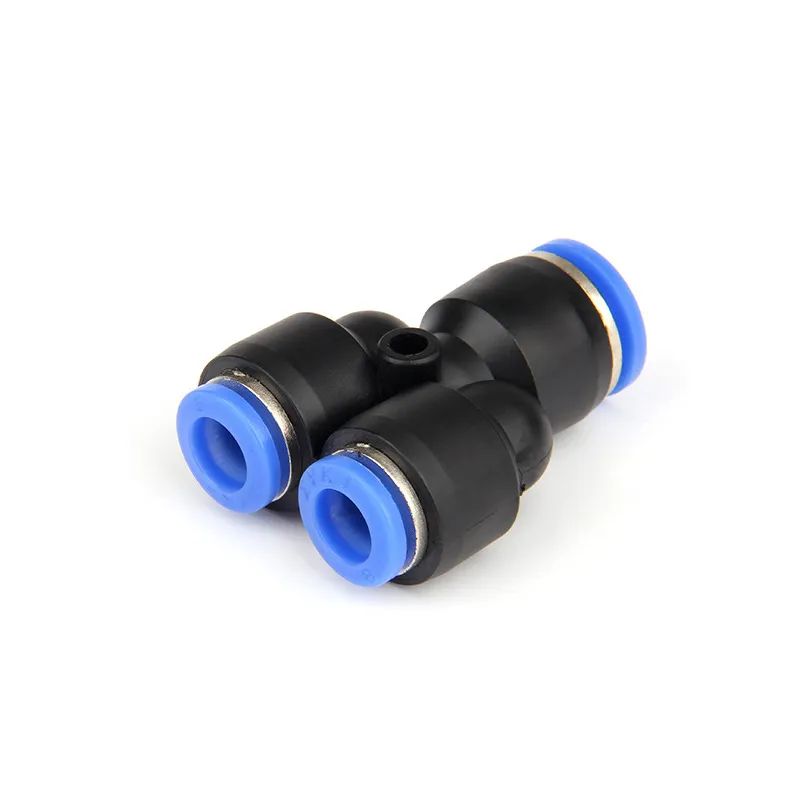

Hered PW Series 3-Way Reducing Y Type Tube-to-Tube Adaptor Pneumatic Airtube Pipe Fittings
The Hered PW Series 3-Way Reducing Y Type Tube-to-Tube Adaptor offers a versatile and efficient solution for connecting tubes of different sizes in a Y-configuration for pneumatic systems. These high-quality fittings combine ease of installation with reliable performance, making them an excellent choice for various industrial applications.
Key Features
- Y-type design for 3-way connections with size reduction capability
- Quick-connect functionality for easy installation and removal without tools
- High-strength, wear-resistant, and corrosion-resistant construction
- White plastic body for durability and long service life
- Excellent sealing performance
- Compatible with PU and Nylon tubing
- Wide range of applications in pneumatic systems
Technical Specifications
| Parameter | Specification |
|---|---|
| Fluid | Air |
| Max. Pressure | 0-1.0Mpa |
| Operating Temperature | 0°C ~ 60°C |
| Tube Outer Diameters | 4mm, 6mm, 8mm, 10mm, 12mm |
| Inch Type | Metric Type | ΦD1 | ΦD2 | B | J | φd |
| PW1/4-5/32 | PW6-4 | 6 | 4 | 38.5 | 13 | 3.5 |
| PW5/16-5/32 | PW8-4 | 8 | 4 | 42 | 16 | 4 |
| PW5/16-1/4 | PW8-6 | 8 | 6 | 42.5 | 16 | 4 |
| PW3/8-1/4 | PW10-6 | 10 | 6 | 47.5 | 19 | 4 |
| PW3/8-5/16 | PW10-8 | 10 | 8 | 48 | 19 | 4 |
| PW1/2-5/16 | PW12-8 | 12 | 8 | 53 | 21 | 4 |
| PW1/2-3/8 | PW12-10 | 12 | 10 | 54 | 21 | 4 |
Available Models
The PW Series includes a range of size combinations to accommodate various tubing diameters:
- PW6-4
- PW8-4, PW8-6
- PW10-6, PW10-8
- PW12-8, PW12-10
Applications
Ideal for various pneumatic systems in:
- Industrial automation
- Manufacturing processes
- Automotive industry
- Food and beverage processing
- Packaging machinery
- Robotics
- General pneumatic applications requiring 3-way connections with size reduction
Benefits
- Quick and easy installation with tool-free push-in design
- Versatile use for connecting different tube sizes in a Y-configuration
- High-density construction resistant to bursting
- Corrosion-resistant for long-lasting performance
- Easy disassembly for maintenance or reconfiguration
- Reduced downtime and maintenance costs
- Wide compatibility with various pneumatic components
Quality Assurance
Hered Pneumatic Co., LTD. ensures high-quality production and adherence to industry standards. Our PW Series fittings are designed for reliable performance, excellent sealing, and long-lasting durability in various industrial environments.
For detailed sizing information, installation guidelines, or to place an order, please contact our customer support team.
