PV series pneumatic fittings

Hered PV Series Union Elbows Stainless Steel Pneumatic Fittings: Durable 90-degree connectors for robust pneumatic systems. Features stainless steel construction, quick installation, and reusable design. Available in sizes PV-4 to PV-16, compatible with 4mm to 16mm tubing. Operates at 0°C-60°C with max pressure 1.32Mpa, max seal temperature 75°C. Suitable for normal (0-0.9Mpa) and low pressure (-99.99-0Mpa) ranges. Compatible with PU/nylon tubing. Ideal for industrial automation, manufacturing, automotive, food processing, chemical, and pharmaceutical industries. Offers multiple thread options (BSPT, BSPP, NPT, UNF, SAE, ISO), vibration-tested sealing, and high-temperature performance. Perfect for applications requiring sturdy, leak-free 90-degree connections in demanding pneumatic setups. Combines durability with easy installation for optimal performance in diverse industrial environments. Engineered for long-lasting reliability and efficient system assembly in challenging pneumatic applications.

Send your requirements, we will quote for you within 12 hours

Tel:+8618066396588

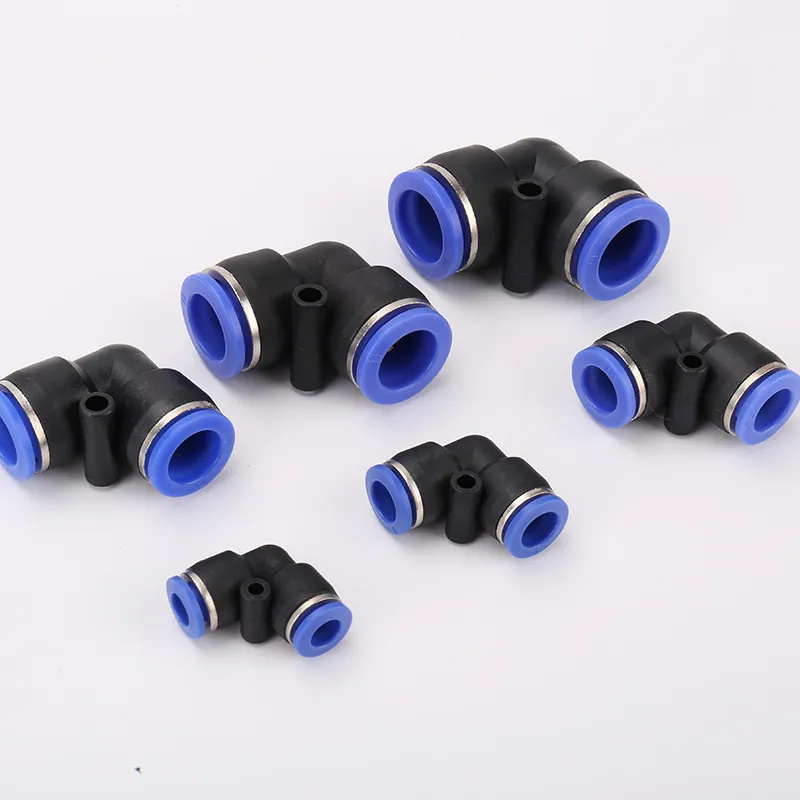

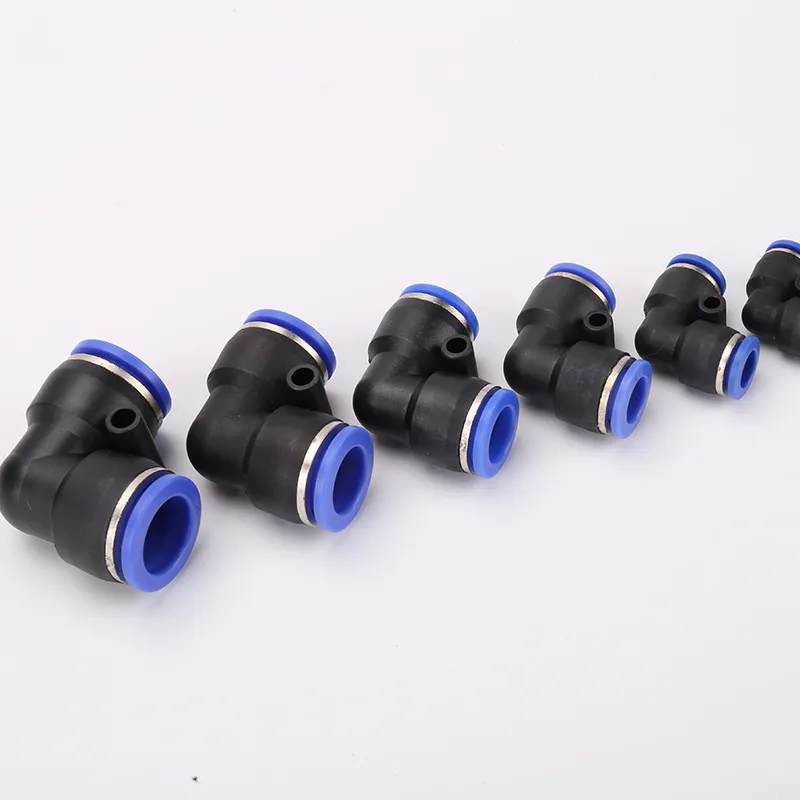

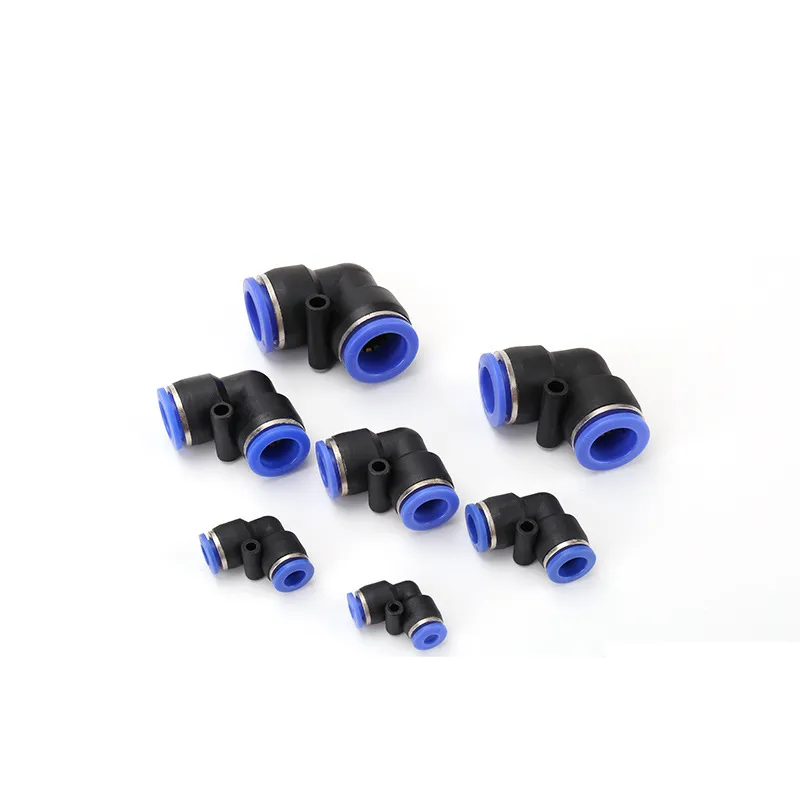

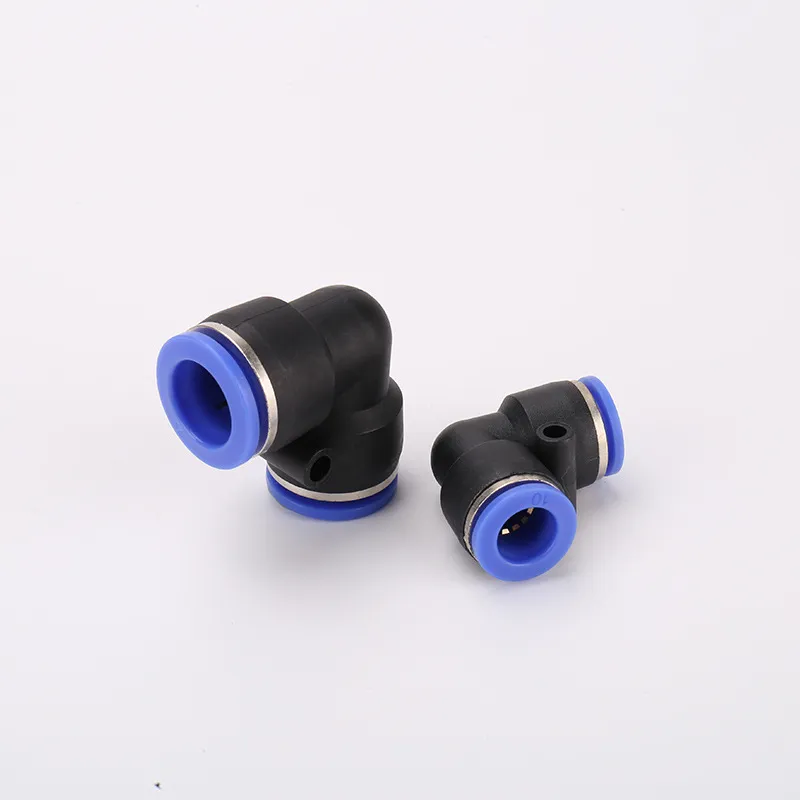

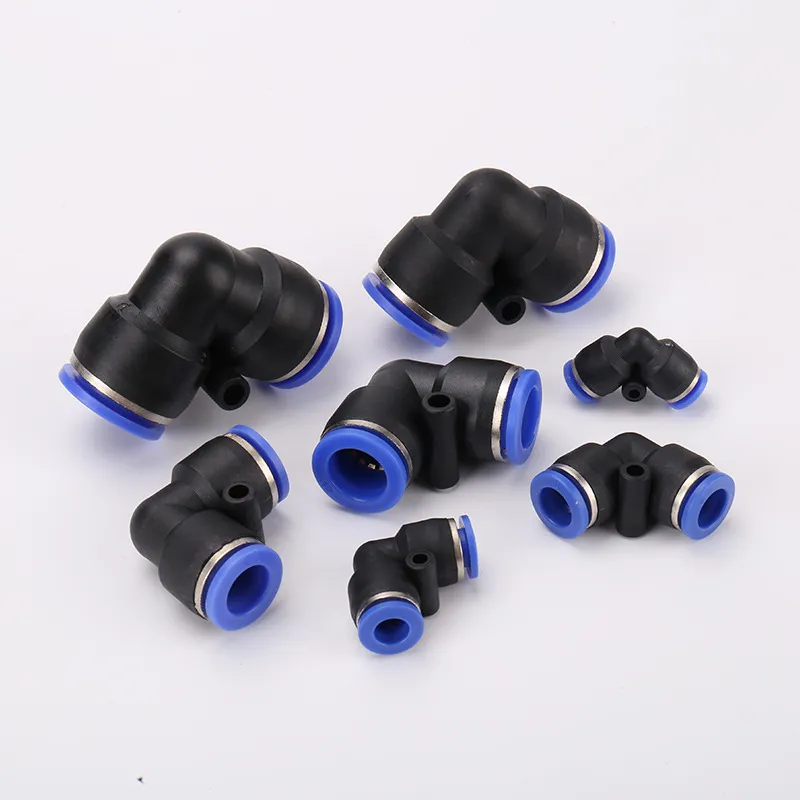

Hered PV Series Union Elbows Stainless Steel Pneumatic Fittings

The Hered PV Series Union Elbows Stainless Steel Pneumatic Fittings offer a durable and efficient solution for creating 90-degree connections in pneumatic systems. These high-quality fittings combine the strength of stainless steel with ease of installation, making them an excellent choice for various industrial applications.

Key Features

  • Stainless steel construction for superior durability
  • Quick and easy installation and removal
  • Reusable design for multiple applications
  • Available in various thread types (BSPT, BSPP, NPT, UNF, SAE, ISO)
  • Vibration-tested for leaks at 10kg/cm² (140 psi)
  • Special inner seal design for high-temperature performance up to 75°C
  • Compatible with PU and Nylon tubing

Technical Specifications

Parameter Specification
Fluid Air
Max. Pressure 1.32Mpa (13.5kgf/cm²)
Normal Pressure Range 0~0.9Mpa (0~9.2kgf/cm²)
Low Pressure Range -99.99~0Mpa (-750~0mmHg)
Operating Temperature 0°C ~ 60°C
Max Seal Temperature 75°C
Tube Outer Sizes 4mm, 6mm, 8mm, 10mm, 12mm, 14mm, 16mm
Metric Type φD E F φd
PV-4 4 18.5 3.5
PV-6 6 20.5 8 3.5
PV-8 8 23.5 10 4.5
PV-10 10 28 12 4
PV-12 12 30.5 14 5
PV-14 14 31 13 4
PV-16 16 34.5 17 4

Available Models

The PV Series includes a range of sizes to accommodate various tubing diameters:

  • PV-4 (4mm), PV-6 (6mm), PV-8 (8mm)
  • PV-10 (10mm), PV-12 (12mm), PV-14 (14mm), PV-16 (16mm)

Applications

Ideal for various pneumatic systems in:

  • Industrial automation
  • Manufacturing processes
  • Automotive industry
  • Food and beverage processing
  • Chemical processing plants
  • Pharmaceutical production
  • General pneumatic applications requiring durable connections

Benefits

  • Robust stainless steel construction for long-lasting performance
  • Quick and easy installation for reduced downtime
  • Versatile use with different thread options
  • Reliable sealing under vibration conditions
  • High-temperature capability for demanding environments
  • Cost-effective due to reusability

Quality Assurance

Hered Pneumatic Co., LTD. ensures high-quality production with extensive testing procedures. Our PV Series fittings are designed for reliable performance, leak-free operation, and long-lasting durability in various industrial environments.

For detailed sizing information, installation guidelines, or to place an order, please contact our customer support team.
