PL Series pneumatic fittings
Hered PL Series G Thread Plastic Pneumatic Push to Connect Fittings: Versatile, efficient connectors for pneumatic systems. Features nickel-plated copper surface, tool-free installation, and superior sealing. Available in sizes PL4 to PL16, compatible with M5 to R1/2″ threads. Operates at 0°C-60°C with max pressure 1.32Mpa. Suitable for normal (0-0.9Mpa) and low pressure (-99.99-0Mpa) applications. Compatible with PU/Nylon tubing. Ideal for industrial automation, manufacturing, pneumatic tools, HVAC, and process control. Offers easy installation, flexible adjustment, and durable performance. Strong plastic clip ensures secure connections. Multiple sizing options provide versatility across various pneumatic applications. Engineered for reliability and longevity in demanding industrial environments. Perfect for industries requiring quick, adaptable, and leak-free pneumatic connections with excellent sealing performance.
Product selection · Technical support · OEM & ODM
Product details

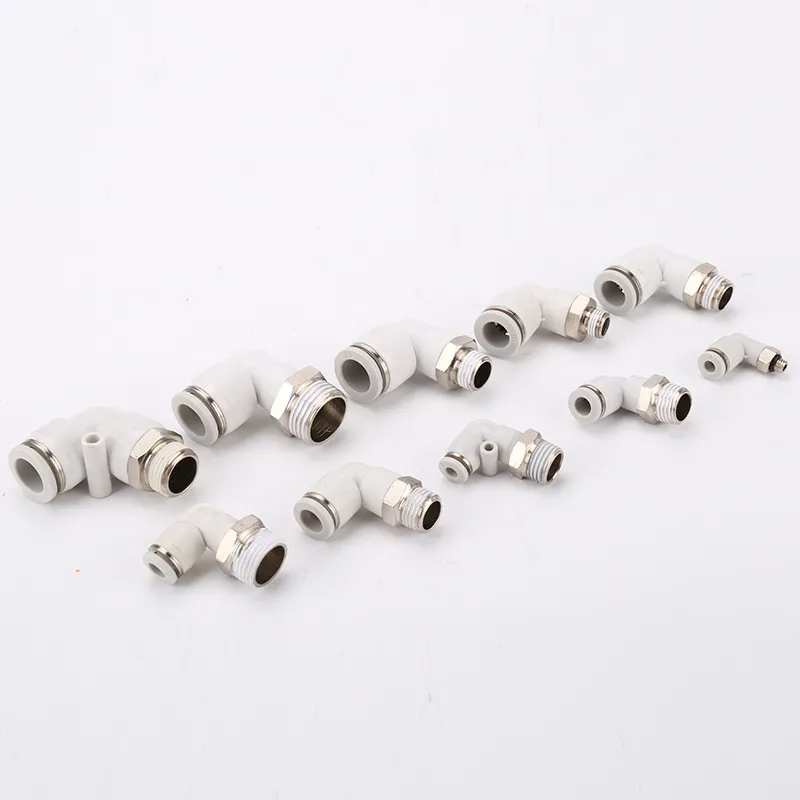

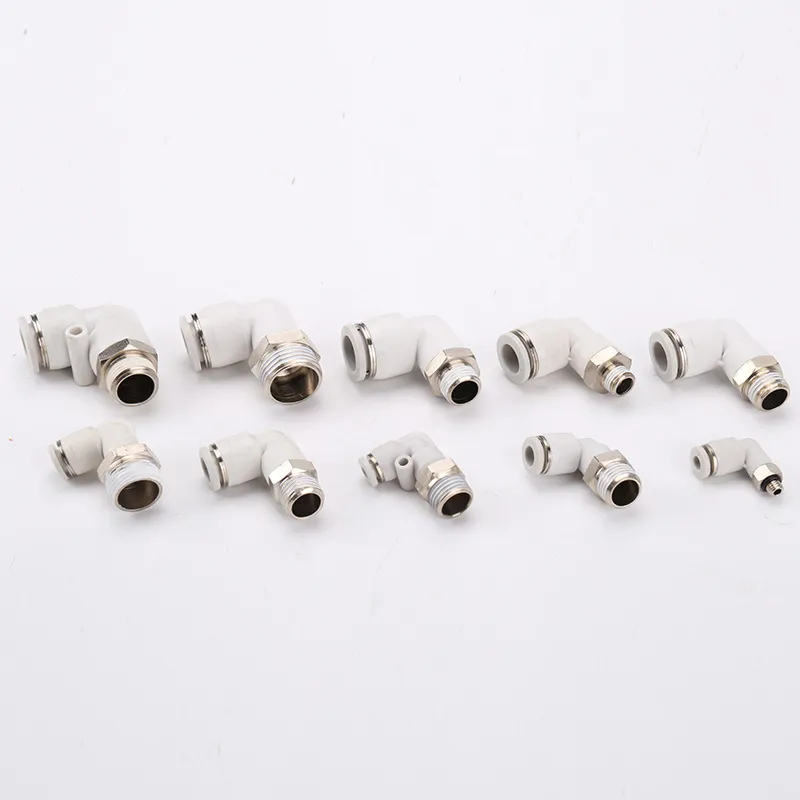

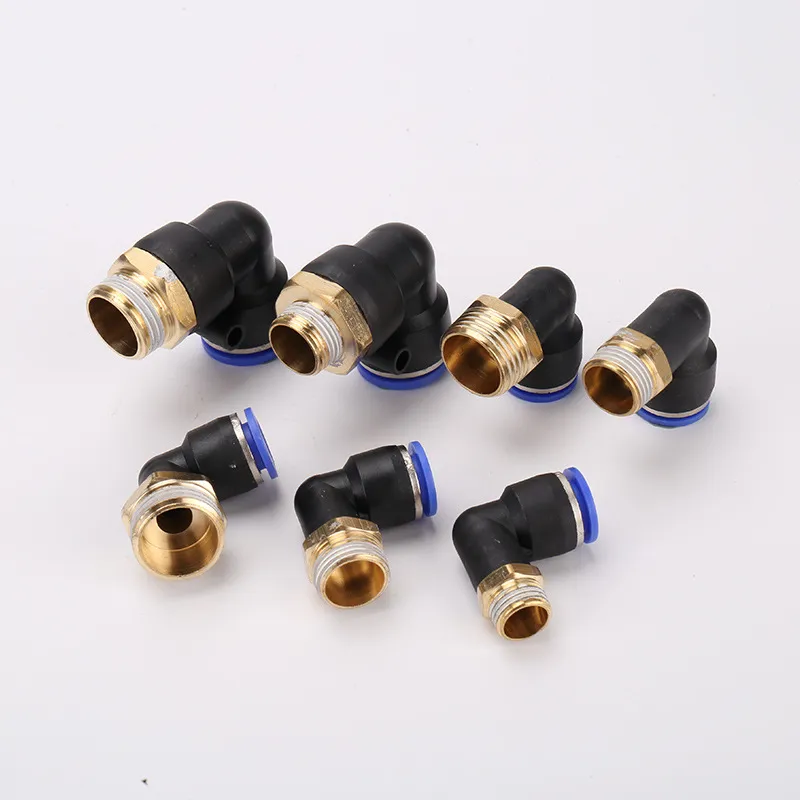

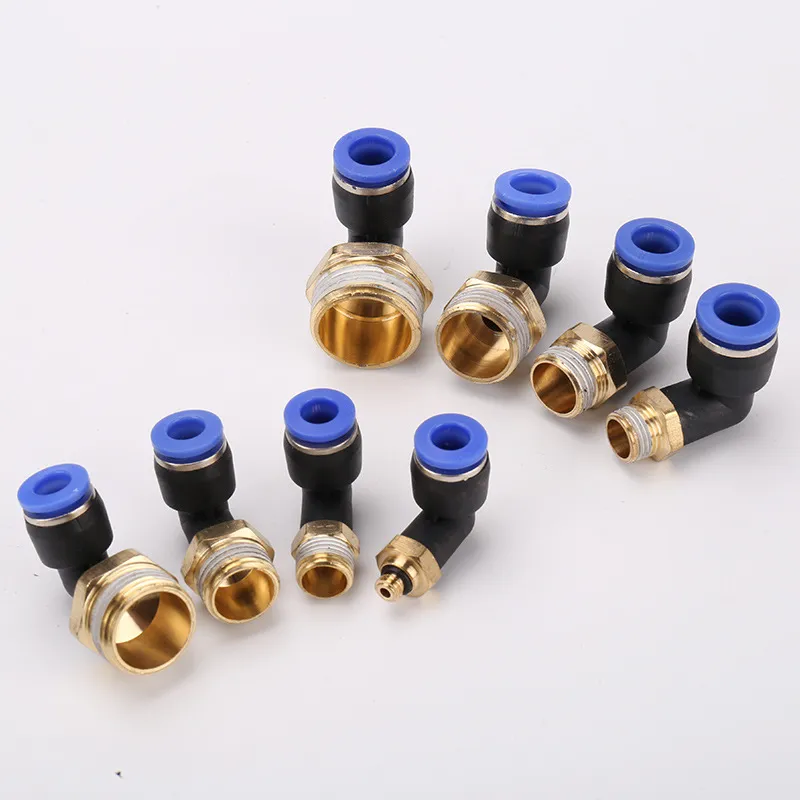

Hered PL Series G Thread Plastic Pneumatic Push to Connect Fittings
The Hered PL Series G Thread Plastic Pneumatic Push to Connect Fittings offer a reliable and efficient solution for pneumatic systems. These versatile fittings feature easy installation and removal, excellent sealing performance, and compatibility with various pneumatic components.
Key Features
- Pure copper surface with nickel plating for increased strength and longevity
- Sturdy and durable construction for extended service life
- Tool-free installation and removal of tubing
- Superior sealing performance to prevent leaks
- Flexible pipeline direction adjustment after installation
- Wide range of applications in pneumatic systems
- Strong plastic clip for secure tubing connection
Technical Specifications
| Parameter | Specification |
|---|---|
| Fluid | Air |
| Max. Pressure | 1.32Mpa (13.5kgf/cm²) |
| Normal Pressure Range | 0~0.9Mpa (0~9.2kgf/cm²) |
| Low Pressure Range | -99.99~0Mpa (-750~0mmHg) |
| Operating Temperature | 0°C ~ 60°C |
| Applicable Tube | PU/Nylon tube |
| Thread Sizes | 1/8″, 1/4″, 3/8″, 1/2″ |
| Body Material | Brass with nickel plating |
| Inch Type | Metric Type | φD | R | A | B | H | E | φd |
| PL5/32-M5 | PL4-M5 | 4 | M5 | 4.5 | 25 | 10 | 19.7 | / |
| PL5/32-01 | PL4-01 | 4 | R1/8 | 7 | 26.5 | 10 | 19.7 | / |
| PL5/32-02 | PL4-02 | 4 | R1/4 | 9 | 28 | 14 | 19.7 | / |
| PL1/4-M5 | PL6-M5 | 6 | M5 | 4.5 | 27.5 | 12 | 20.8 | 3.5 |
| PL1/4-01 | PL6-01 | 6 | R1/8 | 7 | 27.5 | 12 | 20.8 | 3.5 |
| PL1/4-02 | PL6-02 | 6 | R1/4 | 9 | 29.5 | 14 | 20.8 | 3.5 |
| PL1/4-03 | PL6-03 | 6 | R3/8 | 10 | 30.5 | 17 | 20.8 | 3.5 |
| PL1/4-04 | PL6-04 | 6 | R1/2 | 11 | 32 | 21 | 20.8 | 3.5 |
| PL5/16-01 | PL8-01 | 8 | R1/8 | 8 | 31.7 | 14 | 23.5 | 4.5 |
| PL5/16-02 | PL8-02 | 8 | R1/4 | 10 | 33.8 | 14 | 23.5 | 4.5 |
| PL5/16-03 | PL8-03 | 8 | R3/8 | 10 | 33.8 | 17 | 23.5 | 4.5 |
| PL5/16-04 | PL8-04 | 8 | R1/2 | 11 | 35.5 | 21 | 23.5 | 4.5 |
| PL3/8-01 | PL10-01 | 10 | R1/8 | 8 | 35.5 | 17 | 27.4 | 4.5 |
| PL3/8-02 | PL10-02 | 10 | R1/4 | 10 | 37.5 | 17 | 27.4 | 4.5 |
| PL3/8-03 | PL10-03 | 10 | R3/8 | 10 | 38 | 17 | 27.4 | 4.5 |
| PL3/8-04 | PL10-04 | 10 | R1/2 | 11 | 38.6 | 21 | 27.4 | 4.5 |
| PL1/2-01 | PL12-01 | 12 | R1/8 | 8 | 38 | 19 | 30.3 | 5 |
| PL1/2-02 | PL12-02 | 12 | R1/4 | 10 | 39.5 | 19 | 30.3 | 5 |
| PL1/2-03 | PL12-03 | 12 | R3/8 | 10 | 40.5 | 19 | 30.3 | 5 |
| PL1/2-04 | PL12-04 | 12 | R1/2 | 11 | 42 | 21 | 30.3 | 5 |
| PL14-03 | 14 | R3/8 | 12 | 42.5 | 24 | 30.3 | 4 | |
| PL14-04 | 14 | R1/2 | 15 | 45 | 24 | 30.3 | 4 | |
| PL16-03 | 16 | R3/8 | 15 | 50 | 24 | 34 | 4 | |
| PL16-04 | 16 | R1/2 | 15 | 50.5 | 27 | 34 | 4 |
Available Models
The PL Series includes a wide range of sizes to accommodate various tubing diameters:
- PL4 (4mm), PL6 (6mm), PL8 (8mm)
- PL10 (10mm), PL12 (12mm), PL14 (14mm), PL16 (16mm)
Each size is available with different thread options (M5, R1/8″, R1/4″, R3/8″, R1/2″) to suit your specific application needs.
Applications
Ideal for various pneumatic systems in:
- Industrial automation
- Manufacturing processes
- Pneumatic tools and equipment
- HVAC systems
- Process control applications
Quality Assurance
Hered Pneumatic Co., LTD. ensures high-quality production and adherence to international standards. Our PL Series fittings are designed for easy installation, reliable performance, and long-lasting durability in demanding industrial environments.
For detailed sizing information, installation guidelines, or to place an order, please contact our customer support team.
