PEG series pneumatic fittings
Hered PEG Series T Type Hose Fittings 3 Way Plastic Tee Tube Connector: Versatile T-configuration connectors for efficient pneumatic systems. Features 3-way design with size reduction capability, quick-connect push-in functionality, and durable plastic construction. Available in sizes PEG6-4 to PEG16-12, compatible with 4mm to 16mm tubing. Operates at 0°C-60°C with max pressure 1.0Mpa. Suitable for air applications. Compatible with PU and Nylon tubing. Ideal for industrial automation, manufacturing, automotive, food processing, packaging, and robotics industries. Offers flexible tube direction adjustment, easy installation, and wide range of size combinations. Perfect for applications requiring reliable 3-way connections with size reduction in diverse pneumatic setups. Combines lightweight durability with user-friendly design for optimal performance in demanding industrial environments. Engineered for long-lasting reliability and efficient system assembly, ensuring reduced maintenance and downtime in various pneumatic applications.
Product selection · Technical support · OEM & ODM
Product details

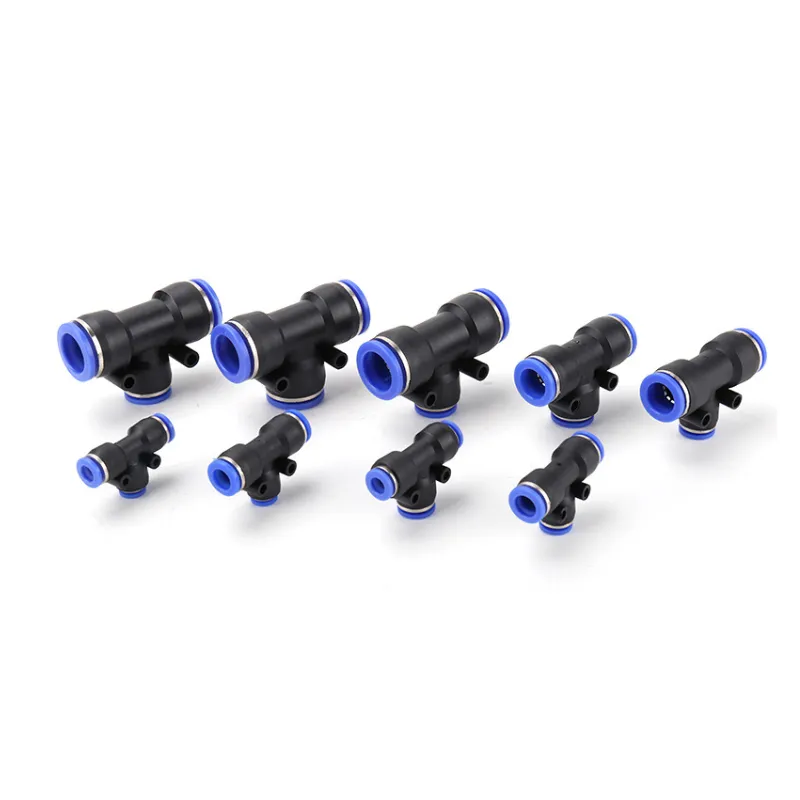

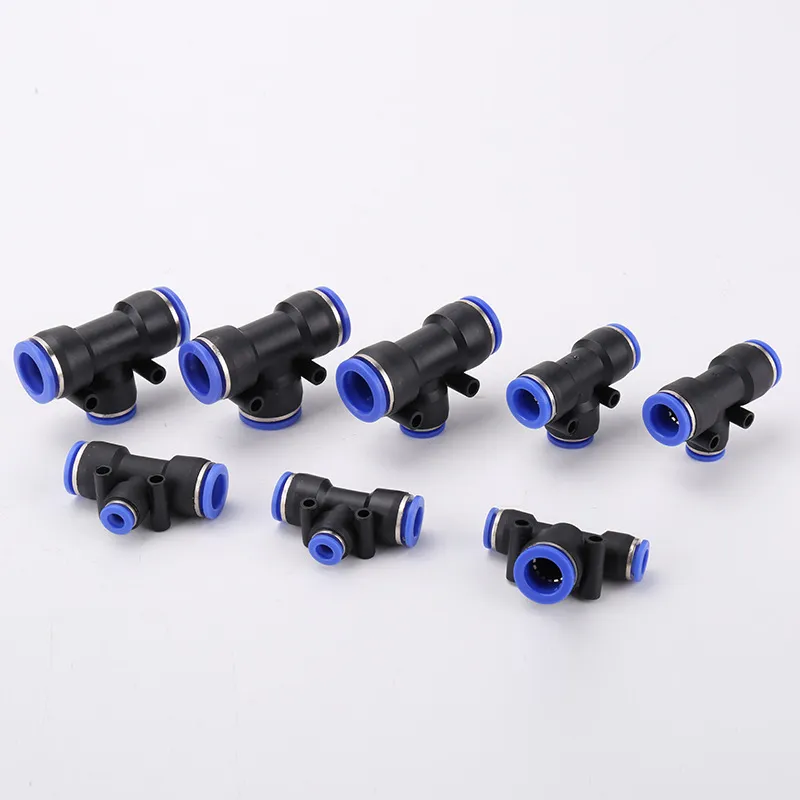

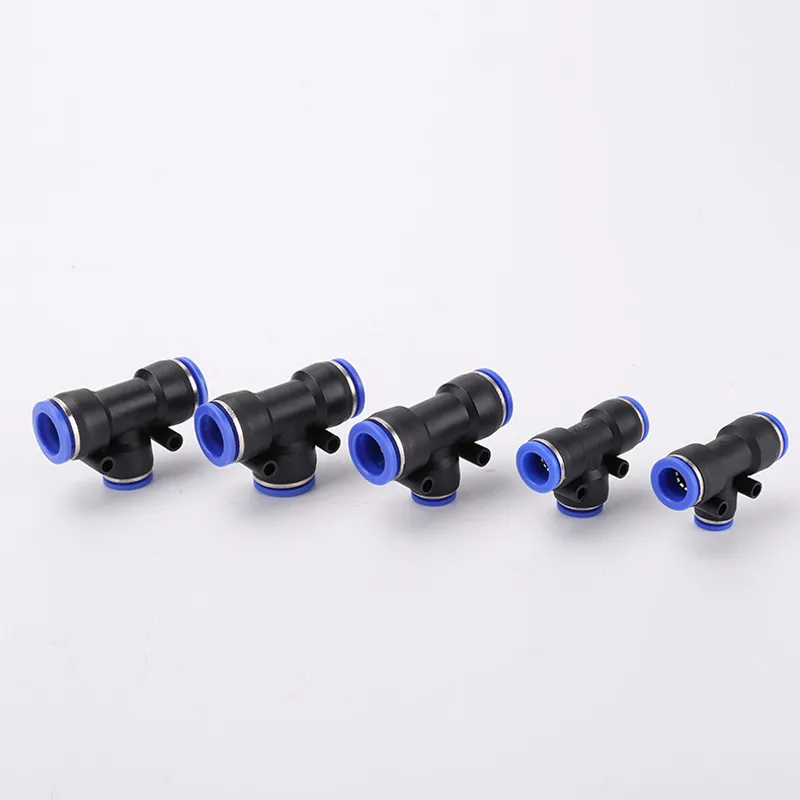

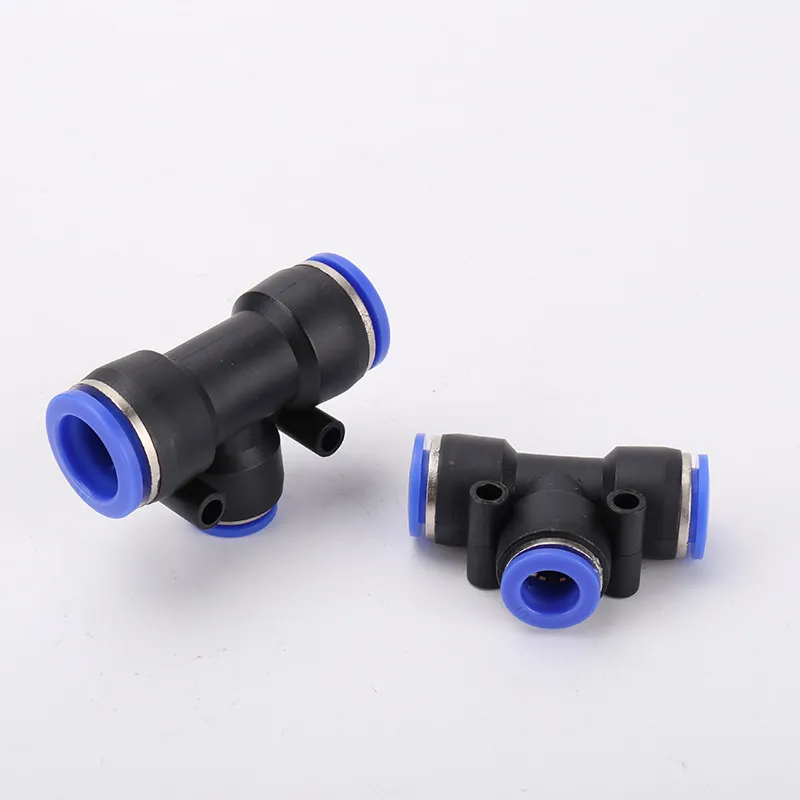

Hered PEG Series T Type Hose Fittings 3 Way Plastic Tee Tube Connector
The Hered PEG Series T Type Hose Fittings offer a versatile and efficient solution for creating 3-way connections with size reduction capabilities in pneumatic systems. These high-quality plastic fittings combine ease of installation with flexible positioning, making them an excellent choice for various industrial applications.
Key Features
- T-type design for 3-way connections with size reduction capability
- Quick-connect push-in functionality for easy installation
- Durable plastic construction for long-lasting performance
- Compatible with PU and Nylon tubing
- Flexible tube direction adjustment after installation
- Wide range of size combinations available
- Suitable for various pneumatic piping needs
Technical Specifications
| Parameter | Specification |
|---|---|
| Fluid | Air |
| Max. Pressure | 0-1.0Mpa |
| Operating Temperature | 0°C ~ 60°C |
| Tube Outer Diameters | 4mm, 6mm, 8mm, 10mm, 12mm, 16mm |
| Metric Type | ΦD1 | ΦD2 | B | E | F | φd |
| PEG6-4 | 6 | 4 | 40 | 20.5 | 16 | 3.5 |
| PEG8-4 | 8 | 4 | 44 | 23 | 20 | 4.5 |
| PEG8-6 | 8 | 6 | 45 | 23 | 20 | 4.5 |
| PEG10-6 | 10 | 6 | 54 | 28.5 | 24 | 4 |
| PEG10-8 | 10 | 8 | 55 | 28.5 | 24 | 4 |
| PEG12-8 | 12 | 8 | 57 | 29.5 | 27 | 5 |
| PEG12-10 | 12 | 10 | 59 | 29.5 | 27 | 5 |
| PEG16-12 | 16 | 12 | 69 | 35 | 33 | 4 |
Available Models
The PEG Series includes a range of size combinations to accommodate various tubing diameters:
- PEG6-4
- PEG8-4, PEG8-6
- PEG10-6, PEG10-8
- PEG12-8, PEG12-10
- PEG16-12
Applications
Ideal for various pneumatic systems in:
- Industrial automation
- Manufacturing processes
- Automotive industry
- Food and beverage processing
- Packaging machinery
- Robotics
- General pneumatic applications requiring 3-way connections with size reduction
Benefits
- Quick and easy installation with push-in design
- Versatile use for connecting different tube sizes in a T-configuration
- Flexible positioning with adjustable tube direction after installation
- Wide range of models to meet various pneumatic piping needs
- Reduced downtime and maintenance costs
- Easy integration into existing pneumatic systems
- Lightweight yet durable plastic construction
Quality Assurance
Hered Pneumatic Co., LTD. ensures high-quality production and adherence to industry standards. Our PEG Series fittings are designed for reliable performance, excellent sealing, and long-lasting durability in various industrial environments.
For detailed sizing information, installation guidelines, or to place an order, please contact our customer support team.
