PB Series pneumatic fittings
Hered PB Series Three Way T Type Male Pneumatic Fittings: Versatile T-shaped connectors for pneumatic and hydraulic systems. Features push-to-connect design, compatible with PU/nylon tubing. Available in sizes PB4 to PB16, with thread options from M5 to R1/2″ NPT. Operates at 0°C-60°C with max pressure 1.32Mpa. Suitable for air and water applications, normal (0-0.9Mpa) and low pressure (-99.99-0Mpa) ranges. Constructed from durable plastic and copper materials. Ideal for industrial automation, manufacturing, fluid power systems, HVAC, and process control. Offers easy installation, excellent sealing, and long service life. Multiple sizing options ensure adaptability across various applications. Engineered for reliability and efficiency in demanding industrial environments. Perfect for industries requiring quick, versatile, and leak-free connections in T-shaped configurations. Provides optimal flow distribution and connection flexibility in pneumatic and hydraulic setups.
Product selection · Technical support · OEM & ODM
Product details

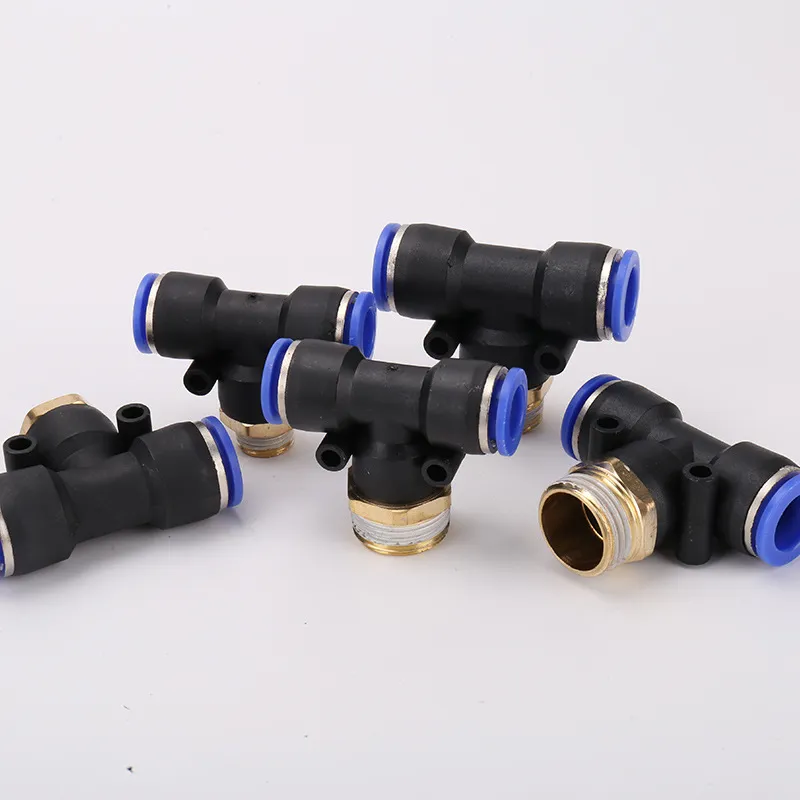

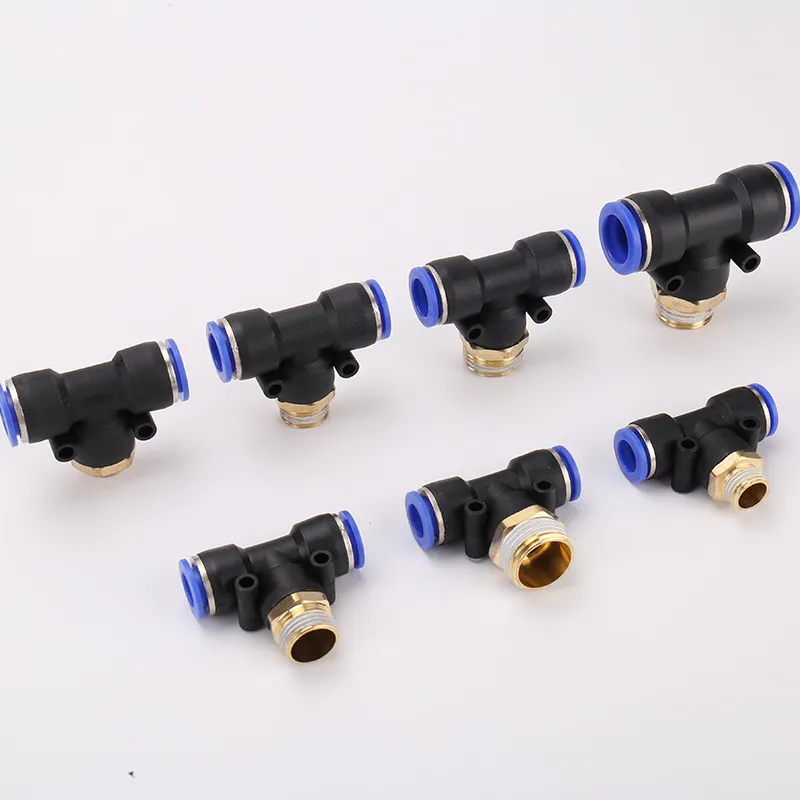

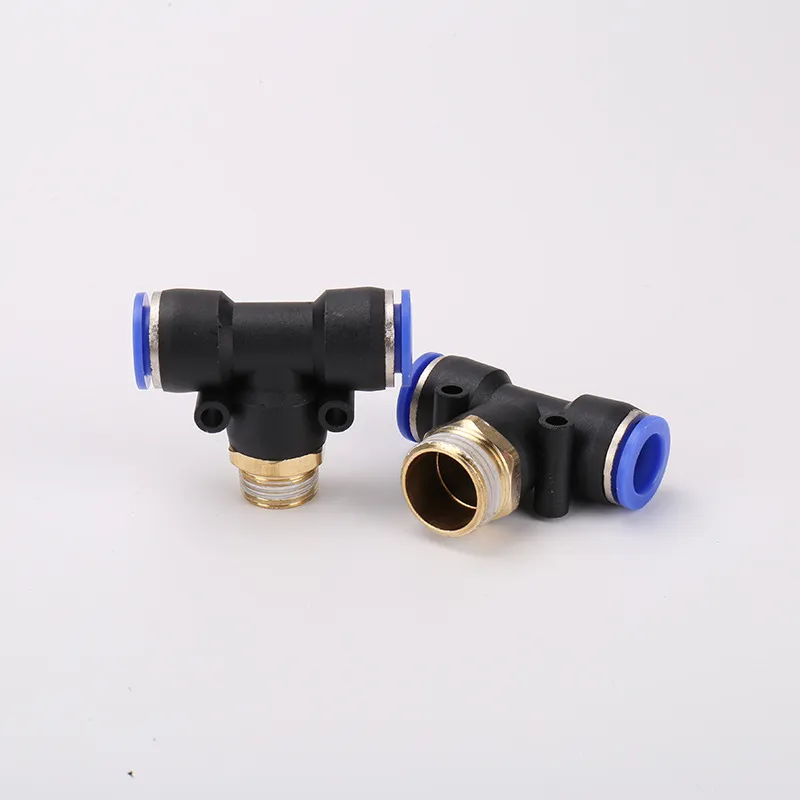

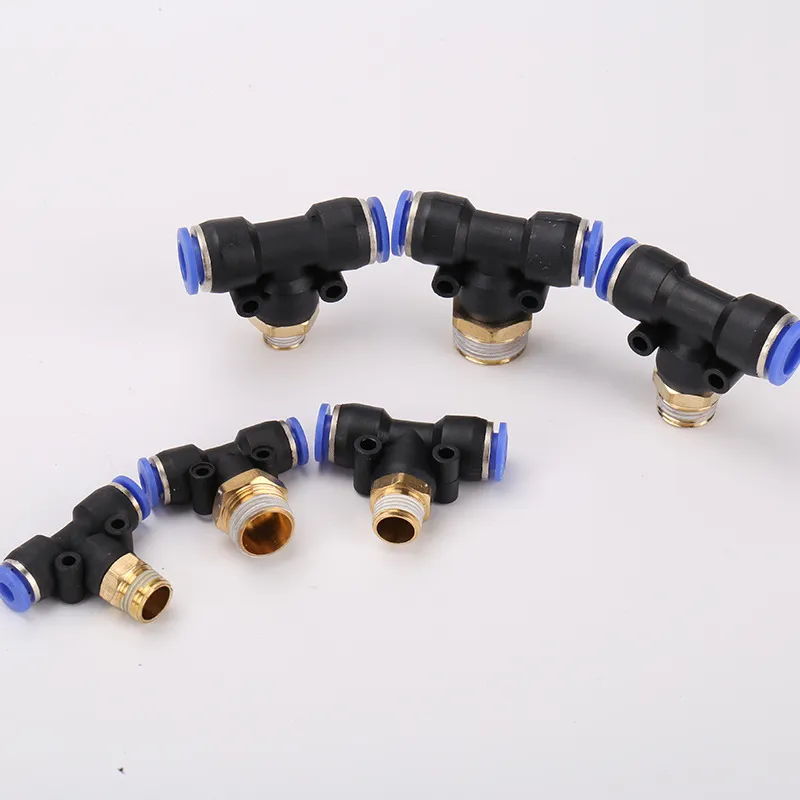

Hered PB Series Three Way T Type Male Pneumatic Fittings
The Hered PB Series Three Way T Type Male Pneumatic Fittings offer versatile and efficient solutions for pneumatic and hydraulic systems. These high-quality fittings feature a unique T-shape design, providing easy installation and reliable performance in various industrial applications.
Key Features
- Tee shape push-to-connect design for easy installation
- Compatible with PU and nylon tubing
- Available in various sizes and thread options
- Suitable for both air and water applications
- Excellent sealing performance
- Long service life
- Made from durable plastic and copper materials
Technical Specifications
| Parameter | Specification |
|---|---|
| Fluid | Air, Water |
| Max. Pressure | 1.32Mpa (13.5kgf/cm²) |
| Normal Pressure Range | 0~0.9Mpa (0~9.2kgf/cm²) |
| Low Pressure Range | -99.99~0Mpa (-750~0mmHg) |
| Operating Temperature | 0°C ~ 60°C |
| Applicable Tube | PU/Nylon tube |
| Thread Sizes | 1/8″, 1/4″, 3/8″, 1/2″ NPT |
| Body Material | Plastic and Copper |
| Inch Type | Metric Type | φD | R | A | B | E | H2 | φd |
| PB5/32-M5 | PB4-M5 | 4 | M5 | 4.5 | 25.4 | 18.6 | 10 | / |
| PB5/32-01 | PB4-01 | 4 | R1/8 | 7 | 25.4 | 18.6 | 10 | / |
| PB5/32-02 | PB4-02 | 4 | R1/4 | 9 | 27.6 | 18.6 | 14 | / |
| PB1/4-M5 | PB6-M5 | 6 | M5 | 4.5 | 26.8 | 20.8 | 12 | 3.5 |
| PB1/4-01 | PB6-01 | 6 | R1/8 | 6.5 | 37.6 | 20.8 | 12 | 3.5 |
| PB1/4-02 | PB6-02 | 6 | R1/4 | 9 | 30 | 20.8 | 14 | 3.5 |
| PB1/4-03 | PB6-03 | 6 | R3/8 | 10 | 30.6 | 20.8 | 17 | 3.5 |
| PB1/4-04 | PB6-04 | 6 | R1/2 | 10 | 32.5 | 20.8 | 21 | 3.5 |
| PB5/16-01 | PB8-01 | 8 | R1/8 | 8 | 31.5 | 20.9 | 14 | 4.5 |
| PB5/16-02 | PB8-02 | 8 | R1/4 | 10 | 33 | 20.9 | 14 | 4.5 |
| PB5/16-03 | PB8-03 | 8 | R3/8 | 10 | 33.6 | 20.9 | 17 | 4.5 |
| PB5/16-04 | PB8-04 | 8 | R1/2 | 11 | 35 | 20.9 | 21 | 4.5 |
| PB3/8-01 | PB10-01 | 10 | R1/8 | 8 | 37 | 27.8 | 17 | 4 |
| PB3/8-02 | PB10-02 | 10 | R1/4 | 10 | 38 | 27.8 | 17 | 4 |
| PB3/8-03 | PB10-03 | 10 | R3/8 | 10 | 38 | 27.8 | 17 | 4.5 |
| PB3/8-04 | PB10-04 | 10 | R1/2 | 11 | 39 | 27.8 | 21 | 4.5 |
| PB1/2-01 | PB12-01 | 12 | R1/8 | 8 | 37.5 | 29.5 | 19 | 5 |
| PB1/2-02 | PB12-02 | 12 | R1/4 | 10 | 40 | 29.5 | 19 | 5 |
| PB1/2-03 | PB12-03 | 12 | R3/8 | 10 | 40 | 29.5 | 19 | 5 |
| PB1/2-04 | PB12-04 | 12 | R1/2 | 11 | 41 | 29.5 | 21 | 5 |
| PB14-03 | 14 | R3/8 | 11 | 46.3 | 34.5 | 24 | 4 | |
| PB14-04 | 14 | R1/2 | 12 | 47.3 | 34.5 | 27 | 4 |

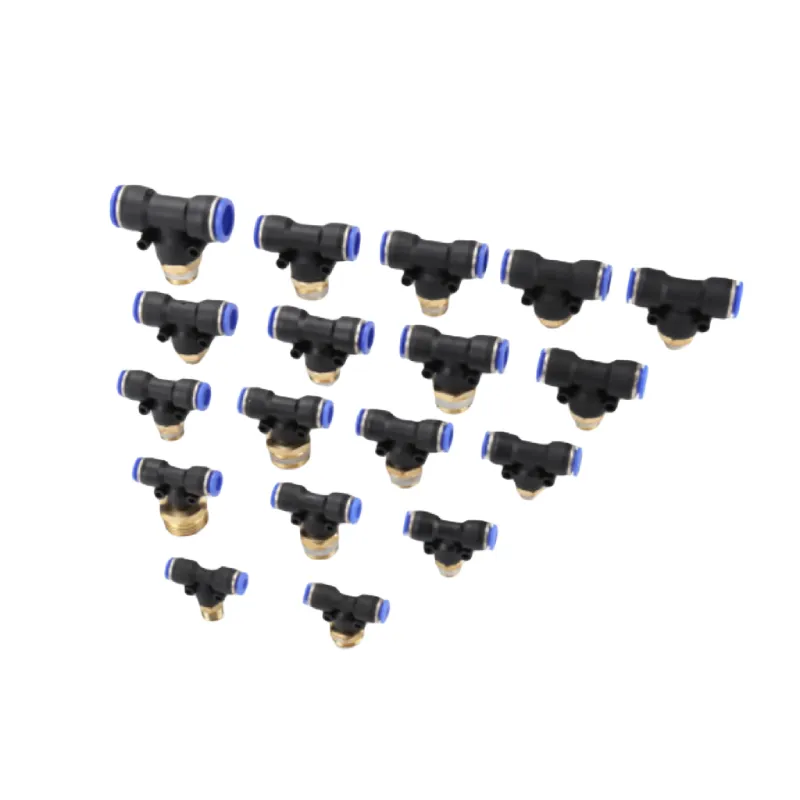

Available Models
The PB Series includes a wide range of sizes to accommodate various tubing diameters:
- PB4 (4mm), PB6 (6mm), PB8 (8mm)
- PB10 (10mm), PB12 (12mm), PB14 (14mm), PB16 (16mm)
Each size is available with different thread options (M5, R1/8″, R1/4″, R3/8″, R1/2″) to suit your specific application needs.
Applications
Ideal for various pneumatic and hydraulic systems in:
- Industrial automation
- Manufacturing processes
- Fluid power systems
- HVAC applications
- Process control equipment
Quality Assurance
Hered Pneumatic Co., LTD. ensures high-quality production and adherence to international standards. Our PB Series fittings are designed for easy installation, reliable performance, and long-lasting durability in demanding industrial environments.
For detailed sizing information, installation guidelines, or to place an order, please contact our customer support team.
