HVFF series pneumatic fittings
Hered HVFF Series Plastic Air Flow Regulating Male Speed Controller Hand Valve Pneumatic Fittings: Versatile air pressure control solution for pneumatic systems. Features precise on/off control, automatic pressure release, and male thread connection. Available in sizes HVFF-4 to HVFF-12, compatible with 4mm to 12mm tubing. Operates at 0°C-60°C with max pressure 1.32Mpa. Suitable for air applications in normal (0-0.9Mpa) and low pressure (-99.99-0Mpa) ranges. Compatible with PU and Nylon tubing. Ideal for industrial automation, manufacturing, automotive, food processing, packaging, and robotics industries. Offers efficient control, enhanced safety, and durable plastic construction. Perfect for applications requiring precise air flow regulation in diverse pneumatic setups. Combines reliability with user-friendly design for optimal performance in demanding industrial environments. Engineered for long-lasting operation and improved system safety, ensuring reduced maintenance time and costs in various pneumatic applications.
Product selection · Technical support · OEM & ODM
Product details

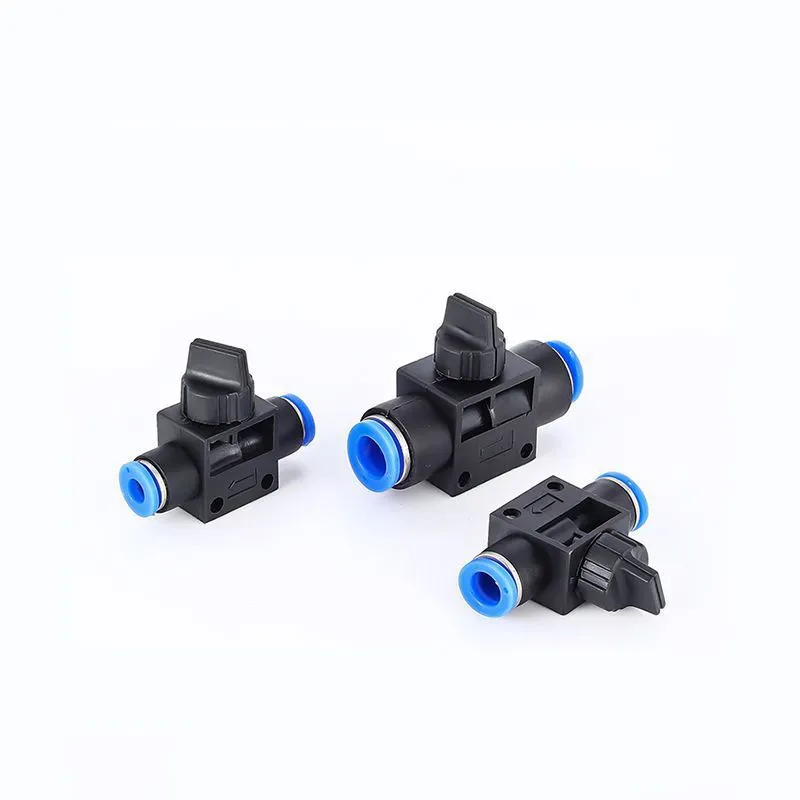

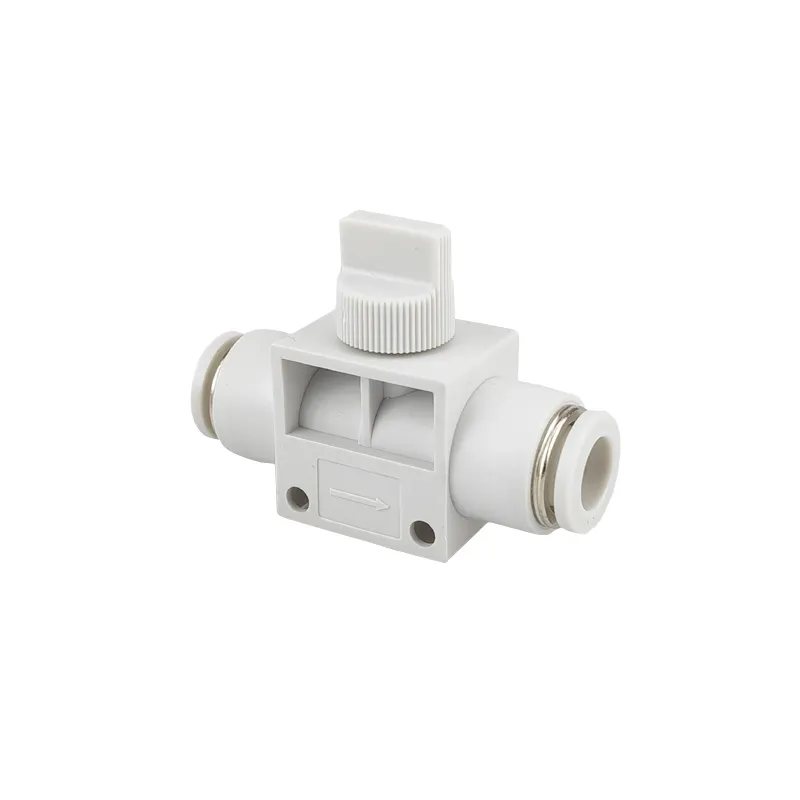

Hered HVFF Series Plastic Air Flow Regulating Male Speed Controller Hand Valve Pneumatic Fittings
The Hered HVFF Series offers a versatile solution for controlling air pressure in pneumatic systems. These hand valve fittings provide efficient on/off control and automatic pressure release, ensuring safe and reliable operation in various industrial applications.
Key Features
- Precise on/off control for pneumatic devices
- Automatic pressure release function for safety
- Male thread connection for easy installation
- Durable plastic construction
- Compatible with PU and Nylon tubing
- Wide range of sizes available
- Designed for air flow applications
Technical Specifications
| Parameter | Specification |
|---|---|
| Fluid | Air |
| Max. Pressure | 1.32Mpa (13.5kgf/cm²) |
| Normal Pressure Range | 0~0.9Mpa (0~9.2kgf/cm²) |
| Low Pressure Range | -99.99~0Mpa (-750~0mmHg) |
| Operating Temperature | 0°C ~ 60°C |
| Tube Outer Diameters | 4mm, 6mm, 8mm, 10mm, 12mm |
| Metric Type | ΦD1 | ΦD2 | A | L | S | F | J | G |
| HVFF-4 | 4 | 4 | 20 | 53 | 11.5 | 30 | 22 | 4 |
| HVFF-6 | 6 | 6 | 20 | 54 | 11.5 | 30 | 22 | 4 |
| HVFF-8 | 8 | 8 | 20 | 55 | 11.5 | 30 | 22 | 4 |
| HVFF-10 | 10 | 10 | 21 | 69 | 11.5 | 34 | 26 | 4 |
| HVFF-12 | 12 | 12 | 28 | 78 | 16 | 37 | 32 | 4 |
Available Models
The HVFF Series includes a range of sizes to accommodate various tubing diameters:
- HVFF-4
- HVFF-6
- HVFF-8
- HVFF-10
- HVFF-12
Unique Safety Feature
When the cap is turned off, any remaining air pressure in the outlet end is automatically released through the cap. This feature protects pipeline and equipment instruments, ensuring safe maintenance operations.
Applications
Ideal for various pneumatic systems in:
- Industrial automation
- Manufacturing processes
- Automotive industry
- Food and beverage processing
- Packaging machinery
- Robotics
- General pneumatic applications requiring precise air flow control
Benefits
- Efficient on/off control for pneumatic devices
- Enhanced safety with automatic pressure release
- Easy installation with male thread connection
- Versatile use with various tube sizes
- Durable construction for long-lasting performance
- Improved system reliability and safety
- Reduced maintenance time and costs
Quality Assurance
Hered Pneumatic Co., LTD. ensures high-quality production and adherence to industry standards. Our HVFF Series fittings are designed for reliable performance, safety, and versatility in various industrial environments.
For detailed sizing information, installation guidelines, or to place an order, please contact our customer support team.
