Product Overview

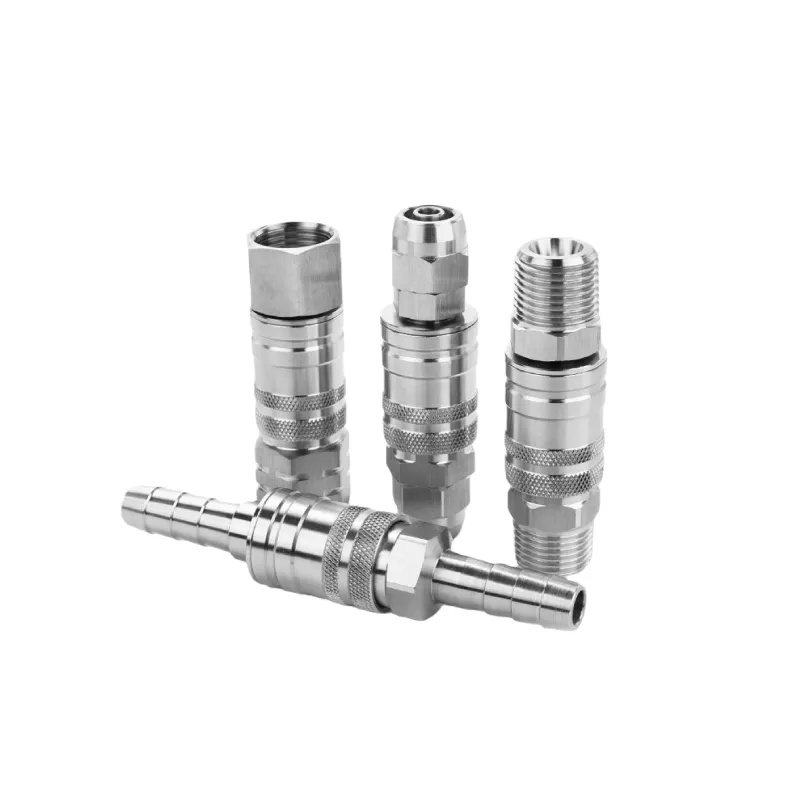

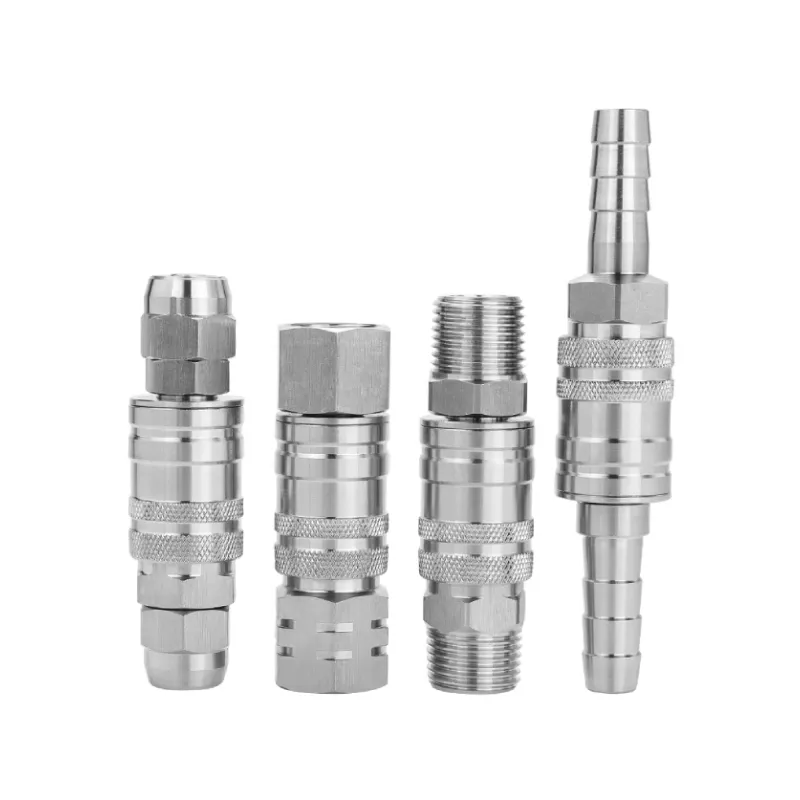

Hered’s Self Lock C-Type Quick Connect Fittings, including the SP, PP, SM, PM, SH, PH, SF, and PF series, are advanced connectors designed for efficient and secure connections in pneumatic and fluid systems. These fittings offer a unique self-locking mechanism that ensures reliable performance in various industrial applications.
Key Specifications
| Feature | Specification |
|---|---|
| Material | Stainless steel or zinc-plated steel |
| Design | C-type connectors with self-locking mechanism |
| Working Pressure | Up to 0.9 MPa (130 psi) |
| Temperature Range | 0°C to 60°C (32°F to 140°F) |
Series Description
- SP Series: Socket-nut connector
- PP Series: Plug-nut connector
- SM Series: Male threaded socket connector
- PM Series: Male plug connector
- SH Series: Socket-female connector
- PH Series: Plug-female connector
- SF Series: Socket-female connector
- PF Series: Plug-female connector
Model
Key Features
- Self-Locking Mechanism: Prevents accidental disconnections during operation.
- Durable Construction: Made from high-quality materials for long-lasting performance.
- Corrosion Resistance: Suitable for use in various industrial environments.
- Versatile Connection Types: Multiple series available to suit different system requirements.
- High Pressure Capacity: Rated for use in systems up to 0.9 MPa.
- Wide Temperature Range: Performs efficiently in various environmental conditions.
Applications
Hered’s Self Lock C-Type Quick Connect Fittings are ideal for use in:
- Pneumatic systems
- Air compressor setups
- Automated machinery
- Assembly lines
- Fluid transfer systems
- Industrial manufacturing processes
Benefits
- Enhances safety with secure, self-locking connections
- Improves efficiency in system assembly and maintenance
- Reduces downtime caused by accidental disconnections
- Offers flexibility with multiple connection types
- Provides reliable performance in high-vibration environments
- Ensures longevity with corrosion-resistant materials
Installation Tips
For optimal performance of Hered Self Lock C-Type Quick Connect Fittings:
- Ensure proper alignment when connecting fittings
- Verify that the self-locking mechanism is engaged after connection
- Use appropriate tools for installation to avoid damage
- Regularly inspect fittings for signs of wear or damage
- Follow manufacturer guidelines for specific series installation requirements
Hered’s Self Lock C-Type Quick Connect Fittings represent a significant advancement in pneumatic and fluid connection technology. Their robust design, versatile series options, and innovative self-locking feature make them essential components for businesses seeking to enhance the safety, efficiency, and reliability of their industrial systems.
