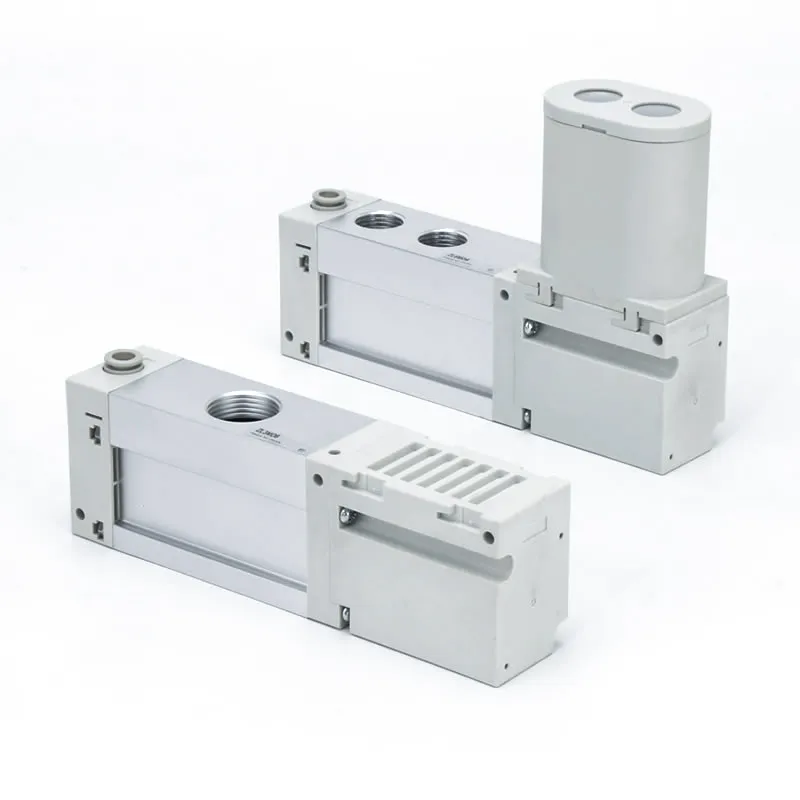

Hered ZL3/ZL6 Series Multistage Ejectors

Overview

The Hered ZL3 and ZL6 Series Multistage Ejectors are high-performance vacuum generators designed for efficient material handling in industrial applications. These innovative ejectors offer superior suction flow rates, significant energy savings, and compact designs, making them ideal for a wide range of automation processes.

Key Features

  • 3-Stage Diffuser Construction: Enhances efficiency and performance
  • Energy Efficient: Up to 90% reduction in air consumption
  • Compact Design: Up to 60% weight reduction compared to previous models
  • High Performance: 250% increase in suction flow rate

Specifications

Series Nozzle Diameter (mm) Max. Vacuum Pressure (kPa) Max. Suction Flow (L/min) Air Consumption (L/min)
ZL3L 1.3 -75 280 105
ZL3H 1.5 -93 280 135
ZL3M 1.9 -91 280 150
ZL6L 1.3 x 2 -75 580 210
ZL6H 1.5 x 2 -93 580 270
ZL6M 1.9 x 2 -91 580 300

Applications

  • Workpiece adsorption and clamping
  • Automotive glass transfer
  • Cardboard and material handling
  • General industrial automation processes

Technical Advantages

  • High Suction Flow: Up to 580 L/min for efficient material handling
  • Energy Savings: Significantly reduced air consumption for lower operating costs
  • Versatile Installation: Flexible mounting options for various setups
  • Advanced Control: Optional pressure switches with IO-Link compatibility

Performance Highlights

  • Improved Efficiency: 3-stage diffuser design for superior performance
  • Space-Saving: Compact and lightweight design for easy integration
  • Operational Flexibility: Multiple models to suit various application requirements
  • Cost-Effective: Reduced energy consumption for long-term savings

The Hered ZL3/ZL6 Series Multistage Ejectors represent a significant advancement in vacuum generation technology. Their innovative design combines high performance with energy efficiency, making them an ideal choice for modern industrial automation systems. These ejectors are particularly valuable in applications requiring precise material handling, offering both powerful suction capabilities and reduced operational costs.
