Hered SFT Series Vacuum Suction Cups
Hered SFT Series Vacuum Suction Cups: Specialized pneumatic accessories for precise, gentle material handling. Available in diameters from 15mm to 40mm, ideal for various workpiece shapes and sizes. Features non-mark absorption even at high temperatures and large inner support to prevent wrinkles in paper and plastic film handling. Offered in multiple configurations including insertion type and threaded connections (M5, G1/8, G1/4). Suitable for plastic film, paper, wood sheet, and solar wafer applications. Key advantages include mark-free handling, temperature resistance, wrinkle prevention, and versatility for delicate materials. Technical highlights: size variability for diverse workpieces, high-temperature performance, and specialized design for optimal material handling. Choose Hered SFT Series for reliable, gentle vacuum gripping in sensitive industrial applications. Models include SFT15, SFT20, SFT24, SFT30, SFT34, SFT35, and SFT40, with various mounting options. Contact Hered Pneumatic for expert guidance on selecting the optimal suction cup configuration for your specific material handling needs in precision pneumatic systems.
Product selection · Technical support · OEM & ODM
Product details

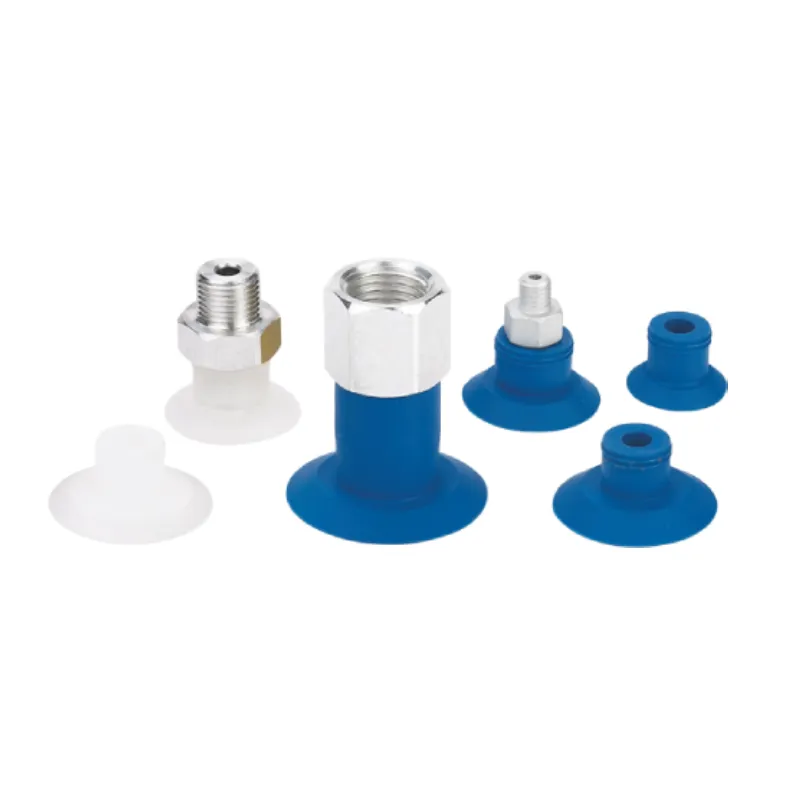

Hered SFT Series Vacuum Suction Cups
Features
- Various sizes available for workpieces of different shapes and sizes
- Non-mark absorption achieved even in high temperature
- Large inner support to avoid wrinkles while handling paper and plastic film
- Diameter range: 15 mm to 40 mm
Dimension
| 型号 | ΦD | H | Φd | Φd1 | h1 | Φd2 | H1 | Y | G | S |
|---|---|---|---|---|---|---|---|---|---|---|
| SFT15 | 14.5 | 10 | 9 | 4.5 | 7.2 | 3.5 | – | 0.9 | – | – |
| SFT15-M5M | 14.5 | 20 | – | – | 5 | 2.5 | 10 | 0.9 | M5 | 7 |
| SFT15-G1/8F | 14.5 | 22 | – | – | 8 | 3.5 | 12 | 0.9 | G1/8 | 14 |
| SFT15-G1/8M | 14.5 | 23.5 | – | – | 7.5 | 3.5 | 13.5 | 0.9 | G1/8 | 14 |
| SFT20 | 20.9 | 10.4 | 10.5 | 4.5 | 7.2 | 3.5 | – | 1.5 | – | – |
| SFT20-M5M | 20.9 | 20.4 | – | – | 8 | 2.5 | 10 | 1.5 | M5 | 7 |
| SFT20-G1/8F | 20.9 | 22.4 | – | – | 7.5 | 3.5 | 12 | 1.5 | G1/8 | 14 |
| SFT20-G1/8M | 20.9 | 23.9 | – | – | 4.5 | 3.5 | 13.5 | 1.5 | G1/8 | 14 |
| SFT24 | 24.4 | 10.8 | 10 | 4.5 | 7.2 | 3.5 | – | 1.7 | – | – |
| SFT24-M5M | 24.4 | 20.8 | – | – | 8 | 2.5 | 10 | 1.7 | M5 | 7 |
| SFT24-G1/8F | 24.4 | 22.8 | – | – | 7.5 | 3.5 | 12 | 1.7 | G1/8 | 14 |
| SFT24-G1/8M | 24.4 | 24.3 | – | – | 4.5 | 3.5 | 13.5 | 1.7 | G1/8 | 14 |
| SFT30 | 30.6 | 22.2 | 15.6 | 11.2 | 15.7 | 6.6 | – | 2.0 | – | – |
| SFT30-G1/4F | 30.6 | 37.2 | – | – | 10 | 5.5 | 15 | 2.0 | G1/4 | 17 |
| SFT30-G1/4M | 30.6 | 37.2 | – | – | 10 | 5.5 | 15 | 2.0 | G1/4 | 17 |
| SFT34 | 34.5 | 23 | 14.8 | 11.2 | 16.8 | 5.8 | – | 2.0 | – | – |
| SFT34-G1/4F | 34.5 | 38 | – | – | 10 | 5.5 | 15 | 1.4 | G1/4 | 17 |
| SFT34-G1/4M | 34.5 | 38 | – | – | 10 | 5.5 | 15 | 1.4 | G1/4 | 17 |
| SFT35 | 35 | 23.5 | 16.5 | 10 | 14.8 | 5.4 | – | 1.4 | – | – |
| SFT35-G1/4F | 35 | 38.5 | – | – | 10 | 5.5 | 15 | 0.5 | G1/4 | 17 |
| SFT35-G1/4M | 35 | 38.5 | – | – | 10 | 5.5 | 15 | 0.5 | G1/4 | 17 |
| SFT40 | 40.5 | 20.6 | 16 | 8 | 14.5 | 5.0 | – | 0.5 | – | – |
| SFT40-G1/8M | 40.5 | 34.1 | – | – | 7.5 | 3.5 | 13.5 | 2.3 | G1/8 | 17 |
| SFT40-G1/4F | 40.5 | 35.6 | – | – | 10 | 5.5 | 15 | 2.3 | G1/4 | 17 |
| SFT40-G1/4M | 40.5 | 35.6 | – | – | 10 | 5.5 | 15 | 2.3 | G1/4 | 17 |
Applications
- Plastic film
- Paper
- Wood sheet
- Solar wafer
Key Advantages
- Mark-Free Handling: Ideal for sensitive surfaces
- Temperature Resistant: Effective in high-temperature environments
- Wrinkle Prevention: Large inner support for smooth material transfer
- Versatility: Suitable for various delicate materials
Technical Highlights
| Feature | Benefit |
|---|---|
| Size Variability | Accommodates diverse workpiece dimensions |
| High-Temperature Performance | Maintains effectiveness in demanding conditions |
| Specialized Design | Optimized for delicate material handling |
The Hered SFT Series Vacuum Suction Cups offer a specialized solution for industries requiring precise and gentle material handling. Their unique design features ensure reliable performance across various applications, particularly in sectors dealing with sensitive materials like plastic films, paper, and solar wafers.
