Y type and I type joint cylinder accessories
Hered Y Type and I Type Joint Cylinder Accessories: Precision-engineered mounting components for pneumatic cylinders. Compliant with ISO standards for wide compatibility. Available in Y and I configurations for diverse mounting needs. Suitable for cylinder bore sizes ranging from 32mm to 200mm. Constructed from high-grade materials for durability in industrial environments. Ideal for automation systems, material handling, robotics, and manufacturing processes. Offers enhanced flexibility, improved stability, and versatile mounting options. Engineered for precise alignment and smooth cylinder operation. Provides secure attachment while allowing necessary movement. Suitable for applications requiring adjustable cylinder orientations. Easy installation and minimal maintenance for optimal performance. Available in multiple sizes to fit specific cylinder models. Customization options for unique requirements. Enhances operational efficiency and adaptability in automated systems. Standardized design ensures easy integration across various pneumatic setups. Backed by Hered Pneumatic’s expert technical support and after-sales service. Ideal for industries seeking high-quality, versatile pneumatic cylinder mounting solutions that improve system performance and reliability while ensuring standard compliance.
Product selection · Technical support · OEM & ODM
Product details
Y Type and I Type Joint Cylinder Accessories
Hered Pneumatic Co., LTD. offers high-quality Y Type and I Type Joint cylinder accessories designed for versatile mounting and connection of pneumatic cylinders. These accessories provide flexibility and stability in various industrial applications, enhancing the functionality and efficiency of pneumatic systems.

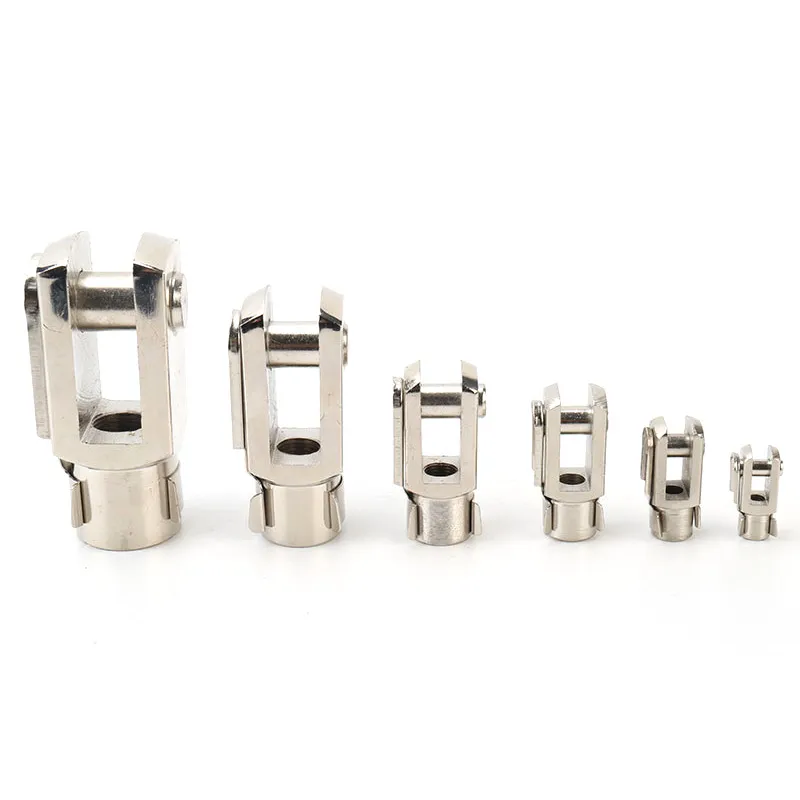

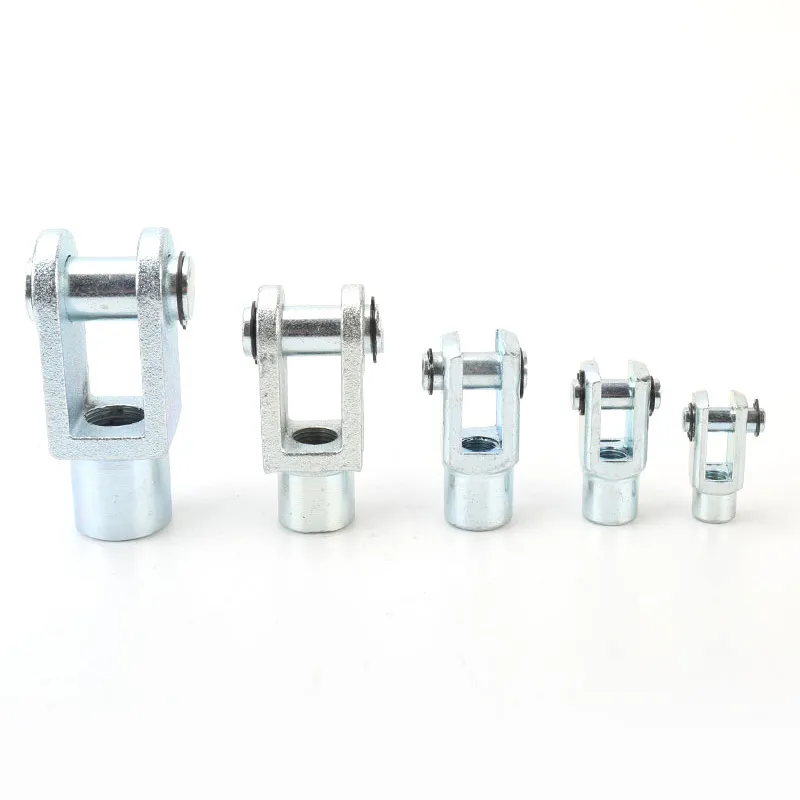

Y Type Joint Features
- Y-shaped configuration for multiple connection points
- Allows for angular movement and alignment adjustments
- Compatible with ISO 15552 and ISO 6431 pneumatic cylinders
- Suitable for bore sizes from 32mm to 160mm
- Ideal for applications requiring flexible cylinder positioning

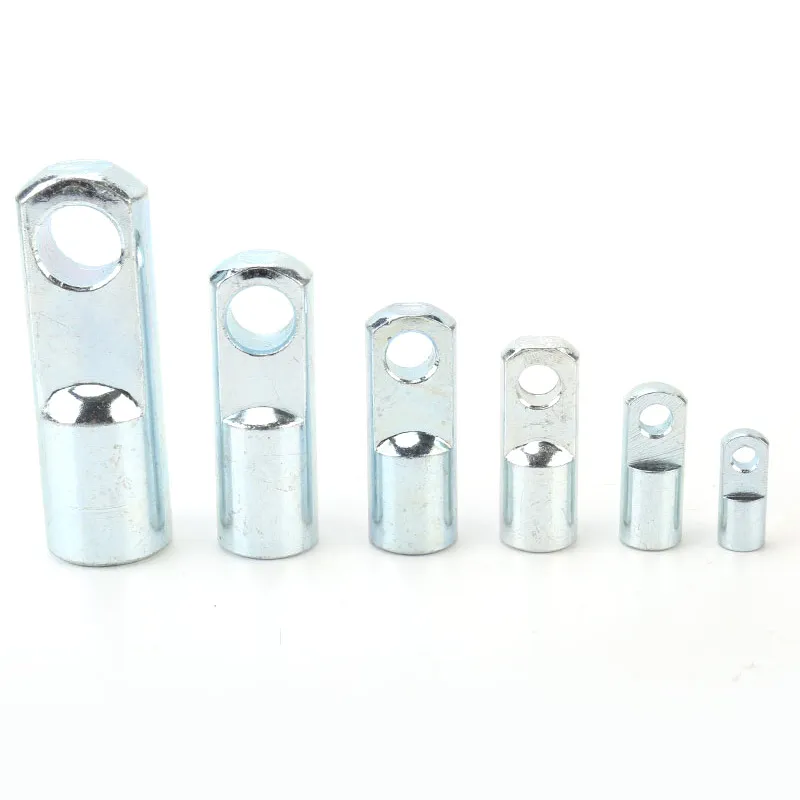

I Type Joint Features
- Straight, linear configuration for rigid connections
- Provides precise linear movement
- Compatible with various ISO standard pneumatic cylinders
- Ensures secure fit and stable operation
- Perfect for applications demanding exact linear control
Technical Specifications
| Bore Sizes Available | 32mm, 40mm, 50mm, 63mm, 80mm, 100mm, 125mm, 160mm, 200mm |
|---|---|
| Material | High-grade aluminum alloy (standard), other materials available upon request |
| Standards Compliance | ISO 15552, ISO 6431 |
Dimensions
Key dimensions for various bore sizes (all measurements in mm):
| Bore | 32 | 40 | 50 | 63 | 80 | 100 | 125 | 160 | 200 |
|---|---|---|---|---|---|---|---|---|---|
| NA | 19 | 25.4 | 32 | 32 | 44.4 | 44.4 | 55 | 80 | 80 |
| NB | 20 | 24 | 32 | 32 | 40 | 40 | 45 | 54 | 54 |
| NC | 10 | 12 | 16 | 16 | 20 | 20 | 25 | 30 | 30 |
| ND | 40 | 48 | 64 | 64 | 80 | 80 | 110 | 120 | 120 |
Please refer to the full dimension table for additional measurements.
Applications
Y Type Joint
- Automation systems requiring flexible cylinder positioning
- Material handling equipment with angular movement needs
- Machinery with complex motion requirements
I Type Joint
- Conveyor systems demanding precise linear movement
- Robotic arms and linear actuators
- Manufacturing equipment with straight-line operations
Benefits
- Enhanced Flexibility: Y Type joints allow for multiple connection configurations
- Precise Control: I Type joints ensure accurate linear movements
- Versatile Mounting: Both types accommodate various installation requirements
- Improved System Efficiency: Optimizes pneumatic cylinder performance in different applications
- Durable Construction: High-quality materials ensure long-lasting operation
Installation
Both Y Type and I Type joints are designed for straightforward installation. Align the joint with the cylinder’s mounting points and secure it using the appropriate fasteners. Refer to the installation guide for detailed instructions specific to your cylinder model and application.
Maintenance
These accessories require minimal maintenance. Regular inspection for wear, proper alignment, and fastener tightness is recommended to ensure optimal performance and longevity.
Customization Options
Hered Pneumatic offers customization for specific requirements beyond our standard range. Contact our engineering team for tailored solutions to meet your unique application needs.
Quality Assurance
All Y Type and I Type joint accessories undergo rigorous quality control measures to ensure consistent performance and compliance with relevant industry standards.
Ordering Information
When ordering, please specify the joint type (Y or I), cylinder bore size, and any specific requirements. Refer to our product catalog or contact our sales team for detailed ordering information and part numbers.
Support and Service
Our team of pneumatic specialists is available to assist you with product selection, technical inquiries, and after-sales support. Contact Hered Pneumatic Co., LTD. today to learn how our Y Type and I Type joint cylinder accessories can enhance the flexibility and efficiency of your pneumatic systems.
