LB Foot Bracket ISO 6431 Standard Cylinder Accessories

Hered LB Foot Bracket Cylinder Accessories: Precision-engineered mounting components for pneumatic cylinders. Compatible with bore sizes 32mm to 200mm. Features robust construction for stability and durability in industrial environments. Designed for accurate alignment and vibration reduction. Ideal for automation systems, manufacturing equipment, and material handling machinery. Offers easy installation, enhanced stability, and improved safety in various industrial applications. Engineered for versatile mounting configurations and extended equipment life. Suitable for diverse pneumatic systems requiring secure cylinder support. High-grade steel construction ensures longevity and reliability. Available in multiple sizes to fit specific cylinder models. Customization options for unique requirements. Minimal maintenance with regular inspection recommended. Compliant with ISO standards and VDMA specifications. Enhances operational efficiency and safety in automated manufacturing processes. Backed by comprehensive technical support and after-sales service from Hered Pneumatic’s expert team. Perfect for industries seeking high-quality, adaptable pneumatic cylinder mounting solutions that improve system performance and longevity.

Send your requirements, we will quote for you within 12 hours

Tel:+8618066396588

LB Foot Bracket Cylinder Accessories

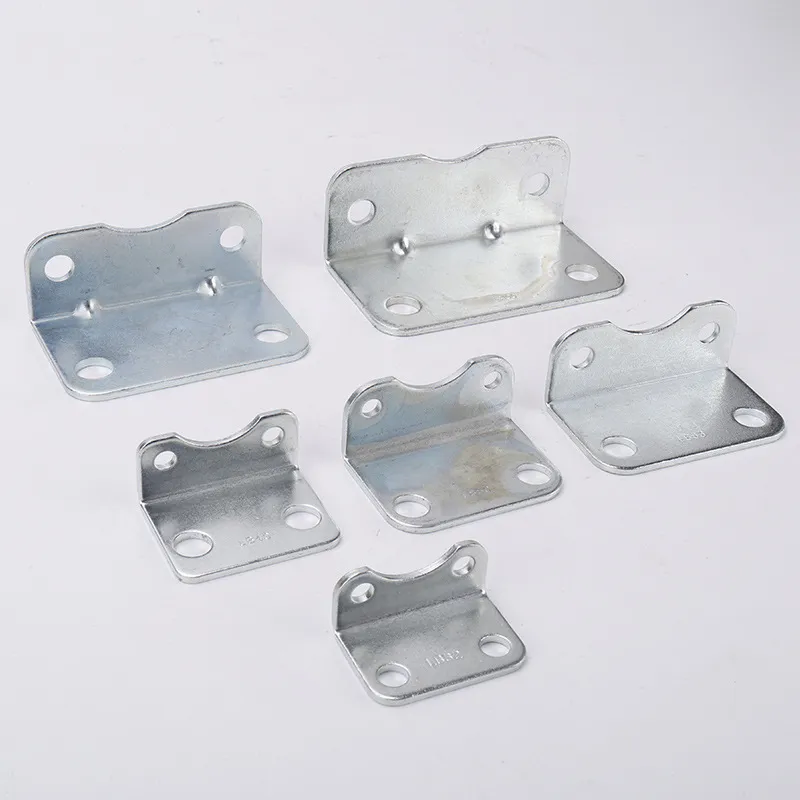

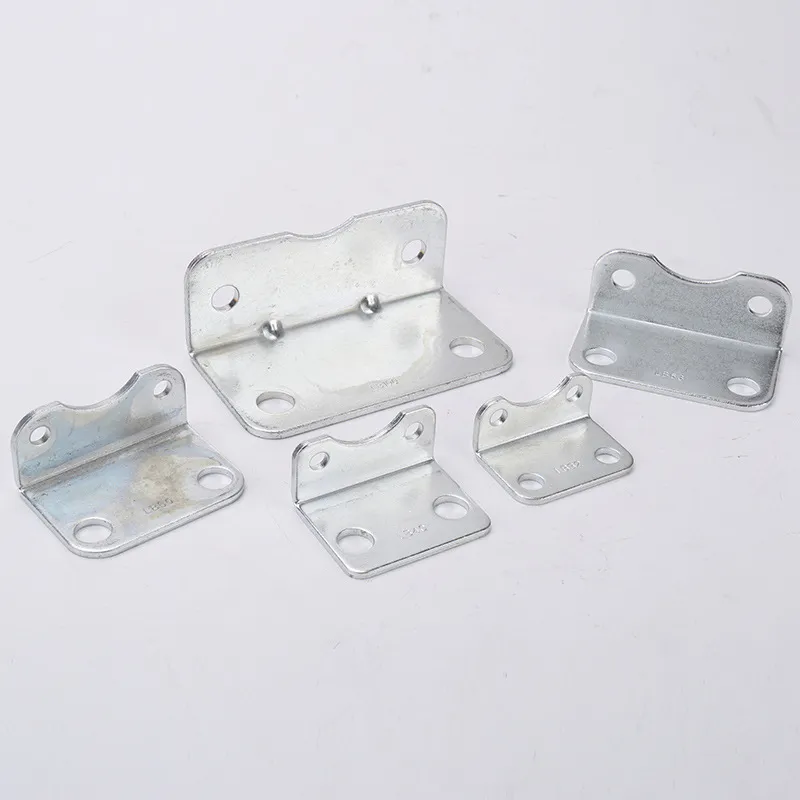

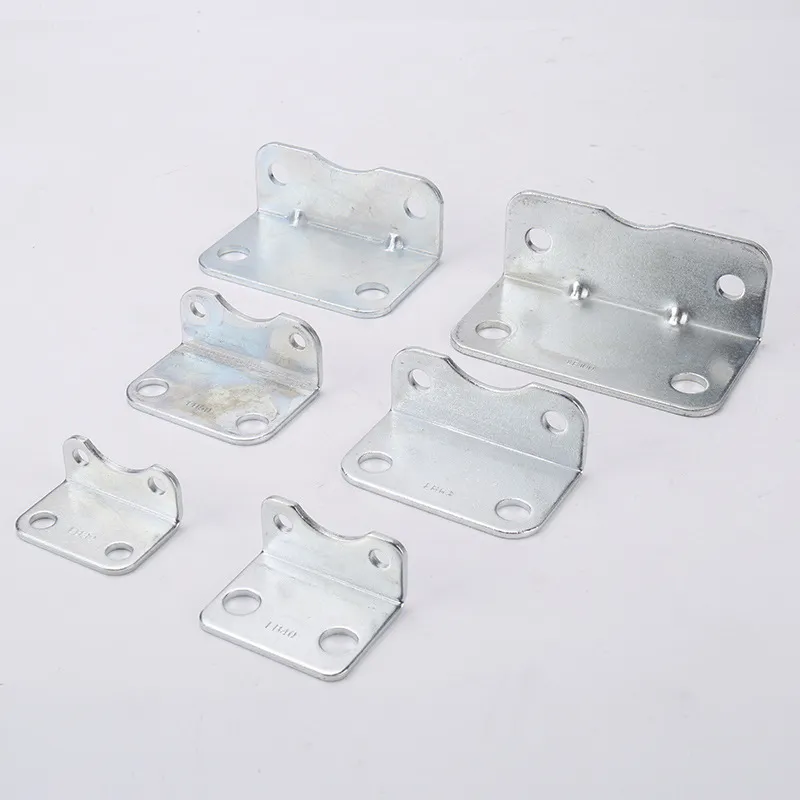

LB foot bracket cylinder accessories from Hered Pneumatic Co., LTD. are precision-engineered mounting components designed to provide robust support and stability for pneumatic cylinders. These accessories ensure secure attachment and proper alignment, enhancing the overall performance and longevity of pneumatic systems in various industrial applications.

Key Features

  • Versatile Compatibility: Suitable for cylinder bore sizes ranging from 32mm to 200mm
  • Robust Construction: Engineered for durability and stability in demanding industrial environments
  • Precision Design: Ensures accurate alignment and smooth cylinder operation
  • Easy Installation: Simplifies the mounting process for efficient setup and maintenance
  • Vibration Reduction: Helps minimize operational vibrations for improved performance

Technical Specifications

Bore Sizes Available 32mm, 40mm, 50mm, 63mm, 80mm, 100mm, 125mm, 160mm, 200mm
Material High-grade steel (standard), other materials available upon request
Compatibility ISO standards, VDMA specifications, and custom designs available

Dimensions

Please refer to the detailed dimension table provided for specific measurements across different bore sizes. Key dimensions include:

  • AA: Overall length
  • AC: Mounting length
  • AE: Width
  • AF: Height
  • Other specific dimensions as detailed in the table

Applications

  • Automation systems
  • Manufacturing equipment
  • Material handling machinery
  • Packaging lines
  • Industrial robotics
  • Assembly stations

Benefits

  • Enhanced Stability: Ensures consistent and reliable cylinder operation
  • Improved Safety: Securely mounts cylinders to prevent accidents and equipment damage
  • Versatile Mounting: Allows for various installation configurations
  • Extended Equipment Life: Reduces wear and tear on cylinders through proper support
  • Customizable Solutions: Available in various sizes and configurations to meet specific needs

Installation

LB foot brackets are designed for straightforward installation. Align the bracket with the cylinder’s mounting points and secure it using appropriate fasteners. Refer to the installation guide for detailed instructions specific to your cylinder model and application.

Maintenance

These accessories require minimal maintenance. Regular inspection for wear, proper alignment, and fastener tightness is recommended to ensure optimal performance and longevity.

Customization Options

Hered Pneumatic offers customization for specific requirements beyond our standard range. Contact our engineering team for tailored solutions to meet your unique application needs.

Quality Assurance

All LB foot bracket cylinder accessories undergo rigorous quality control measures to ensure consistent performance and compliance with relevant industry standards.

Ordering Information

When ordering, please specify the cylinder bore size and any specific requirements. Refer to our product catalog or contact our sales team for detailed ordering information and part numbers.

Support and Service

Our team of pneumatic specialists is available to assist you with product selection, technical inquiries, and after-sales support. Contact Hered Pneumatic Co., LTD. today to learn how our LB foot bracket cylinder accessories can enhance the stability and efficiency of your pneumatic systems.
