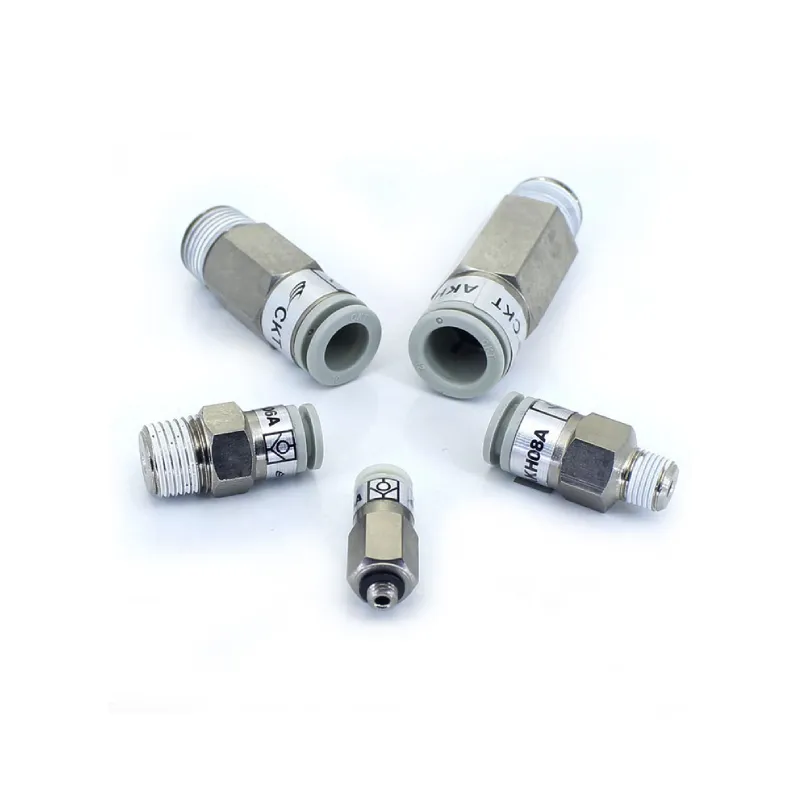

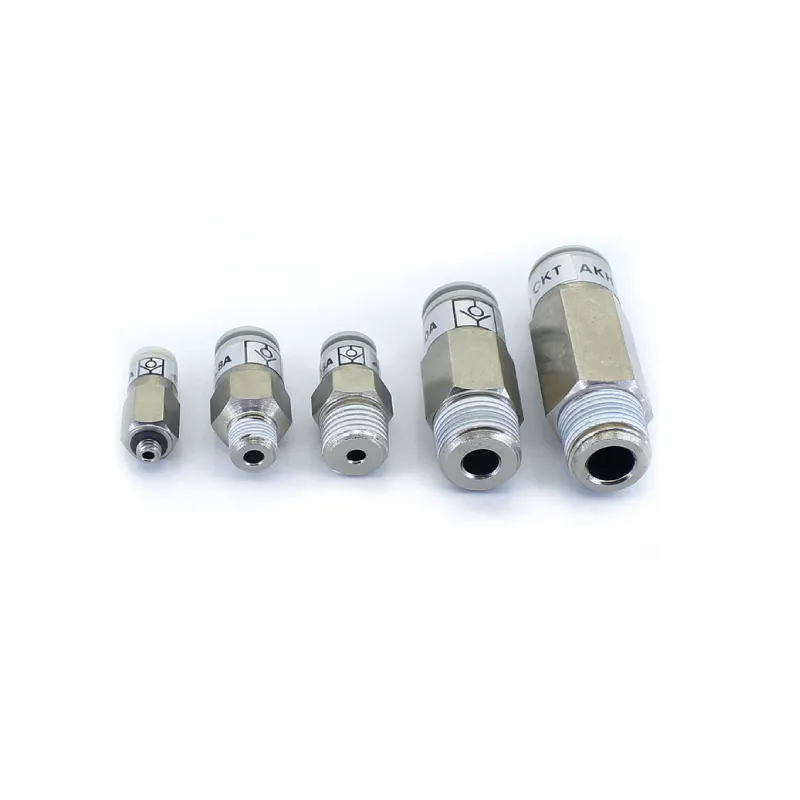

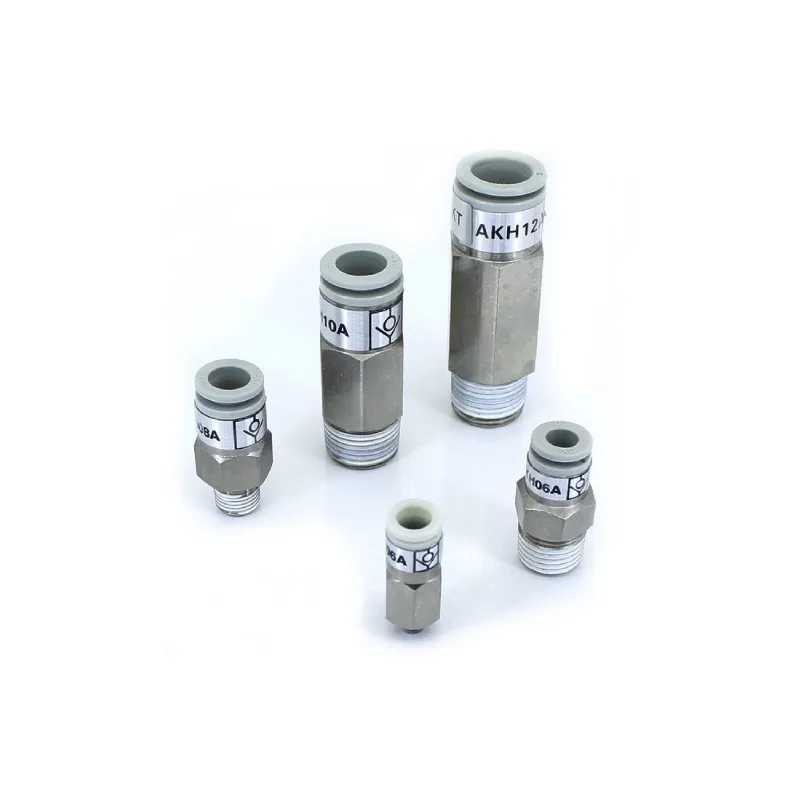

Hered AKH One Way Check Valve Series
Hered Pneumatic Co., LTD.’s AKH One Way Check Valve series offers versatile solutions for various pneumatic system designs. These compact and lightweight valves feature low burst pressure and are available in multiple configurations to meet diverse operating conditions.
Key Features
- High flow capacity
- Compact and lightweight design
- Available in various models
- Plug-in connector type for direct device mounting
- One-touch accessories for easy installation
- Low burst pressure
- Suitable for vacuum applications
- Straight-type design for pipe installation
- Bushing type (AKB) for coolant splash and spatter resistance
Specifications
- Port Sizes: M5, PT1/8, PT1/4, PT3/8, PT1/2
- Available in A-type (quick joint to male thread) and B-type (male thread to quick joint)
Dimensions
Model | ΦD | R | L | A | H | |
A-type | B-type | |||||
AKH04-M5A | AKH04-M5B | 4 | M5 | 31.5 | 5 | 12 |
AKH04-01A | AKH04-01B | PT1/8 | 28.5 | 8 | 12 | |
AKH04-02A | AKH04-02B | PT1/4 | 28.5 | 8 | 14 | |
AKH06-01A | AKH06-01B | 6 | PT1/8 | 31 | 8 | 14 |
AKH06-02A | AKH06-02B | PT1/4 | 31 | 8 | 14 | |
AKH08-01A | AKH08-01B | 8 | PT1/8 | 30.5 | 8 | 15 |
AKH08-02A | AKH08-02B | PT1/4 | 30.5 | 8 | 15 | |
AKH08-03A | AKH08-03B | PT3/8 | 30.5 | 10 | 17 | |
AKH10-02A | AKH10-02B | 10 | PT1/4 | 56.2 | 8 | 19 |
AKH10-03A | AKH10-03B | PT3/8 | 46.3 | 10 | 19 | |
AKH10-04A | AKH10-04B | PT1/2 | 47.2 | 10 | 21 | |
AKH12-02A | AKH12-02B | 12 | PT1/4 | 57 | 10 | 21 |
AKH12-03A | AKH12-03B | PT3/8 | 47 | 10 | 21 | |
AKH12-04A | AKH12-04B | PT1/2 | 47 | 10 | 21 |
Applications
- General pneumatic systems
- Vacuum applications
- Industrial automation
- Manufacturing processes
- Environments with coolant splash or spatter (AKB model)
Benefits
- Versatile design suitable for various pneumatic system requirements
- Easy installation and maintenance
- Enhances system efficiency and performance
- Durable construction for long-term reliability
For detailed specifications, model options, or customized solutions, please contact our technical support team. Our engineers are ready to assist you in selecting the optimal AKH One Way Check Valve for your specific pneumatic system needs.
