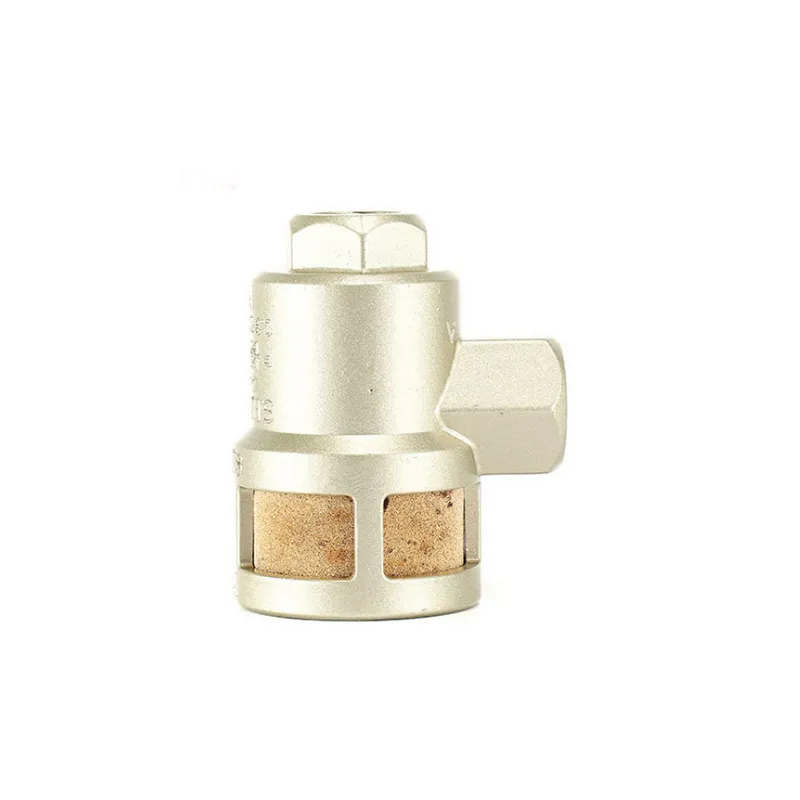

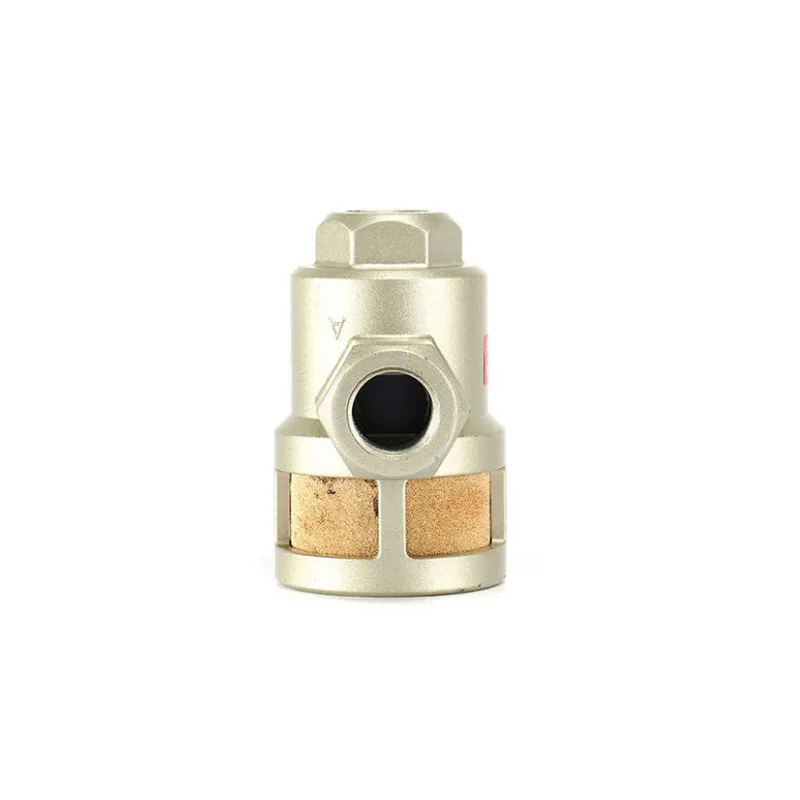

Quick Exhaust Valve SEU Series

Hered Quick Exhaust Valve SEU Series: High-performance valves for rapid air removal in water-based industrial pipelines. Available in SEU-02 (G1/4), SEU-03 (G3/8), and SEU-04 (G1/2) port sizes. Operates with compressed air at max 1.0MPa pressure and -5~60°C. Durable aluminum alloy body with NBR seals. Enhances efficiency of water conveyance equipment and protects pipelines. Ideal for heating systems, boilers, air conditioning, floor heating, and solar heating applications. 2/2 way normally closed design ensures efficient air exhaust and prevents backflow. Choose Hered SEU Series for reliable, rapid air removal in diverse industrial and HVAC systems. Contact Hered Pneumatic for expert guidance on selecting the optimal valve for your specific needs.

Send your requirements, we will quote for you within 12 hours

Tel:+8618066396588

Hered Quick Exhaust Valve SEU Series

Hered Pneumatic Co., LTD.’s SEU Quick Exhaust Valve is an essential component designed for rapid gas removal in industrial pipelines, particularly those using water as the medium. This valve significantly enhances the efficiency of water conveyance equipment and protects pipelines from deformation and cracking. The SEU series is widely applicable in various heating and cooling systems, including independent and central heating systems, heating boilers, central air conditioning, floor heating, and solar heating systems.

Key Features

  • Rapid exhaust of air in water-based industrial pipelines
  • Available in G1/2 port size
  • Durable aluminum alloy construction for long-lasting performance
  • NBR sealing elements for reliable operation
  • Wide operating temperature range: -5~60℃
  • High proof pressure rating: 15kgf/cm²
  • Suitable for various heating and cooling applications

Specifications

Parameter SEU-04
Working Medium Compressed Air
Effective sectional area (mm²) 106
Cv value 5.59
Port Size G1/2
Max. Operating Pressure 1.0MPa
Proof Pressure 1.5MPa
Operating temp. range -5~60℃
Body Material Aluminium Alloy
Sealing element NBR

Dimensions

Model A B C D
SEU-02 28 33 G1/4 42.5
SEU-03 38 60 G3/8 71
SEU-04 47.5 77.5 G1/2 90.5

Applications

  • Independent heating systems
  • Central heating systems
  • Heating boilers
  • Central air conditioning systems
  • Floor heating systems
  • Solar heating systems
  • Industrial pipelines requiring quick air removal

Working Principle

The SEU valve functions as a 2/2 way normally closed (NC) valve. When air pressure is applied to the inlet port, the valve opens, allowing air to flow through. Upon removal of the pressure, the valve closes, trapping the air and preventing backflow. This mechanism ensures efficient and rapid exhaust of air from the system, improving overall performance and protecting the pipeline.

Benefits

  • Enhances efficiency of water conveyance equipment
  • Protects pipelines from deformation and cracking
  • Improves system response time and performance
  • Suitable for a wide range of heating and cooling applications
  • Robust aluminum alloy construction ensures long-term durability in industrial environments
  • Simple structure facilitates easy installation and maintenance

Hered Pneumatic Co., LTD.’s Quick Exhaust Valve SEU Series offers an efficient and reliable solution for rapid air removal in water-based industrial pipelines and various heating and cooling systems. The durable construction, high-performance characteristics, and versatile design make these valves an excellent choice for a wide range of applications. Whether you’re optimizing existing equipment or designing new systems, the SEU Series provides the speed and reliability needed in today’s demanding industrial and HVAC environments.

For additional technical specifications, detailed product catalogs, or customized solutions tailored to your specific requirements, please don’t hesitate to reach out to our technical support team. Our experienced engineers are ready to assist you in selecting the optimal components for your systems, ensuring maximum efficiency and performance in your operations.
