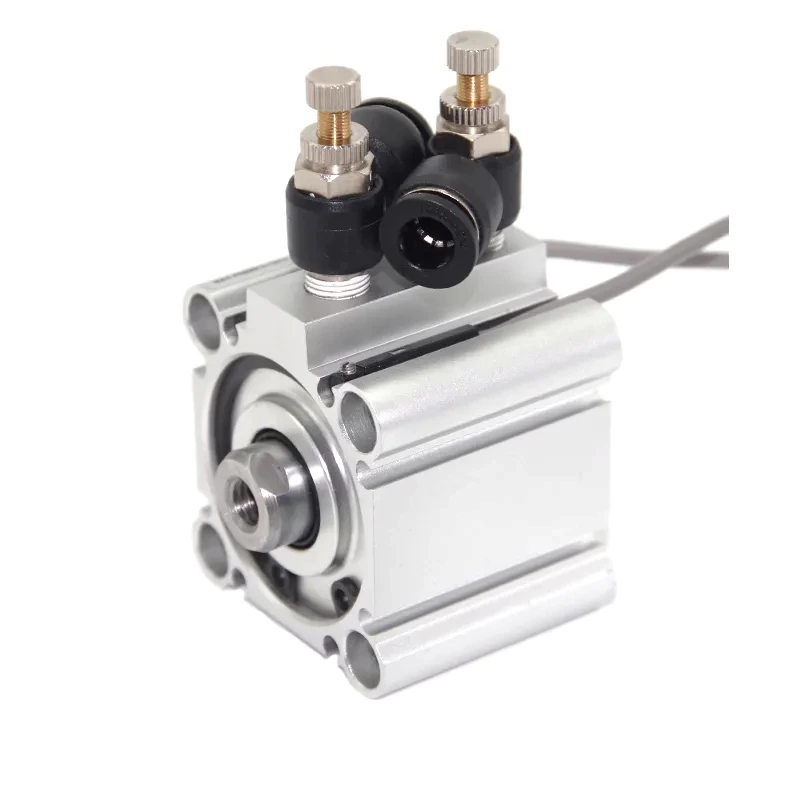

CQ2 Compact cylinder
Hered CQ2 Series Thin Type Cylinder: Compact, versatile pneumatic actuator for space-constrained industrial applications. Available in double-acting and single-acting configurations, with bore sizes 12mm to 100mm and strokes 5mm to 300mm. Operates at -20°C to 80°C, pressure range 0.1-1.0MPa (double-acting) or 0.2-0.9MPa (single-acting). Features DU bearing, PU seals, and anti-collision gasket for smooth, quiet operation. ISO9001:2015 certified and CE compliant. Offers male/female thread options, magnet-equipped models for position sensing, and adjustable stroke versions (CQ2J). Ideal for automated assembly lines, packaging machinery, material handling, and industrial robotics. Advanced design includes POM anti-friction seal and SDA rolling technique for enhanced durability. Engineered for reliability in tight spaces, combining efficiency with longevity. Perfect for factory automation requiring compact, high-performance pneumatic solutions. Customizable to meet specific application needs, ensuring optimal integration in diverse industrial setups.
Product selection · Technical support · OEM & ODM
Product details
Overview
The CQ2 Series Thin Type Cylinder from Hered Pneumatic Co., LTD. offers a compact and versatile pneumatic solution for various industrial applications. Designed with precision and efficiency in mind, this cylinder provides reliable performance in a space-saving package.
Key Features
Available in double-acting and single-acting (spring-out/spring-in) configurations
Bore sizes ranging from 12mm to 100mm
Stroke lengths from 5mm to 300mm
Working pressure range: 0.1 to 1.0 MPa (double-acting), 0.2 to 0.9 MPa (single-acting)
Operating temperature range: -20°C to 80°C
ISO9001:2015 certified and CE compliant
Advanced Design
DU bearing for enhanced durability and smooth operation
PU seals for improved wear resistance and extended service life
New POM anti-friction seal design
SDA rolling technique applied to piston rod, piston, and tail barrel
Anti-collision gasket structure for reduced impact and noise
Customization Options
Male or female thread options
Magnet-equipped models available for position sensing
Adjustable stroke versions (CQ2J series)
Double shaft models (CQ2W series)
Applications
The CQ2 Series is ideal for:
Automated assembly lines
Packaging machinery
Material handling equipment
Industrial robotics
General factory automation
Technical Specifications
| Specification | Details |
|---|---|
| Bore Sizes | 12, 16, 20, 25, 32, 40, 50, 63, 80, 100 mm |
| Operation Types | Double Acting, Single Acting (Spring-out/Spring-in) |
| Working Medium | Air |
| Proof Pressure | 1.5 MPa |
| Port Sizes | M5x0.8, G1/8, G1/4, G3/8 |
Quality Assurance
Hered Pneumatic Co., LTD. maintains strict quality control measures throughout the manufacturing process, ensuring each CQ2 Series cylinder meets our high standards for performance and reliability. Our ISO9001:2015 certification and CE compliance demonstrate our commitment to quality and safety.
Support and Service
Our team of pneumatic experts is ready to assist you with product selection, technical support, and after-sales service. Contact Hered Pneumatic Co., LTD. today to learn how the CQ2 Series can optimize your pneumatic systems.
