Solenoid valve MVSC-220 series
Hered MVSC Series Solenoid Valve: Versatile, high-performance valve for precise air flow control. Available in 2/2-way, 3/2-way, and 5/2-way configurations. Compact 22mm body size with single and double coil options. Operates at 1.58.0kgf/cm² pressure, 560°C temperature range. Features durable aluminum alloy body with NBR seals and IP65 protection. Offers fast response time (0.05 sec) and low power consumption (AC 4.8VA, DC 3.0W). Ideal for automation systems, robotics, and industrial machinery. Provides effective area up to 14mm² (Cv=0.78) and maintenance-free operation. Suitable for food processing, pharmaceutical production, and packaging machinery. Choose Hered MVSC Series for efficient, reliable air management in demanding industrial settings. Combines compact design with versatile configuration options for optimal performance across diverse applications. Contact Hered Pneumatic for expert guidance in selecting the perfect solenoid valve, ensuring precision and efficiency in your pneumatic control systems.
Product selection · Technical support · OEM & ODM
Product details

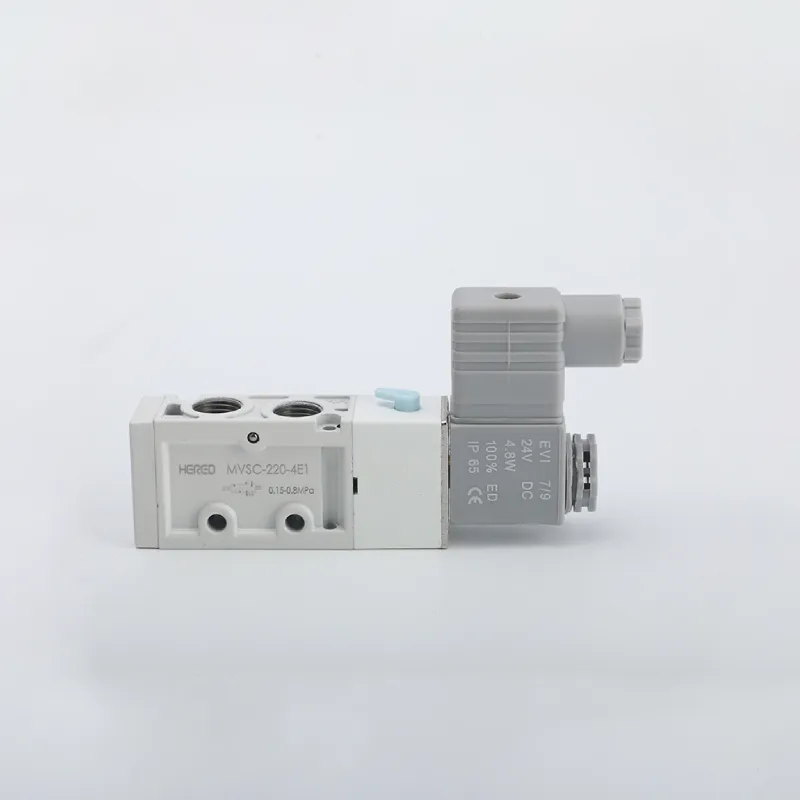

Hered MVSC-220 Series Solenoid Valve
Hered Pneumatic Co., LTD.’s MVSC Series Solenoid Valve is a high-performance, versatile solution for precise control of air flow in various industrial pneumatic applications. Available in multiple configurations, this compact and efficient valve offers exceptional reliability and flexibility for automation systems, robotics, and industrial machinery.
Key Features
- Multiple configurations: 2/2-way, 3/2-way, and 5/2-way options
- Compact 22mm body size for space-efficient installation
- Single and double coil options available
- Various position types to suit different application needs
- Wide range of voltage options: DC12V, DC24V, AC24V, AC110V, AC220V
- Internally piloted acting type for reliable operation
- Durable aluminum alloy body with NBR seals
Parameter
| Model | MVSC-220-4E1 | MVSC-220-4E2 | MVSC-220-4E2C | MVSC-220-4E2P | MVSC-220-4E2R | |
|---|---|---|---|---|---|---|
| Fluid | Air(filtered through 40μ filter element) | |||||
| Action | Internally piloted acting type | |||||
| Valve type | 2/5 Way | 3/5 Way | ||||
| Effective area(mm²) | 14mm²(CV=0.78) | 12mm²(CV=0.4) | ||||
| Port size | ||||||
| Lubrication | Not required | |||||
| Operating pressure | 1.5~8.0kgf/cm² | |||||
| Proof pressure | 10.5kgf/cm² | |||||
| Ambient & fluid temperature | 5~60℃ | |||||
| Voltage range | ±10% | |||||
| Power consumption | AC:4.5W DC:3.0W | |||||
| Insulation grade | F grade | |||||
| Protection | IP65(DIN 40050) | |||||
| Connection | Lead wire type or terminal type | |||||
| Max.frequency | 5 cycle/sec. | |||||
| Min.response time | 0.05 sec. | |||||
| Weight (kg) | ||||||
| Main parts material | Body | Aluminum alloy | ||||
| Seal | NBR | |||||
Model Selection
To order your Hered MVSC Series Solenoid Valve, use the following code structure:
MVSC - 220 - 4E2 - C - AC110V
- Series code: MVSC
- Body size: 220 (22mm)
- Coil type: 4E1 (single coil), 4E2 (double coil)
- Position: C (Three position, midst close type), various options available
- Voltage: Multiple options (e.g., AC110V, DC24V)
Dimensions
Applications
- Automation systems and production lines
- Robotic assembly and material handling
- Packaging machinery
- Pneumatic control systems in manufacturing
- Industrial machinery and equipment
- Food and beverage processing
- Pharmaceutical production
Benefits
- Compact design for easy integration into existing systems
- High reliability and long service life
- Low power consumption for energy efficiency
- Fast response time for precise control
- Versatile configuration options to suit various applications
- Maintenance-free operation with no lubrication required
- IP65 protection for use in harsh industrial environments
Hered Pneumatic Co., LTD.’s MVSC Series Solenoid Valve offers exceptional performance, versatility, and reliability for diverse industrial pneumatic applications. With its compact design, multiple configuration options, and robust construction, this valve ensures precise and efficient air flow control in even the most demanding environments. Choose Hered’s MVSC Series for uncompromising quality and dependable operation in your pneumatic systems and automation processes.
For more information, customization options, or to place an order, please contact our sales team. We’re committed to helping you find the perfect Hered MVSC Series Solenoid Valve tailored to your specific requirements.
