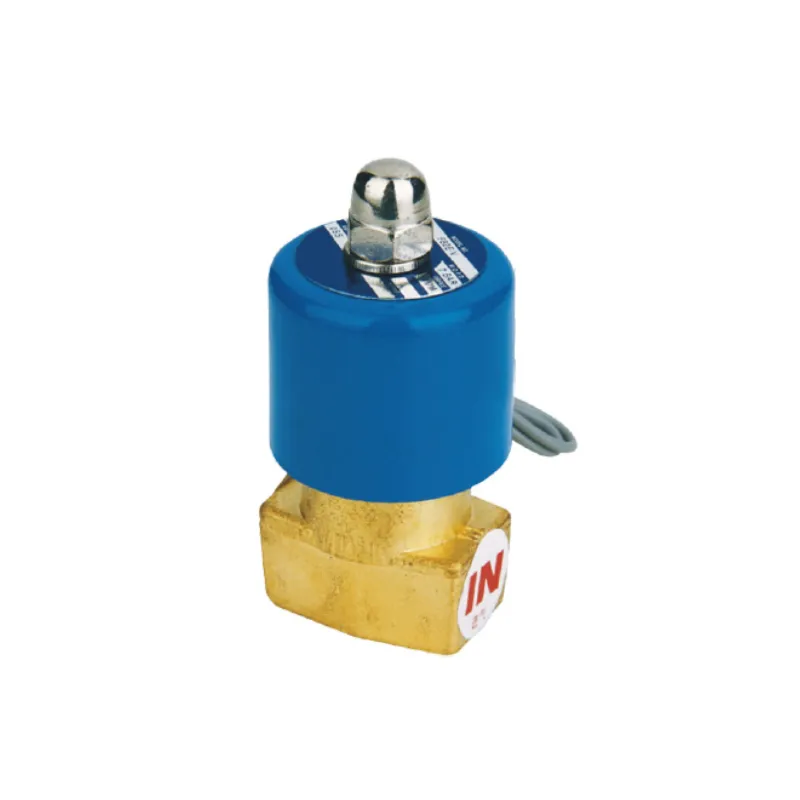

Solenoid valve FB2E-V series
Hered FB2E-V Series 2-Way Direct Acting Solenoid Valve: High-performance NC valve for precise fluid control. Features 1/4″ port size, 1.6 mm² effective area, and 0.23 Cv value. Suitable for air, water, gas, and oil (filtered). Operates at 0-7.0kgf/cm² pressure range, -5~85°C temperature range. Durable brass body with NBR seal. Compact, lightweight design for easy integration. Ideal for pneumatic systems, industrial automation, and process control. Offers versatile fluid compatibility, reliable performance, and energy-efficient operation. Choose Hered FB2E-V Series for precise, efficient fluid management in normally closed configurations. Combines compact design with robust performance for demanding industrial environments. Contact Hered Pneumatic for expert guidance in selecting the optimal solenoid valve, ensuring enhanced control and reliability in your fluid systems.
Product selection · Technical support · OEM & ODM
Product details
Hered FB2E-V Series 2-Way Direct Acting Solenoid Valve
Hered Pneumatic Co., LTD.’s FB2E-V Series Solenoid Valve is a high-performance, 2-way normally closed (NC) valve designed for precise control of fluids and gases in various industrial applications. This direct acting valve offers reliable performance in pneumatic systems, industrial automation, and process control environments where a normally closed configuration is required.
Key Features
- 2-way, normally closed (NC) configuration
- Direct acting type for rapid response
- Compact and lightweight design
- Suitable for multiple fluid types: Air, Water, Gas, Oil (filtered through 40μ filter element)
- Wide operating temperature range
- Durable brass body construction
- NBR seal for excellent media compatibility
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | FB2E-V |
| Action | Direct type |
| Type | Normally Closed type |
| Effective area | 1.6 mm² |
| CV Value | 0.23 |
| Port size | 1/4″ |
| Viscosity limit | Under 20CST |
| Operating pressure | 0-7.0kgf/cm² |
| Proof pressure | 10kgf/cm² |
| Ambient & fluid temperature | -5~85°C |
| Voltage range | ±10% |
Materials
- Body: Brass
- Seal: NBR
Dimensions
Applications
- Pneumatic control systems
- Industrial automation processes
- Water treatment and management
- Oil and gas industry
- HVAC systems
- Food and beverage processing
- Chemical processing
Benefits
- Versatile fluid compatibility for various applications
- Reliable performance in demanding industrial environments
- Compact design for easy integration into existing systems
- Energy-efficient operation with low power consumption
- Durable construction for extended service life
- Wide temperature range for diverse operating conditions
Hered Pneumatic Co., LTD.’s FB2E-V Series 2-Way Direct Acting Solenoid Valve offers exceptional performance and reliability for diverse fluid control applications. With its versatile media compatibility, robust construction, and precise control capabilities, this valve series ensures efficient fluid management in your industrial systems. Choose Hered’s FB2E-V Series for uncompromising quality and dependable operation in your normally closed valve requirements.
For more information, customization options, or to place an order, please contact our sales team. We’re committed to helping you find the perfect Hered FB2E-V Series Solenoid Valve tailored to your specific fluid control needs.
