Overview

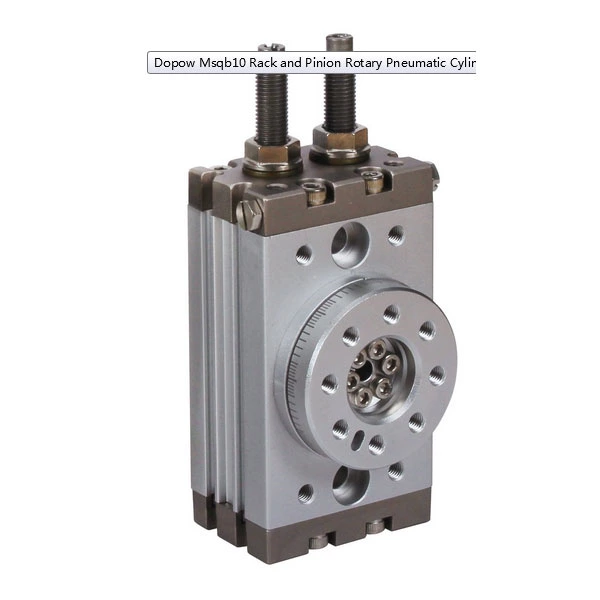

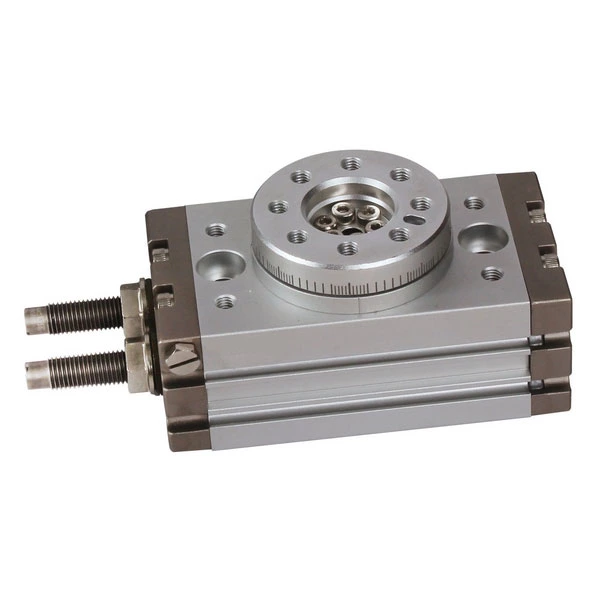

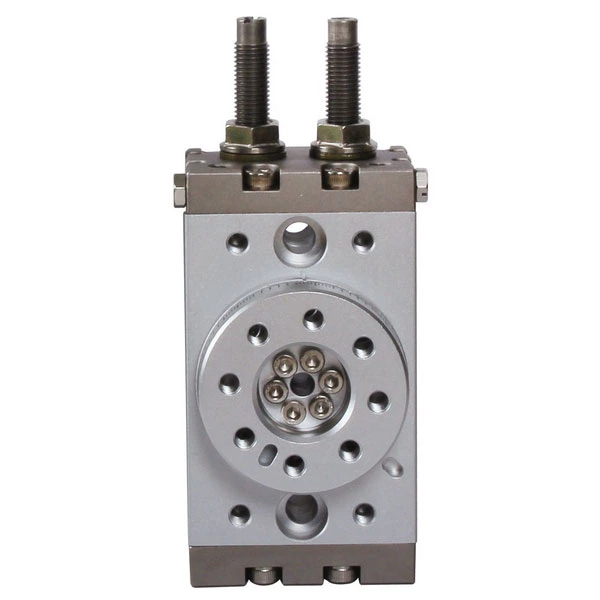

The Hered MSQ Rotary Air Actuator is a high-precision, gear-rack type rotary table designed for various industrial applications. This versatile actuator offers a wide range of bore sizes and angle adjustments, making it suitable for diverse automation needs.
Key Features
- Available in 7 bore sizes: 10, 20, 30, 50, 70, 100, and 200mm
- Wide angle adjustment range from 0° to 190°
- High-precision ball bearings for enhanced accuracy (±0.01mm)
- Rotary table design for easy workpiece installation
- Roller bearing design for 3-4 times higher load capacity than CRQ series
- Hollow shaft for wire or air passage
- Built-in magnetic ring for magnetic switch installation
Technical Specifications
| Parameter | Specification |
|---|---|
| Motion Pattern | Double-acting |
| Operating Pressure | 0.1 to 1.0 MPa (Varies by model and configuration) |
| Temperature Range | 0°C to 60°C (No Freezing) |
| Cushioning | Rubber buffer (standard) or Hydraulic buffer (optional) |
| Lubrication | Non-lube |
Applications
The Hered MSQ Rotary Air Actuator is ideal for:
- Precision indexing tables
- Robotic arm rotation
- Assembly line automation
- Material handling systems
- Packaging machinery
- CNC machine tool auxiliary axes
Installation and Customization
The MSQ series offers:
- Multiple installation options for versatile mounting
- Adjustable angle range from 0° to 190°
- Choice of rubber buffer or hydraulic shock absorber
- High-precision models available for specific bore sizes
Performance Highlights
- Smooth and accurate rotation
- High load capacity due to roller bearing design
- Vertical and horizontal position accuracy of ±0.01mm
- Allowable kinetic energy ranging from 0.007J to 2.9J (model dependent)
For detailed specifications, dimensions, and ordering information, please refer to our product catalog or contact our technical support team. Our experts can help you select the most suitable MSQ Rotary Air Actuator for your specific application needs.
