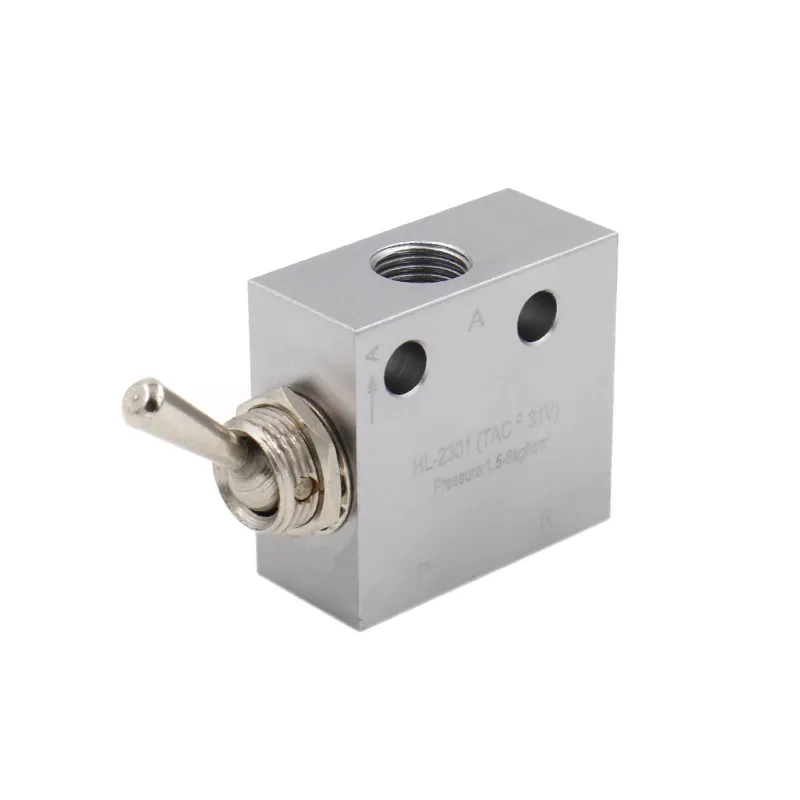

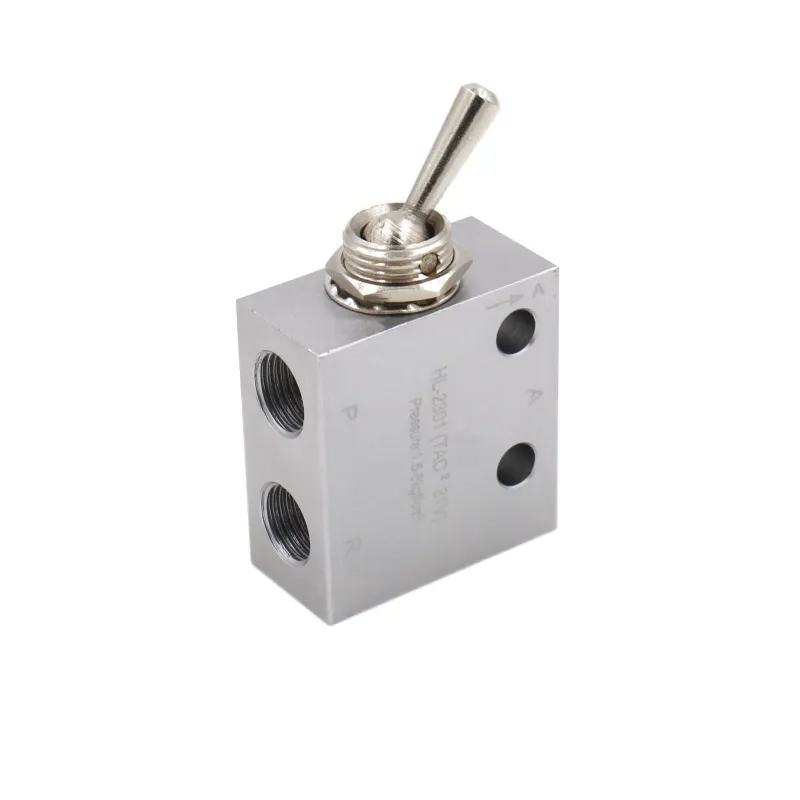

Pneumatic Toggle Control Switch HL Series HL2301 HL2501
Hered Knob Switch HL Series: High-quality pneumatic toggle switches for manual control in industrial applications. Models include HL2301 and HL2501. Features G1/8 port size, operates with compressed air at max 0.8MPa pressure and 0-60°C. Aluminum alloy body with NBR seals. 2 ports, 3 positions (normal, switch, return) configuration. Direct acting mechanism for responsive control. Suitable for non-lubricated systems. Ideal for industrial machinery, pneumatic control panels, and manufacturing equipment. Compact design for easy integration. Choose Hered HL Series for reliable, user-friendly manual pneumatic control in diverse industrial settings. Contact Hered Pneumatic for expert guidance on selecting the perfect switch configuration for your specific needs.
Product selection · Technical support · OEM & ODM
Product details
Hered Knob Switch HL Series
Hered Pneumatic Co., LTD.’s Knob Switch HL Series is a high-quality pneumatic toggle switch designed for manual control in various industrial applications. These switches offer reliable performance and intuitive operation, making them ideal for a wide range of pneumatic systems.
Key Features
- Durable aluminum alloy construction for long-lasting performance
- Direct acting mechanism for responsive control
- Knob or button interface for easy manual operation
- 2 ports and 3 positions (normal, switch, return) configuration
- Suitable for non-lubricated compressed air systems
- Compact design for easy integration into existing setups
Specifications
| Parameter | HL2301 | HL2501 |
|---|---|---|
| Working Medium | Compressed Air | |
| Motion Pattern | Manual Control | |
| Port Size | G1/8 | |
| Max. Operating Pressure | 0.8MPa | |
| Max. Proof Pressure | 1.0MPa | |
| Operating Temperature | 0~60℃ | |
| Lubrication | Non-lube | |
| Main parts material | Body: Aluminium Alloy | |
| Sealing element: NBR | ||
Dimension
Applications
- Industrial machinery and automation systems
- Pneumatic control panels
- Manufacturing equipment requiring manual air flow control
- Assembly lines and packaging machinery
- Any application requiring reliable manual pneumatic switching
Benefits
- Simple and intuitive manual control of pneumatic systems
- Robust construction ensures long-term reliability in industrial environments
- Versatile design suitable for various pneumatic applications
- Easy integration with standard G1/8 port size
- Low maintenance requirements due to high-quality materials and non-lube operation
- Multiple models to suit different operational needs
