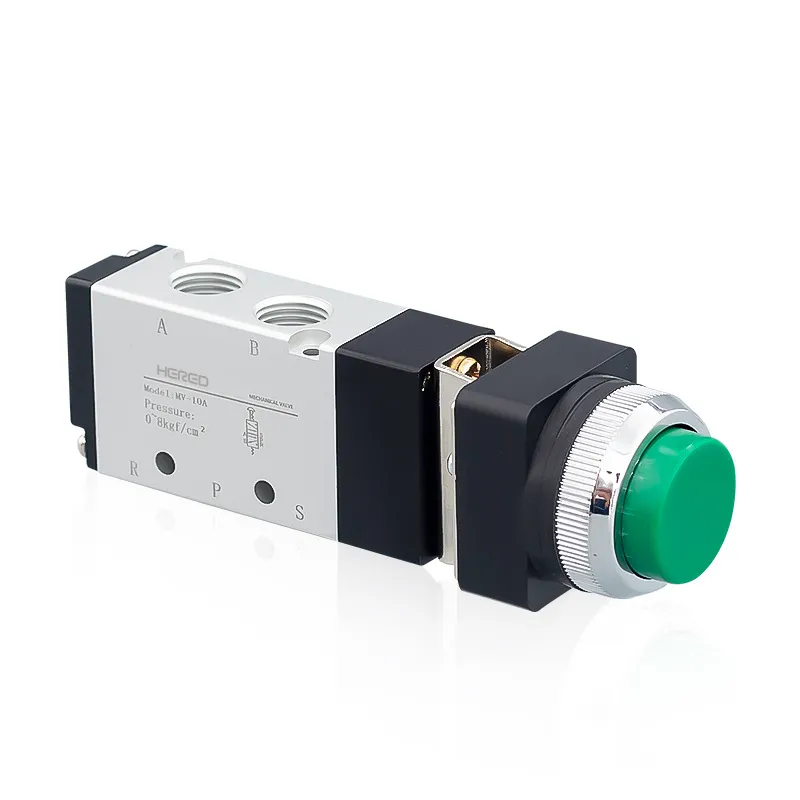

Pneumatic Mechanical Valves MV Series MV-10A

Hered MV Series Mechanical Valves: High-performance 2-position 5-port pneumatic control valves for industrial applications. Models include MV-08, MV-09, MV-10, and MV-10A. Features G1/8 port size, operates with compressed air at max 0.8MPa pressure and 0-70°C. Aluminum alloy body with NBR seals. Effective area 24 mm² (MV-08), CV value 1.20. Ideal for manufacturing, automation, and machinery requiring precise airflow control. Excellent sealing, no lubrication needed. Multiple installation options and control head designs available. Choose Hered MV Series for robust, versatile pneumatic control in diverse industrial settings. Contact Hered Pneumatic for expert guidance on selecting the perfect valve configuration for your specific needs.

Send your requirements, we will quote for you within 12 hours

Tel:+8618066396588

Hered MV Series Mechanical Valves

Hered Pneumatic Co., LTD.’s MV Series Mechanical Valves are high-performance pneumatic control valves designed for efficient airflow management in various industrial applications. These versatile valves offer reliable control and are suitable for a wide range of pneumatic systems.

Key Features

  • Variety of structural shape control heads for different conditions
  • Excellent sealing properties with flexible reversing, no lubrication required
  • Multiple installation options for easy setup and use
  • Special surface oxidation treatment for enhanced durability
  • Precision-engineered for dimensional accuracy
  • Metal control heads on select models for increased longevity
  • 2-position 5-port valve configuration for versatile control
  • Suitable for compressed air applications

Specifications

Parameter MV-08 MV-09 MV-10 MV-10A
Working Medium Compressed Air
Max. Operating Pressure 0.8MPa
Max. Proof Pressure 1.0MPa
Ambient Temperature 0~70℃
Port Size G1/8
Valve Type 2-position 5-port
Main parts material Body: Aluminium Alloy
Sealing element: NBR

Additional Features

  • Effective Area: 24 mm² (for MV-08 model)
  • CV Value: 1.20 (for MV-08 model)
  • Operating Pressure for water and oil: 0.8MPa

Dimension

Applications

  • Pneumatic control systems in manufacturing facilities
  • Automation processes requiring precise air flow control
  • Machinery and equipment with manual pneumatic controls
  • Industrial applications needing reliable valve performance

Benefits

  • Versatile design suitable for various pneumatic applications
  • Robust construction ensures long-term reliability
  • Easy integration with standard G1/8 port size
  • Wide operating range for diverse industrial environments
  • Low maintenance requirements due to high-quality materials
  • Multiple models to suit different operational needs

Hered Pneumatic Co., LTD.’s MV Series Mechanical Valves offer a reliable and efficient solution for controlling air flow in pneumatic systems. Their robust construction, coupled with versatile functionality, makes these valves an excellent choice for a wide range of industrial applications. Whether you’re designing a new pneumatic system or upgrading existing equipment, the MV Series provides the performance and durability needed in today’s demanding industrial environments.
