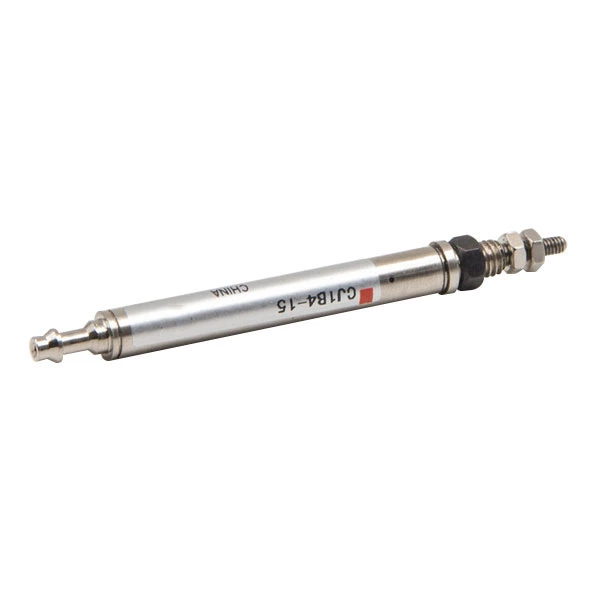

Mini Pneumatic Cylinder CJ1 (Stainless Steel)

The CJ1 Miniature Stainless Steel Pneumatic Cylinder from Hered Pneumatic Co., LTD. excels in harsh environments with its high-precision, corrosion-resistant stainless steel construction. This compact, double-acting cylinder is perfect for applications requiring high-frequency operation and limited space. With bore sizes of 2.5 mm and 4 mm, it offers stroke lengths between 5 and 20 mm. Operating pressure ranges from 0.3 to 0.7 MPa with speeds of 50 to 500 mm/s, and its adjustable piping direction ensures flexible installation. Ideal for industrial automation, robotics, and machinery, the CJ1 Series guarantees durability, longevity, and excellent dust-proof performance. Choose the CJ1 Series for reliable and efficient miniature pneumatic solutions.

Send your requirements, we will quote for you within 12 hours

Tel:+8618066396588

Overview

The CJ1 Miniature Stainless Steel Pneumatic Cylinder by Hered Pneumatic Co., LTD. is designed for optimal performance in harsh environments. Featuring a double-acting mechanism, this compact cylinder offers high precision, corrosion resistance, and flexible installation. Its miniature size and lightweight construction make it ideal for applications where space is limited and high-frequency operation is essential.

Specifications

  • Brand: Hered Pneumatic
  • Material: Stainless steel
  • Bore Sizes: 2.5 mm, 4 mm
  • Stroke Lengths: 5, 10, 15, 20 mm
  • Operating Pressure: 0.3 ~ 0.7 MPa
  • Speed: 50 ~ 500 mm/s
  • Temperature Range: -10 ~ 70°C

Description

The CJ1 Series Miniature Pneumatic Cylinders are constructed from high-quality stainless steel, ensuring durability and corrosion resistance in demanding environments. The double-acting function allows for precise control of piston movement, making it suitable for high-frequency applications. With changeable piping direction and easy installation, these cylinders provide flexibility and efficiency in various industrial setups.

Key Features

  • Stainless Steel Construction: Provides excellent corrosion resistance and durability.
  • Double-Acting Mechanism: Uses air pressure to move the piston in both directions for precise control.
  • Adjustable Piping Direction: Side pipe joint can be adjusted within ±90° for flexible installation.
  • Compact Design: Ideal for applications with limited space due to its small size and lightweight construction.
  • Long Life Span: Engineered for extended operational use, ensuring reliable performance.
  • Excellent Dust-Proof Performance: Special piston rod sealing ring design for enhanced protection in dusty environments.

Detailed Specifications

Bore (mm) 2.5 4
Working Medium Air
Maximum Operating Pressure 0.7MPa
Minimum Operating Pressure 0.3MPa (Double-acting: 0.2MPa)
Ambient and fluid temperature -10~70°C (No Freezing)
Piston velocity 50~500mm/s
Buffer No
Stroke Tolerance (mm) +0.5/0

Applications

The CJ1 Series is suitable for a variety of applications, including:

  • Industrial Automation: Precision linear motion in automation systems.
  • Robotics: Compact design ideal for integration into robotic mechanisms.
  • Machinery: Durable and reliable actuation in various machinery.

Dimensions

Detailed dimensions for each bore size and stroke length:

Dimensions for Bore Size 4 mm

Stroke (mm) S (mm) Z (mm)
5 18 51
10 23 56
15 28 61
20 33 66

Dimensions for Bore Size 2.5 mm

Stroke (mm) S (mm) Z (mm)
5 16.5 29
10 25.5 38



For high-quality and reliable miniature stainless steel pneumatic cylinders, choose the CJ1 Series from Hered Pneumatic Co., LTD., built to meet the demands of modern industrial applications.
