KLA Series Air Flow Control Valve
Hered KLA Series Air Flow Control Valve: Precision-engineered valves combining check valve and one-way valve functions for efficient pneumatic systems. Available models: KLA-06 (G1/8″), KLA-08 (G1/4″), KLA-10 (G3/8″), and KLA-15 (G1/2″). Features sensitive adjustment screw, compact design, and versatile mounting options. Working pressure range: 0.50.95 Kgf/cm2, temperature range: -560°C. Durable aluminum alloy construction. Ideal for air pumping, compressors, automated manufacturing, and textile screen printing. Offers precise speed control, air exhaust, and flow cut-off capabilities. Enhances pneumatic system efficiency across various industrial applications. Choose Hered KLA Series for superior performance and reliability in air flow control. Contact Hered Pneumatic for expert guidance on selecting the optimal valve for your specific system requirements.
Product selection · Technical support · OEM & ODM
Product details

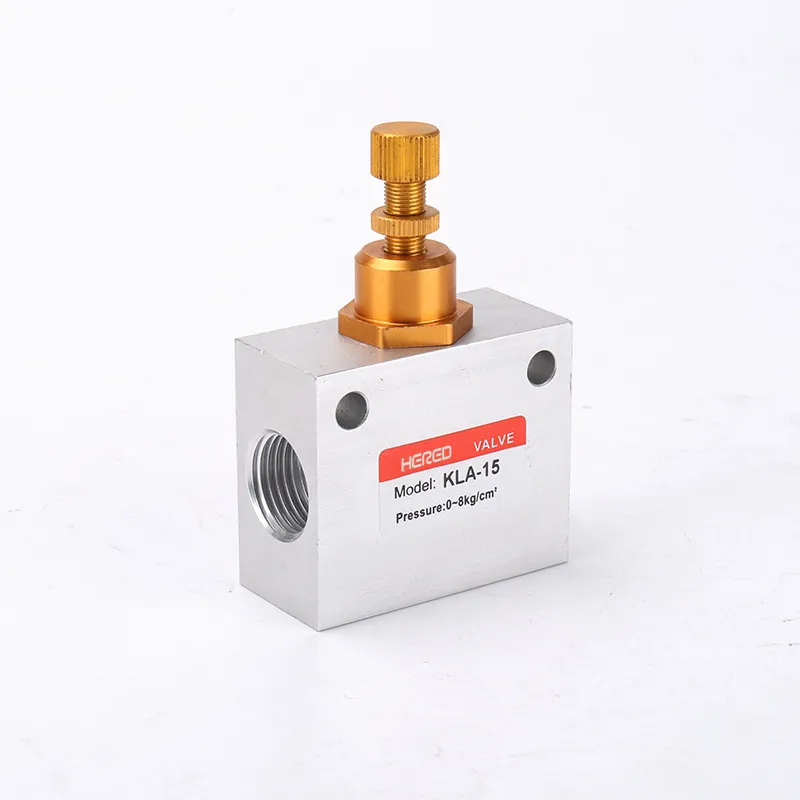

Hered KLA Series Air Flow Control Valve
Hered Pneumatic Co., LTD.’s KLA Series Air Flow Control Valve is a precision-engineered component designed for efficient air flow regulation in pneumatic systems. This versatile valve combines check valve and one-way valve functionalities, offering reliable performance across various industrial applications.
Key Features
- Precise air flow speed control and adjustment
- Compact and space-saving design
- Sensitive adjustment screw for accurate flow rate control
- Versatile mounting options
- Air exhaust and flow cut-off capabilities
- Durable aluminum alloy construction
Specifications
| Model | KLA-06 | KLA-08 | KLA-10 | KLA-15 | |
| Working Medium | Air | ||||
| Port Size | G1/8″ | G1/4″ | G3/8″ | G1/2″ | |
| Working-pressure Range | 0.5~0.95 Kgf/cm2 | ||||
| Ensured Pressure Resistance | 15.0 Kgf/cm2 | ||||
| Operating Temperature Range | -5~60 | ||||
| Body of Material | AluminumAlloy Lyl2 | ||||
| Standard Rated Flow(L/min | Check Valve | 200 | 450 | 1250 | 1650 |
| One-way Valve | 400 | 800 | 1500 | 2000 | |
Dimensions
| Model/Symbol | A | B | C | D | E | F | G | H | I | J | K | L | M | N |
| KLA-06 | 22 | 32 | PT1/8 | 18 | 23 | 4.3 | 46.8 | 52.3 | M6×0.5 | M12×0.75 | 10 | 18 | 26 | 8.6 |
| KLA-08 | 26 | 36 | PT1/4 | 23 | 27 | 4.3 | 50.8 | 56.3 | M6×0.5 | M12×0.75 | 13.5 | 18 | 30 | 8.6 |
| KLA-10 | 35 | 50 | G3/8 | 32 | 37 | 5.3 | 65 | 74 | M8×0.75 | M16×1 | 17.5 | 28 | 40.5 | 10.2 |
| KLA-15 | 35 | 50 | G1/2 | 32 | 37 | 5.3 | 65 | 74 | M8×0.75 | M16×1 | 17.5 | 28 | 40.5 | 10.2 |
Applications
- Pneumatic systems and air circuits
- Air pumping and compressors
- Automated manufacturing equipment
- Textile screen printing presses
- Industrial machinery requiring precise air flow control
Benefits
- Enhances control and efficiency in pneumatic systems
- Allows for precise speed control in air cylinders
- Durable construction for long-term reliability
- Versatile application across multiple industries
For detailed specifications, model options, or customized solutions, please contact our technical support team. Our engineers are ready to assist you in selecting the optimal KLA Series Air Flow Control Valve for your specific pneumatic system requirements.
