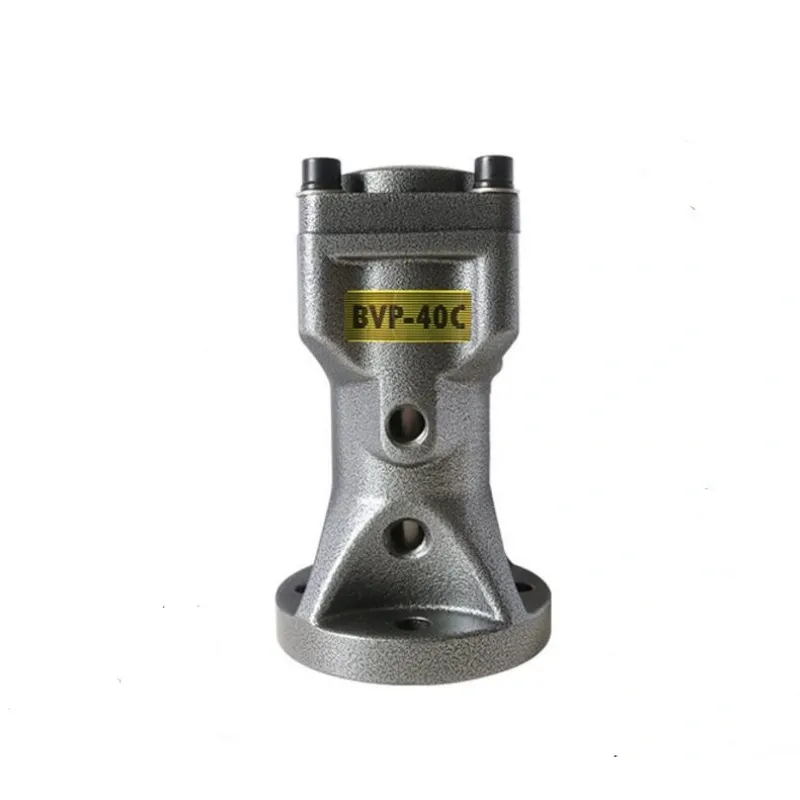

BVP Series Piston Type Pneumatic Hammer
Hered BVP Series Piston Type Pneumatic Hammer: High-performance industrial tool for efficient bulk material handling. Features durable aluminum construction and adjustable piston mechanism. Available in models BVP-30C, BVP-40C, and BVP-60C, offering frequencies from 1350 to 2850 VPM and vibration power up to 1000 N at 6 MPa. Operates efficiently with air consumption between 230-270 l/min. Ideal for silos, hoppers, and preventing material blockages. Provides low-frequency, continuous impact for effective material flow. Customizable frequency and amplitude to suit specific needs. Compact and lightweight design (0.9-4.5 kg) for easy integration. Perfect for industries requiring versatile, energy-efficient solutions for material flow enhancement in various applications, from food processing to construction material handling.
Product selection · Technical support · OEM & ODM
Product details
Product Overview
The Hered BVP Series Piston Type Pneumatic Hammer is a high-performance industrial tool designed for efficient material handling and processing. With its robust construction and adjustable vibration parameters, this series offers versatile solutions for various applications, particularly in managing bulk materials and preventing silo blockages.
Key Features
- Durable Construction: Robust aluminum housing for longevity in demanding environments.
- Piston Mechanism: Delivers low-frequency, continuous impact for effective material flow.
- Flexible Operation: Can be activated and deactivated instantly for precise control.
- Adjustable Parameters: Customizable frequency and amplitude to suit specific application needs.
- Versatile Application: Ideal for silos, hoppers, and other bulk material handling systems.
Technical Specifications
| Model | Frequency (V.P.M) at 6MPa | Vibration Power (N) at 6MPa | Air Consumption (l/min) | Weight (kg) |
|---|---|---|---|---|
| BVP-30C | 2850 | 560 | 230 | 0.9 |
| BVP-40C | 1870 | 720 | 250 | 1.9 |
| BVP-60C | 1350 | 1000 | 270 | 4.5 |
Dimensional Specifications (mm)
| Model | A | B | C | D | H | IN/OUT |
|---|---|---|---|---|---|---|
| BVP-30C | 128 | 90 | 68 | 18 | 12 | 1/4″ |
| BVP-40C | 160 | 100 | 78 | 18 | 12 | 1/4″ |
| BVP-60C | 208 | 140 | 105 | 20 | 16 | 1/4″ |
Applications
- Silo and hopper material flow enhancement
- Bulk material handling systems
- Prevention of material bridging and rat-holing
- Industrial processing lines
- Construction material handling
- Food and pharmaceutical processing
Advantages
- Efficient Material Flow: Low-frequency vibrations effectively solve silo blockages and material flow issues.
- Customizable Performance: Adjustable frequency and amplitude for tailored solutions.
- Compact Design: Lightweight and space-efficient for easy integration into existing systems.
- Energy Efficient: Optimized air consumption for cost-effective operation.
- Versatile Application Range: Suitable for various industries and material types.
Selection Guide
- Choose BVP-30C for lighter applications and smaller containers.
- BVP-40C is ideal for medium-sized silos and moderate material flow requirements.
- Opt for BVP-60C for heavy-duty applications and larger material volumes.
- Consider the required vibration power and available air pressure when selecting a model.
Installation and Operation Tips
- Ensure a stable air supply between 2MPa to 6MPa for optimal performance.
- Mount securely to the silo or hopper structure for effective vibration transfer.
- Adjust air pressure to achieve the desired vibration characteristics.
- Implement proper maintenance schedules to ensure long-term reliability.
- Consider using multiple units for larger silos or complex material handling systems.
The Hered BVP Series Piston Type Pneumatic Hammer represents a significant advancement in material handling technology. Its combination of robust design, adjustable performance, and efficient operation makes it an essential tool for industries seeking to optimize their bulk material processing and flow management systems.
