AC Series F.R.L Combination SMC Type
Hered AC Series F.R.L. Combination Units: Comprehensive air preparation solution integrating filter, regulator, and lubricator in one compact device. Models AC1000-AC5000 cover flow rates from 500-5000 L/min, with port sizes M5 to G1. Operates at 0.05-0.85 MPa, 0°C-60°C. Features 40μm standard filtration (5μm option), constant pressure control, and proportional lubrication. Polycarbonate container with manual/automatic drain options. Modular design allows separate component ordering. Ideal for industrial pneumatic systems requiring clean, regulated, and lubricated air. Compatible with various thread types. Customizable with protective covers, L-Type brackets, and piping adaptors. Ensures optimal performance of air-powered equipment in manufacturing, automation, and process control industries.
Product selection · Technical support · OEM & ODM
Product details

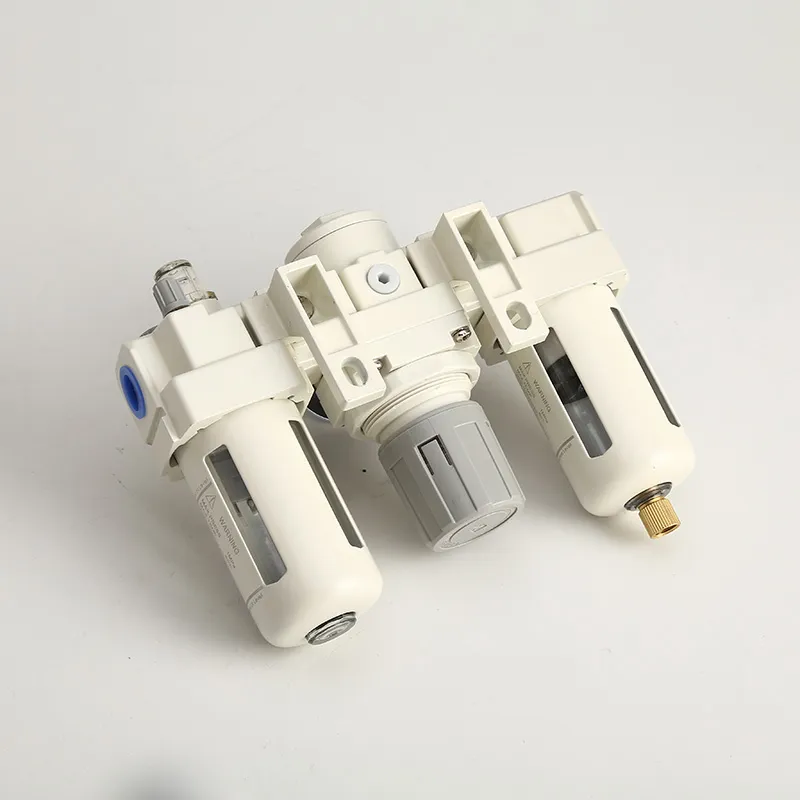

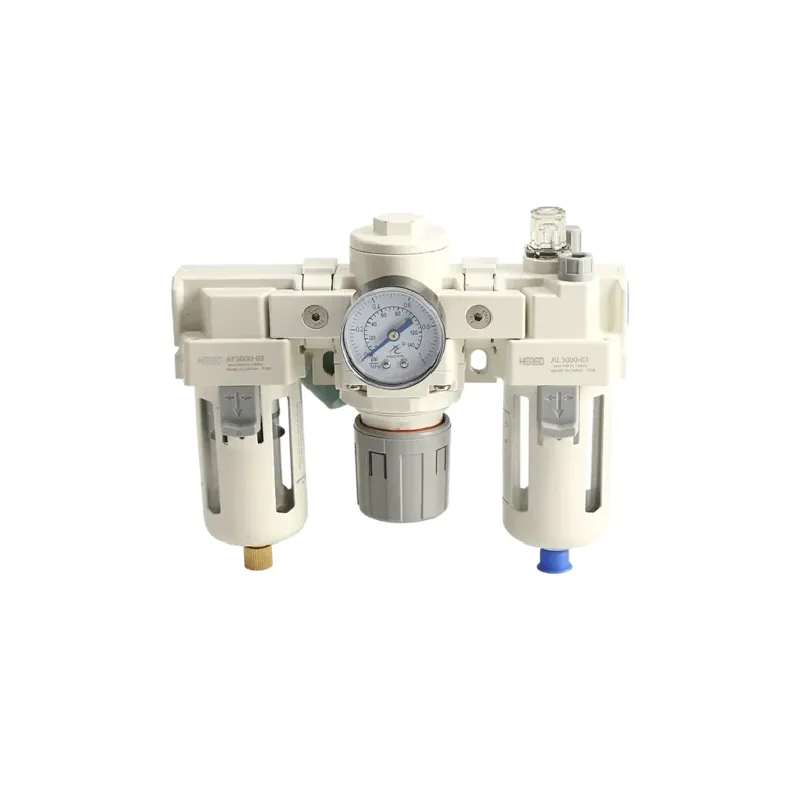

Hered AC Series F.R.L. Combination Units
The Hered AC Series F.R.L. (Filter, Regulator, Lubricator) Combination units offer a complete air preparation solution for pneumatic systems. These modular units integrate filtration, pressure regulation, and lubrication in one compact device, ensuring optimal performance of your compressed air equipment.
Key Features
- Integrated filter, regulator, and lubricator for comprehensive air preparation
- Modular design allows for separate ordering of AF, AR, and AL components
- Water separator for clean, dry compressed air
- Maintains constant operating pressure despite line fluctuations
- Proportional lubricator adds regulated oil quantity to filtered air
- Available with manual or automatic drain options
- Compatible with various thread types (PT, NPT, etc.) to meet customer requirements
Technical Specifications
| Parameter | Specification |
|---|---|
| Applicable Medium | Compressed Air |
| Working Pressure Range | 0.05~0.85 MPa |
| Proof Pressure | 1.5MPa |
| Temperature Range | 0°C~60°C |
| Nominal Flow Rate | 500 ~ 5000 L/min (model dependent) |
| Filtration Grade | 40μm (standard), 25μm, 5μm options |
| Container Material | Polycarbonate |
| Recommended Oil | ISO VG32 or equivalent grade |
Available Models
The AC Series includes models AC1000 to AC5000, with various port sizes from M5 to G1, catering to different flow rate requirements:
- AC1000-AC2000: Suitable for lower flow rates (up to 500 L/min)
- AC3000-AC4000: Medium flow rates (2000 to 4500 L/min)
- AC5000: High flow rates (up to 5000 L/min)
Customization Options
- Automatic drain function available (add ‘D’ to ordering code)
- Protective covers available for most models
- L-Type bracket for flexible mounting
- Optional piping adaptor for easy installation
Applications
Ideal for various industrial pneumatic systems where clean, regulated, and lubricated air is crucial for optimal performance of air-powered tools and equipment. Suitable for manufacturing, automation, and process control industries.
For detailed specifications, installation guidelines, and customization options, please consult our product catalog or contact our technical support team.
