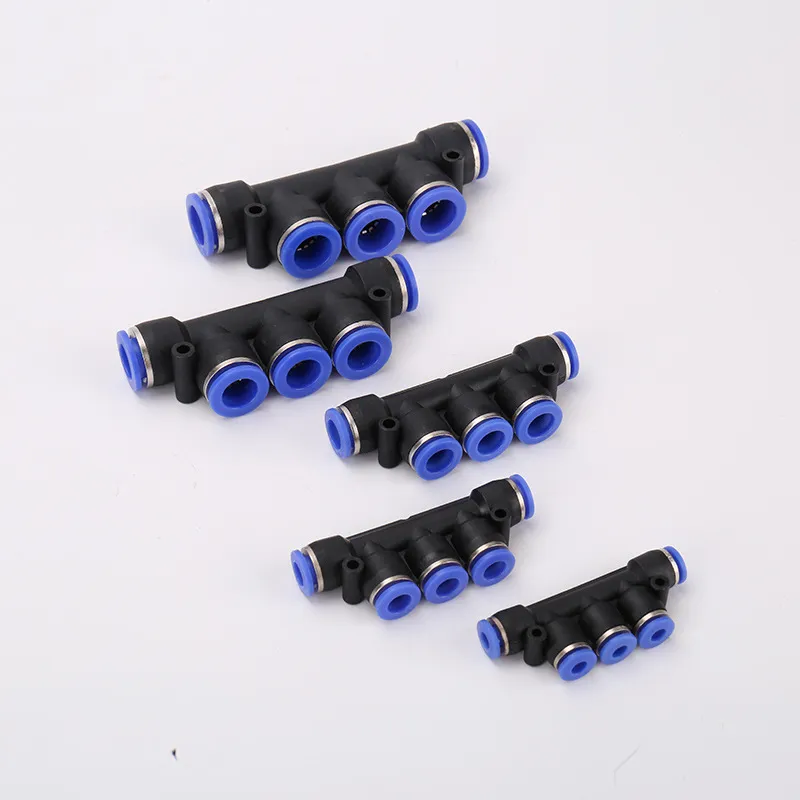

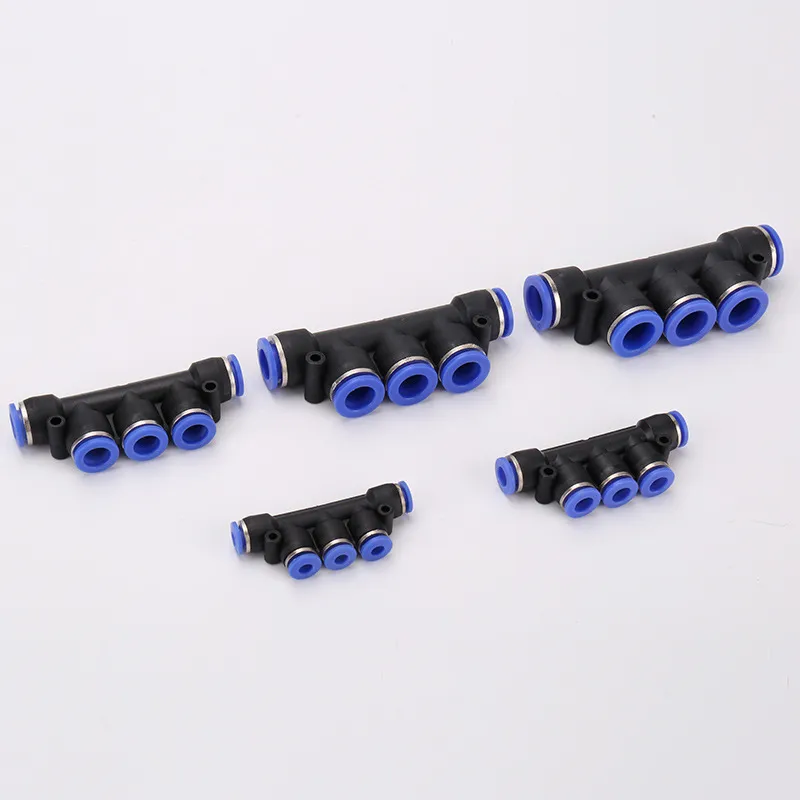

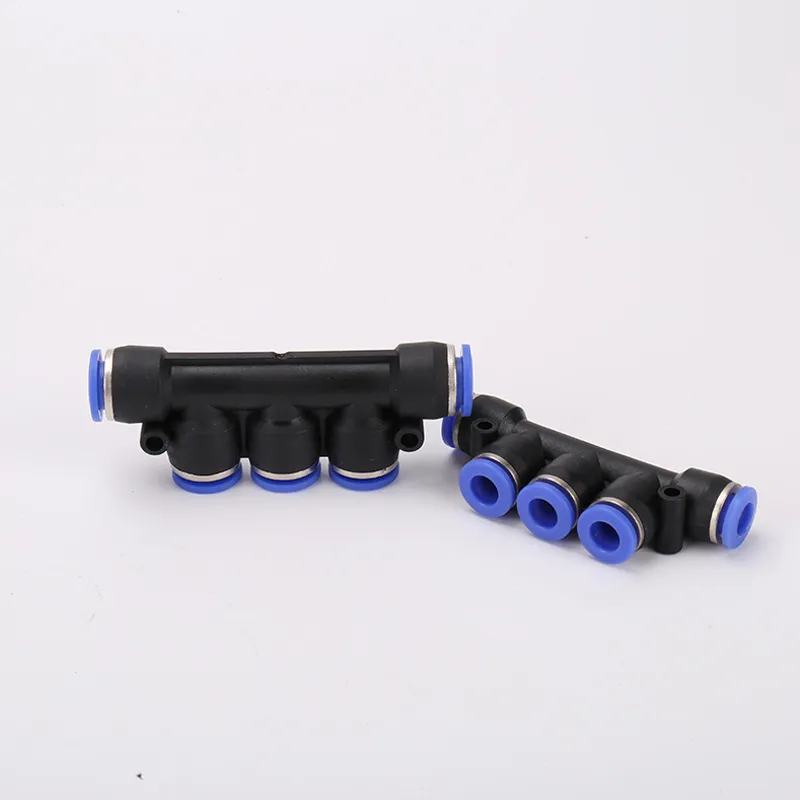

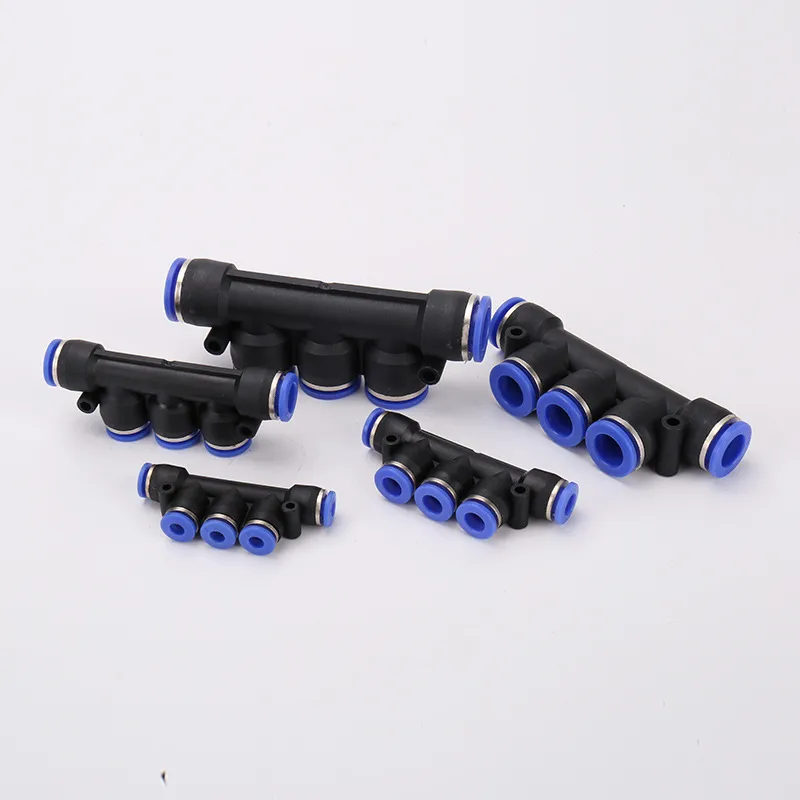

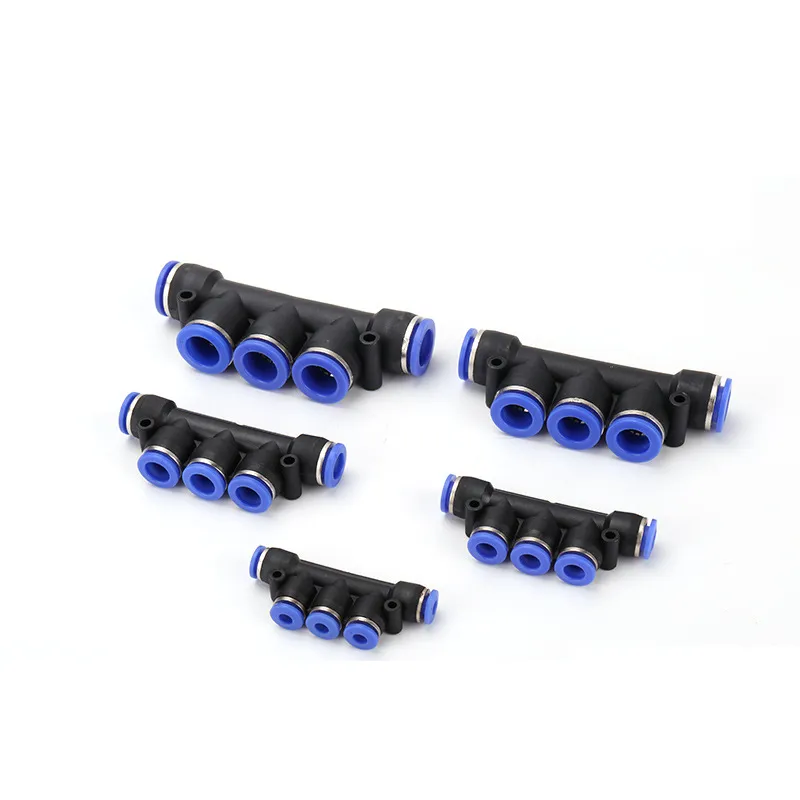

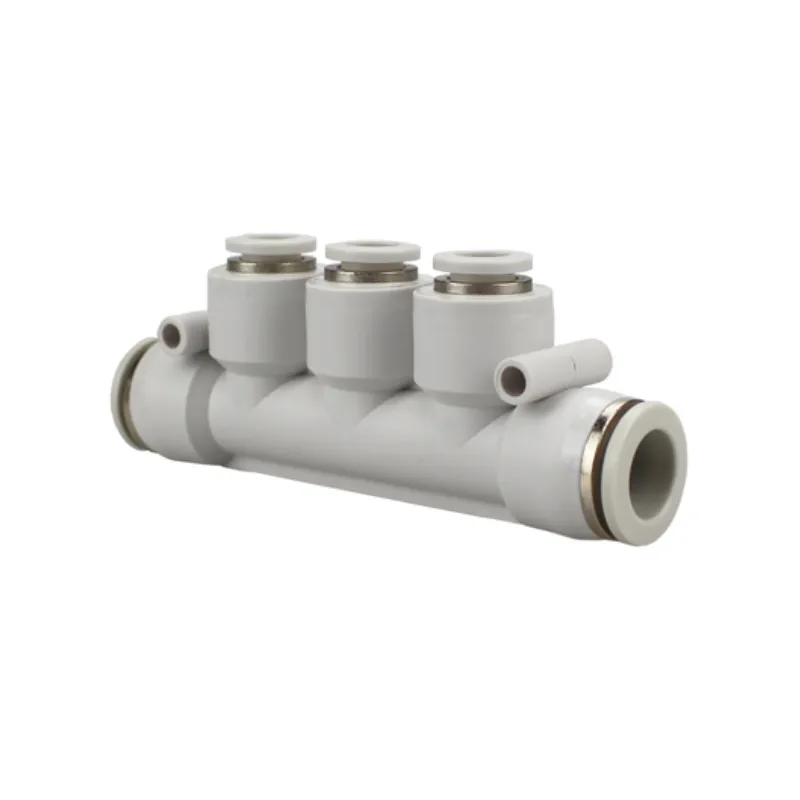

Hered PK Series 5 Ports Quick Connector One Pneumatic Air Fittings Plastic Pipe Joint
The Hered PK Series 5 Ports Quick Connector offers a compact and efficient solution for creating multi-way connections in pneumatic systems. These high-quality plastic fittings combine durability with versatility, making them an excellent choice for various industrial applications requiring multiple port connections.
Key Features
- 5-port design for versatile pneumatic connections
- Compact volume for space-saving installations
- High pressure and tensile resistance
- Quick-connect functionality for easy installation
- Compatible with PU and Nylon tubing
- Durable plastic construction for long-lasting performance
- Wide range of models to suit various tube sizes
Technical Specifications
| Parameter | Specification |
|---|---|
| Fluid | Air |
| Max. Pressure | 1.32Mpa (13.5kgf/cm²) |
| Normal Pressure Range | 0~0.9Mpa (0~9.2kgf/cm²) |
| Low Pressure Range | -99.99~0Mpa (-750~0mmHg) |
| Operating Temperature | 0°C ~ 60°C |
| Tube Outer Diameters | 4mm, 6mm, 8mm, 10mm, 12mm |
| Metric Type | φD | φD1 | φD2 | H1 | φd |
| PK4 | 4 | 62.4 | 36.8 | 12 | 2.5 |
| PK6 | 6 | 68.6 | 54.8 | 17.5 | 4 |
| PK8 | 8 | 80.5 | 54.8 | 17.5 | 4 |
| PK10 | 10 | 91.4 | 62.5 | 20.4 | 4 |
| PK12 | 12 | 112 | 71 | 23 | 4 |
Available Models
The PK Series includes a range of sizes to accommodate various tubing diameters:
- PK-4
- PK-6
- PK-8
- PK-10
- PK-12
Applications
Ideal for various pneumatic systems in:
- Industrial automation
- Manufacturing processes
- Automotive industry
- Food and beverage processing
- Packaging machinery
- Robotics
- General pneumatic applications requiring multiple port connections
Benefits
- Versatile 5-port design for complex pneumatic systems
- Space-saving configuration for compact installations
- High pressure resistance for reliable performance
- Quick and easy installation with push-to-connect design
- Durable construction for long-lasting use
- Wide range of sizes to suit various application needs
- Reduced downtime and maintenance costs
- Quality assurance for reliable performance
Quality Assurance
Hered Pneumatic Co., LTD. ensures high-quality production and adherence to industry standards. Our PK Series fittings are designed for reliable performance, excellent durability, and versatile use in various industrial environments.
For detailed sizing information, installation guidelines, or to place an order, please contact our customer support team.
