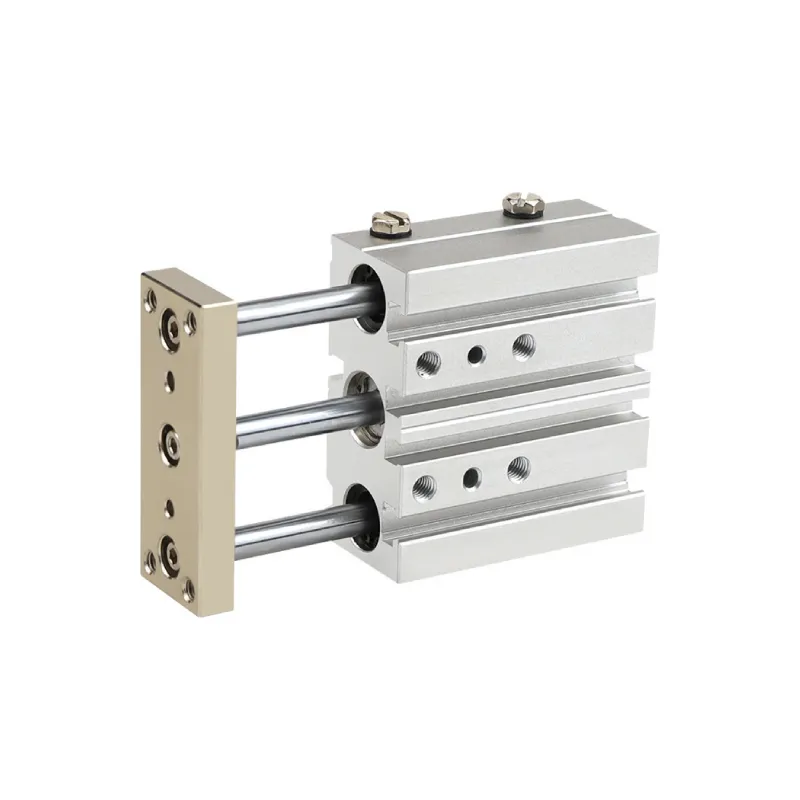

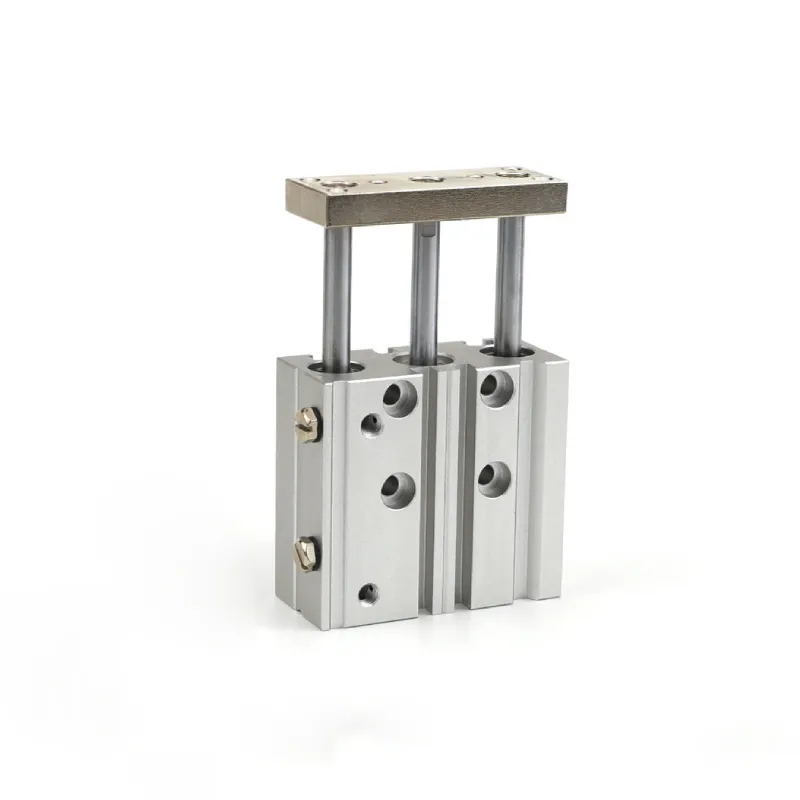

Hered TCM Three Shaft Pneumatic Guide Cylinder

The Hered TCM Series Three Shaft Pneumatic Guide Cylinder is a specialized pneumatic actuator designed for precision linear motion control. Its unique three-shaft design allows for complex motion combinations in compact spaces, offering superior stability, accuracy, and load-bearing capacity.

Key Features

  • Three Shaft Design: Enhances stability and reduces deflection under load.
  • Multi-Axis Capability: Enables complex motion combinations in a small footprint.
  • High Precision: Offers excellent positioning and repeatability accuracy.
  • Compact Structure: Ideal for applications with space constraints.
  • High Load Capacity: Optimized design for handling substantial workloads.
  • Excellent Sealing: Prevents air leakage, ensuring system reliability.
  • Double Acting: Operates in both directions for versatile applications.
  • Customizable: Various bore sizes and stroke lengths available.

Specifications

Bore size(mm) 6 10 12 16 20 25 32 40 50 63 80 100
Acting type Double acting
Fluid Air(to be filtered 40μm filter element)
Operating pressure 0.2-0.7MPa(29-100psi) 0.15~1.0MPa(22~145psi)
Proof pressure 1.2MPa(175psi) 1.5MPa(215psi)
Temperature℃ -20-70
Speed range mm/s 50~500 30~500 50~400
Stroke tolerance ≤100+1.0 0 >100 +1.5 0
Cushion type Bumper

Stroke

Bore size (mm) Standard stroke(mm) Max.std stroke
6 5 10 15 20 20
10 5 10 15 20 25 30 30
12 10 20 25 30 40 50 60 70 75 80 90 100 125 150 150
16 10 20 25 30 40 50 60 70 75 80 90 100 125 150 175 200 200
20 25 20 25 30 40 50 60 70 75 80 90 100 125 150 175 200 225 250 250
32 40 50 63 25 30 40 50 60 70 75 80 90 100 125 150 175 200 225 250 250
80 100 25 30 40 50 60 70 75 80 90 100 125 150 175 200 225 250 250

The Hered TCM Three Shaft Pneumatic Guide Cylinder is ideal for applications in automated production lines, robotics, aerospace, and other industries requiring high-precision linear motion control and stability under load.

Contact us for product catalogs, technical specifications, quotations, and more information.
