Product Overview

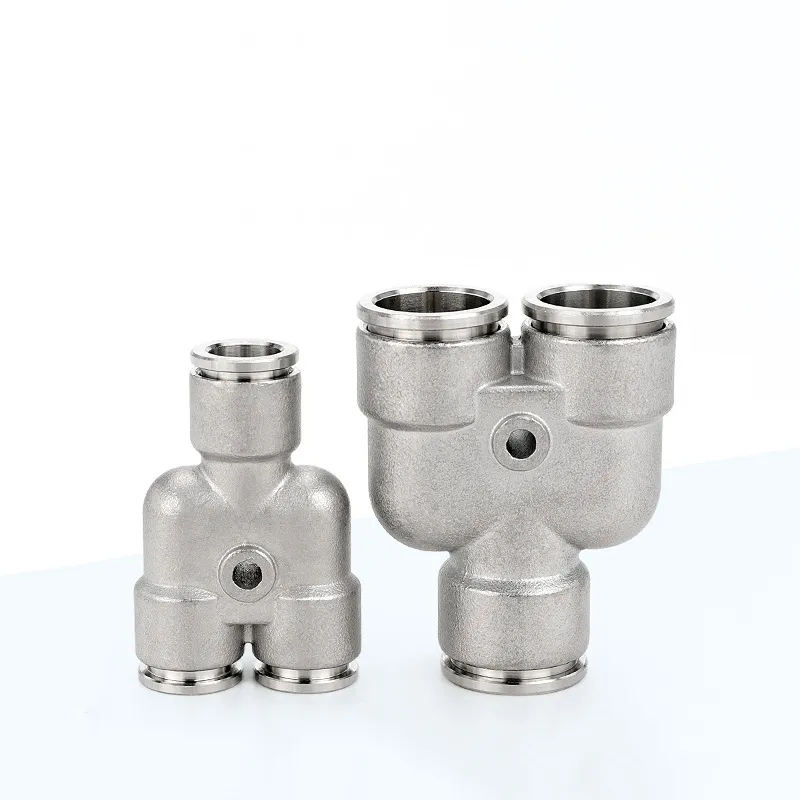

The Hered PY Stainless Steel Y-type 3-Way Equal Diameter Push In Fitting is an advanced connector designed for secure and reliable connections in pneumatic and fluid systems. This innovative fitting combines durability, ease of installation, and versatility, making it an essential component for various industrial applications.
Key Specifications
| Feature | Specification |
|---|---|
| Material | High-quality stainless steel (AISI 316L) |
| Design | Y-type configuration for 3-way equal diameter connections |
| Connection Type | Push-in design |
| Working Pressure | -0.99 to 10 Bar (-14 to 150 PSI) |
| Temperature Range | -15°C to 220°C (5°F to 428°F) |
| Vacuum Rating | Up to 750mmHg |
| Seals | FPM (standard) |
Available Sizes
| Item Code | Tube Size (MM) | Item Code | Tube Size (Inch) |
|---|---|---|---|
| SSPY4 | 4 | SSPY5/32 | 5/32 |
| SSPY6 | 6 | SSPY1/4 | 1/4 |
| SSPY8 | 8 | SSPY5/16 | 5/16 |
| SSPY10 | 10 | SSPY3/8 | 3/8 |
| SSPY12 | 12 | SSPY1/2 | 1/2 |
| SSPY16 | 16 |
Key Features
- Corrosion Resistance: Made from AISI 316L stainless steel for superior durability in harsh environments.
- Easy Installation: Push-in design allows for quick and tool-free assembly.
- Versatile Configuration: Y-type design enables equal distribution of air or fluids.
- High-Performance Seals: FPM seals ensure reliability at high temperatures.
- Wide Compatibility: Suitable for use with various tubing materials.
- Quality Assurance: 100% leak-tested before delivery.
- Certifications: REACH, RoHS, and Food compliance certified.
Applications
Hered PY fittings are ideal for use in:
- Pneumatic systems
- Fluid transfer applications
- Industrial automation
- Chemical processing
- Food and beverage industry
- Pharmaceutical manufacturing
- Medical equipment
Compatible Tubing Materials
- PA11, PA12, PA6
- PE (Polyethylene)
- PU (Polyurethane)
- PTFE (Polytetrafluoroethylene)
- FEP (Fluorinated Ethylene Propylene)
Benefits
- Enhances system reliability with secure, leak-free connections
- Improves efficiency in assembly and maintenance processes
- Offers exceptional performance in corrosive and high-temperature environments
- Provides flexibility in system design with multiple size options
- Ensures compliance with industry standards for safety and quality
The Hered PY Stainless Steel Y-type 3-Way Equal Diameter Push In Fitting represents a significant advancement in fluid and pneumatic connection technology. Its robust design, versatile application range, and superior performance make it an essential component for businesses seeking to enhance the reliability, efficiency, and safety of their industrial systems, particularly in demanding environments.
