PU Series Pneumatic Fittings

Hered PU Series Straight Union One Touch Push-in Pipe Air Plastic Pneumatic Fittings: Efficient connectors for pneumatic systems. Features one-touch installation, corrosion-resistant plastic construction, and excellent sealing. Available in sizes PU-4 to PU-16, compatible with 4mm to 16mm tubing. Operates at 0°C-60°C with max pressure 1.32Mpa. Suitable for normal (0-0.9Mpa) and low pressure (-99.99-0Mpa) ranges. Compatible with PU/nylon tubing. Ideal for industrial automation, manufacturing, automotive, packaging, and food processing industries. Offers quick installation, flexible adjustment, and secure connections. Strong plastic clip ensures reliable tube retention. Engineered for durability and easy maintenance in various pneumatic applications. Perfect for industries requiring fast, adaptable, and leak-free air pipe connections. Combines push-in convenience with high wear resistance for optimal performance in demanding industrial environments. Cost-effective solution for efficient pneumatic system assembly and reduced downtime.

Send your requirements, we will quote for you within 12 hours

Tel:+8618066396588
Whatsapp:+8618066396588
Email:sales@hered.com
Get quote

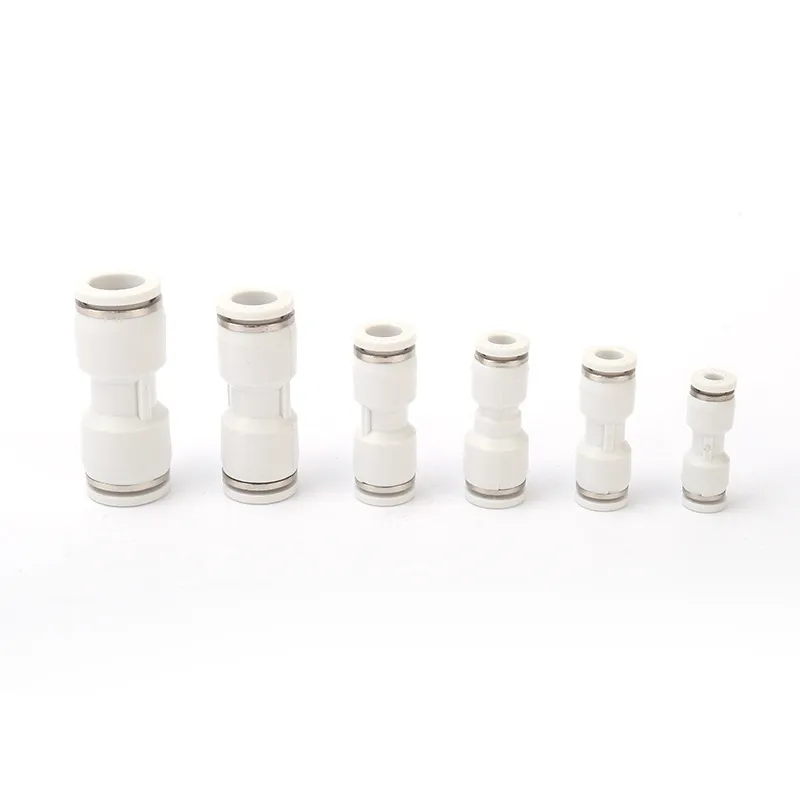

Hered PU Series Straight Union One Touch Push-in Pipe Air Plastic Pneumatic Fittings

The Hered PU Series Straight Union One Touch Push-in Pipe Air Plastic Pneumatic Fittings offer a reliable and efficient solution for connecting pneumatic pipes in various industrial applications. These high-quality fittings combine ease of use with durability, making them an excellent choice for pneumatic systems.

Key Features

  • One-touch push-in design for quick and easy installation
  • High strength and wear resistance
  • Corrosion-resistant plastic construction
  • Excellent sealing performance
  • Tool-free installation and removal
  • Wide range of applications in pneumatic systems
  • Strong plastic clip for secure tubing connection
  • Flexible pipeline direction adjustment after installation

Technical Specifications

Parameter Specification
Fluid Air
Max. Pressure 1.32Mpa (13.5kgf/cm²)
Normal Pressure Range 0~0.9Mpa (0~9.2kgf/cm²)
Low Pressure Range -99.99~0Mpa (-750~0mmHg)
Operating Temperature 0°C ~ 60°C
Applicable Tube PU/Nylon tube
Tube Outer Sizes 4mm, 6mm, 8mm, 10mm, 12mm, 14mm, 16mm
Metric Type φD B
PU-4 4 32.5
PU-6 6 35.5
PU-8 8 38
PU-10 10 47
PU-12 12 47.5
PU-14 14 47.5
PU-16 16 67

Available Models

The PU Series includes a range of sizes to accommodate various tubing diameters:

  • PU-4 (4mm), PU-6 (6mm), PU-8 (8mm)
  • PU-10 (10mm), PU-12 (12mm), PU-14 (14mm), PU-16 (16mm)

Applications

Ideal for various pneumatic systems in:

  • Industrial automation
  • Manufacturing processes
  • Automotive industry
  • Packaging machinery
  • Food and beverage processing
  • General pneumatic applications

Benefits

  • Quick and easy installation with one-touch push-in design
  • Long service life due to high-quality materials and construction
  • Excellent sealing performance to prevent leaks
  • Versatile use with different pneumatic components
  • Cost-effective solution for pneumatic pipe connections
  • Reduced maintenance and downtime

Quality Assurance

Hered Pneumatic Co., LTD. ensures high-quality production and adherence to international standards. Our PU Series fittings are designed for easy installation, reliable performance, and long-lasting durability in various industrial environments.

For detailed sizing information, installation guidelines, or to place an order, please contact our customer support team.

PDF Download
