Overview

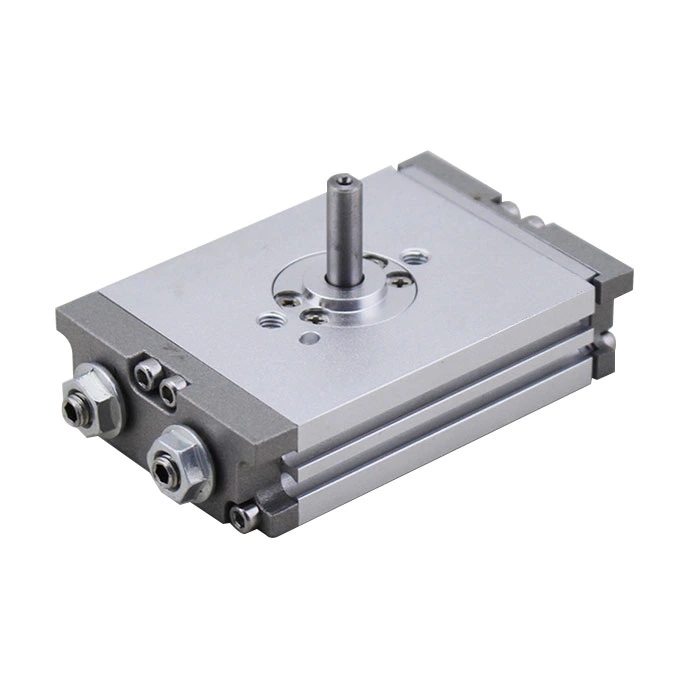

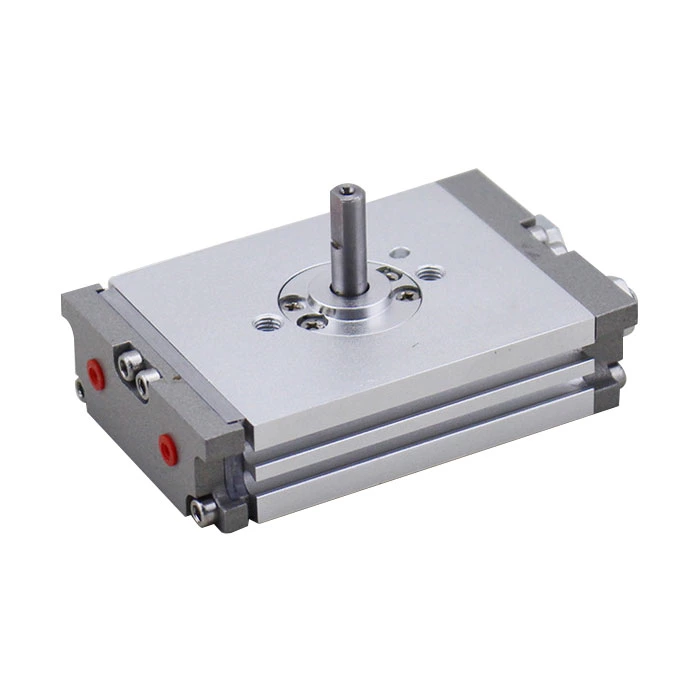

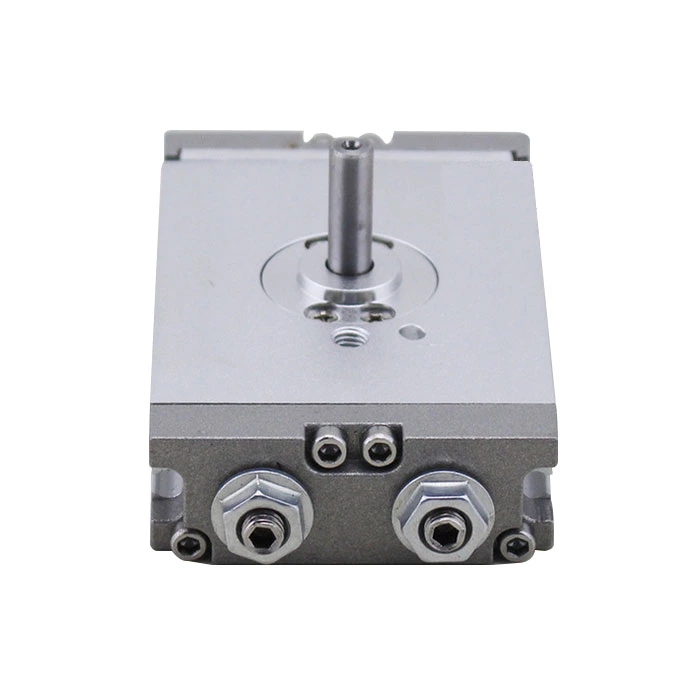

The HERED CRQB Rotary Actuator is a high-performance pneumatic device designed for clean environments and precision rotational control. This silvery white actuator offers enhanced features compared to standard models, making it ideal for various industrial applications requiring precise movement and cleanliness.
Key Features
- Silvery white finish suitable for clean environments
- Double rack design for zero backlash operation
- Integrated flange body for easy mounting
- Positioning hole for simplified centering
- Flexible piping direction
- Dual magnetic switch mounting on the same side
Technical Specifications
| Parameter | Specification |
|---|---|
| Bore Sizes | 10, 15, 20, 30, 40mm |
| Motion Pattern | Double acting |
| Operating Pressure | 0.15 to 0.7 MPa |
| Swing Angle | 90°, 180° |
| Temperature Range | 0°C to 60°C |
| Lubrication | Non-lube |
Applications
The Hered CRQB Rotary Actuator is suitable for:
- Clean room manufacturing processes
- Precision assembly lines
- Food and pharmaceutical industries
- Semiconductor manufacturing
- Automated inspection systems
Installation and Customization
The CRQB series offers:
- Adjustable angle range of ±5°
- Easy installation with integrated flange body
- Cushioning options: Rubber bumper or air cushion (size-dependent)
- Compatible with various magnetic switch types
Ordering Information
When ordering, specify the bore size, swing angle, and magnetic switch type. For example:
- CDRQBW10-90D: 10mm bore, 90° angle, built-in magnet type (D-90AL)
- CDRQBS40-180: 40mm bore, 180° angle, single rod built-in magnet type
For detailed specifications, dimensions, and torque diagrams, please refer to our product catalog or contact our technical support team.
