PM series pneumatic fittings

Hered PM Series Straight Fitting Pneumatic Hose Quick Connector Brass Bulkhead Fitting: Durable bulkhead connectors for efficient pneumatic systems. Features nickel-plated brass construction, quick-connect design, and 360° rotation capability. Available in sizes PM-4 to PM-16, compatible with 4mm to 16mm tubing. Operates at 0°C-60°C with max pressure 1.32Mpa. Suitable for normal (0-0.9Mpa) and low pressure (-99.99-0Mpa) ranges. Compatible with PU, PE, and nylon tubing. Ideal for industrial automation, manufacturing, automotive, food processing, and pharmaceutical industries. Offers corrosion resistance, easy installation, and flexible positioning. CE, ROHS, and CCC certified for quality assurance. Perfect for applications requiring reliable bulkhead connections in diverse pneumatic setups. Combines durability with user-friendly design for optimal performance in demanding industrial environments. Engineered for long-lasting reliability and efficient system assembly in various pneumatic applications, ensuring reduced maintenance and downtime.

Send your requirements, we will quote for you within 12 hours

Tel:+8618066396588
Whatsapp:+8618066396588
Email:sales@hered.com
Get quote

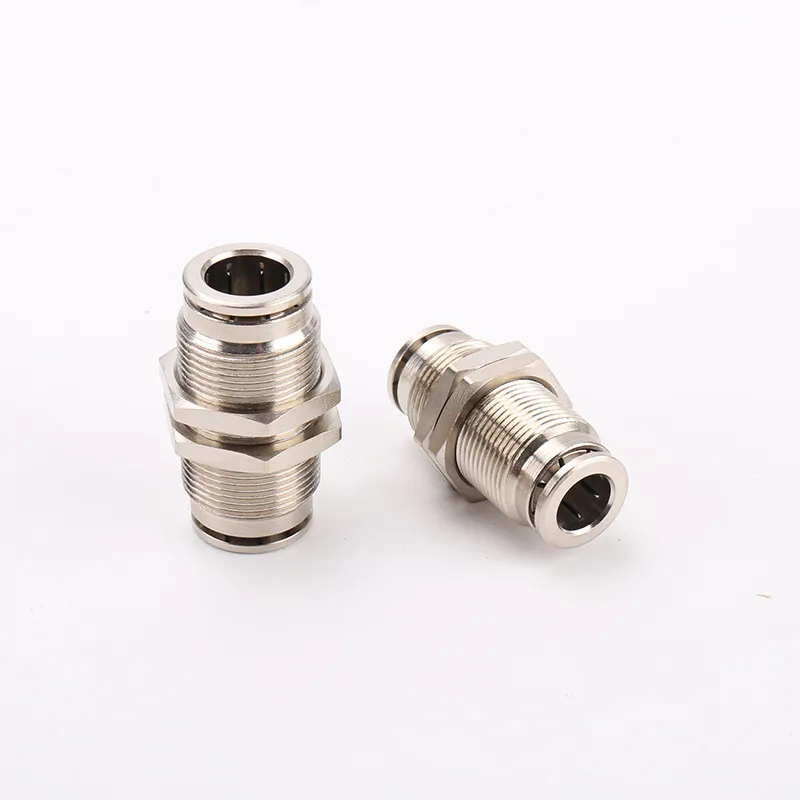

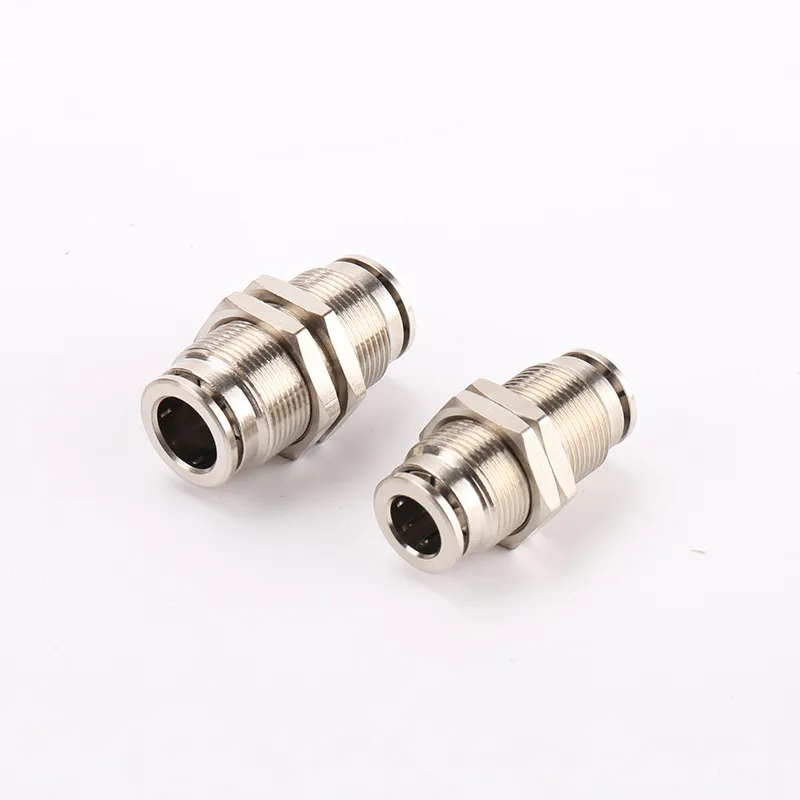

Hered PM Series Straight Fitting Pneumatic Hose Quick Connector Brass Bulkhead Fitting

The Hered PM Series Straight Fitting Pneumatic Hose Quick Connector Brass Bulkhead Fitting offers a reliable and efficient solution for connecting pneumatic hoses in various industrial applications. These high-quality fittings combine durability with ease of use, making them an excellent choice for pneumatic systems requiring bulkhead connections.

Key Features

  • Nickel-plated brass construction for corrosion resistance
  • Quick-connect design for easy installation
  • 360° rotation capability for flexible positioning
  • Wide variety of models to suit various pneumatic piping needs
  • Compatible with PU, PE, and Nylon tubing
  • CE, ROHS, and CCC certified

Technical Specifications

Parameter Specification
Fluid Air, Vacuum
Max. Pressure 1.32Mpa (13.5kgf/cm²)
Normal Pressure Range 0~0.9Mpa (0~9.2kgf/cm²)
Low Pressure Range -99.99~0Mpa (-750~0mmHg)
Operating Temperature 0°C ~ 60°C
Tube Outer Sizes 4mm, 6mm, 8mm, 10mm, 12mm, 14mm, 16mm
Metric Type A B H*2
PM-4 29 M12×1 14
PM-6 33 M14×1 17
PM-8 34 M16×1 19
PM-10 37 M20×1 24
PM-12 40 M22×1 27

Available Models

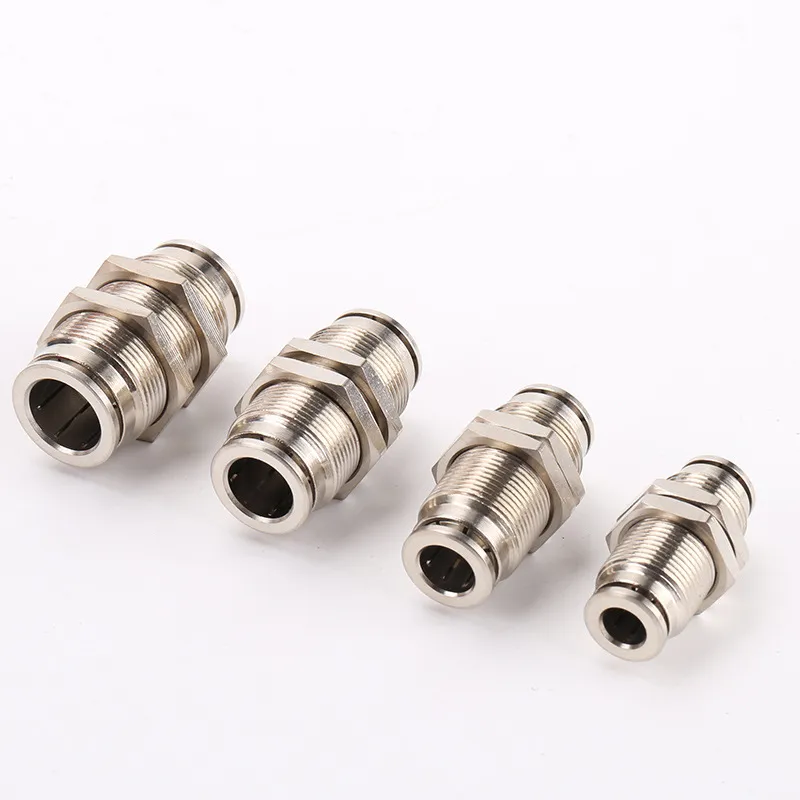

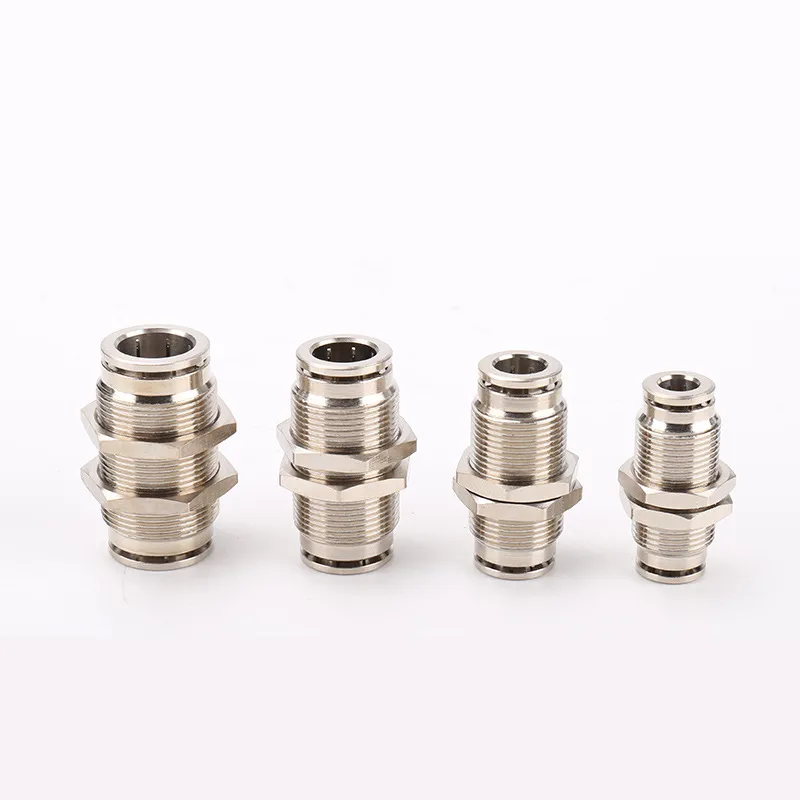

The PM Series includes a range of sizes to accommodate various tubing diameters:

  • PM-4 (4mm), PM-6 (6mm), PM-8 (8mm)
  • PM-10 (10mm), PM-12 (12mm), PM-14 (14mm), PM-16 (16mm)

Applications

Ideal for various pneumatic systems in:

  • Industrial automation
  • Manufacturing processes
  • Automotive industry
  • Food and beverage processing
  • Pharmaceutical production
  • Pneumatic control systems
  • General industrial machinery

Benefits

  • Quick and easy installation with push-in design
  • Corrosion-resistant nickel-plated brass construction
  • Flexible positioning with 360° rotation capability
  • Reliable performance in various industrial environments
  • Versatile use with different pneumatic components
  • Reduced maintenance and downtime

Quality Assurance

Hered Pneumatic Co., LTD. ensures high-quality production and adherence to international standards. Our PM Series fittings are designed for easy installation, reliable performance, and long-lasting durability in various industrial environments.

For detailed sizing information, installation guidelines, or to place an order, please contact our customer support team.
