Product Overview

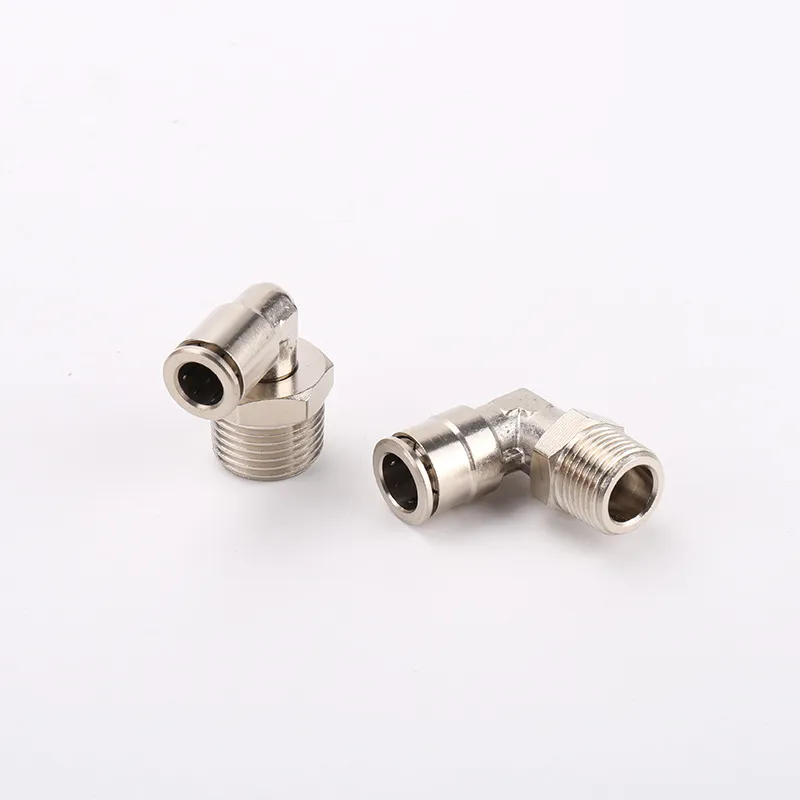

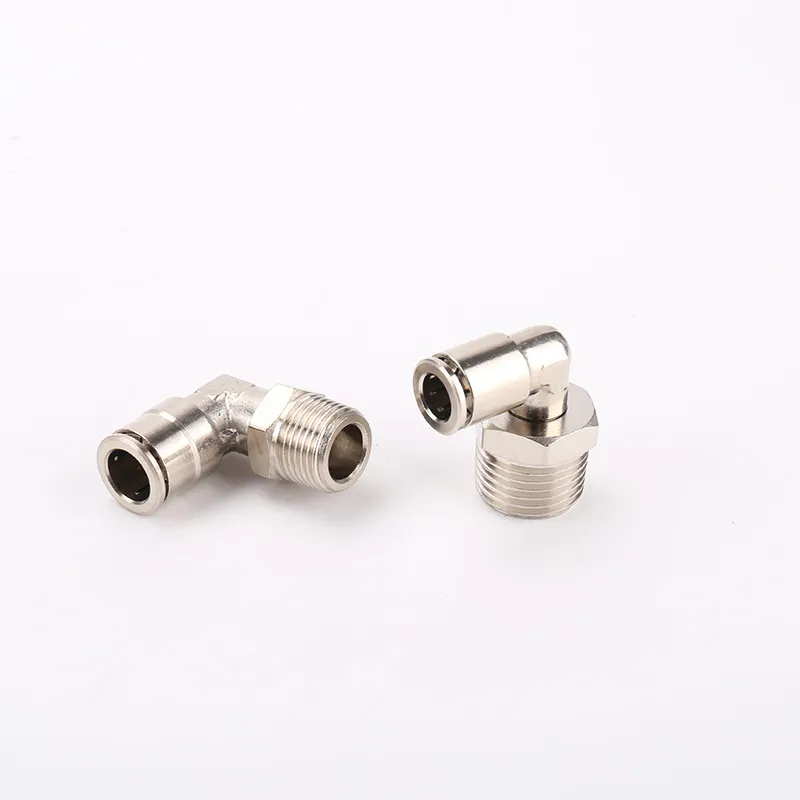

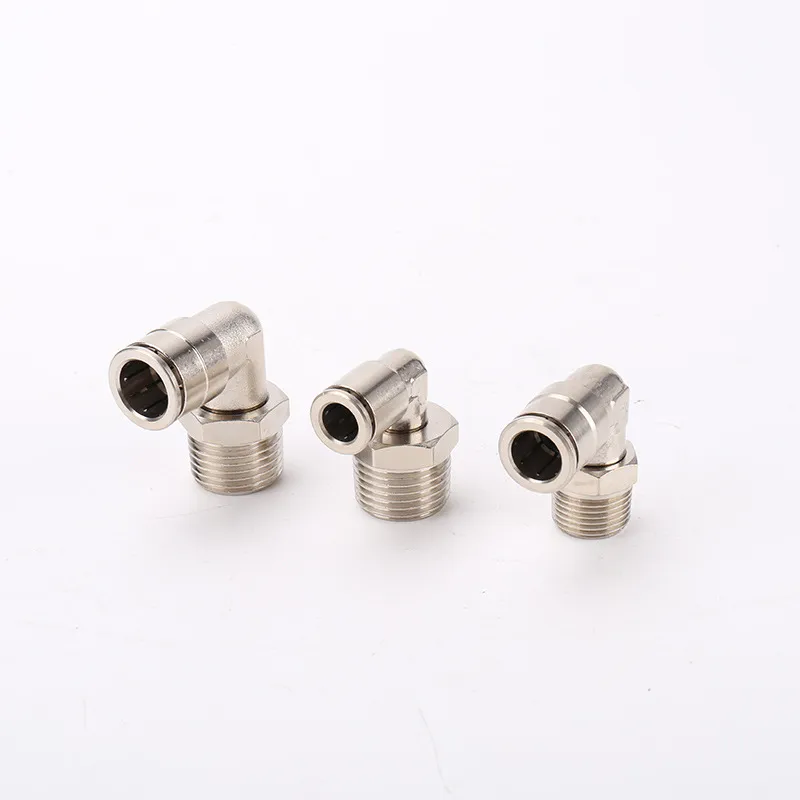

The Hered PL Series Brass Male Elbow Pneumatic Fittings are high-quality 90-degree connectors designed for efficient and reliable connections in various pneumatic systems. These fittings combine durability, ease of installation, and versatility, making them essential components for industrial and automation applications.
Key Specifications
| Feature | Specification |
|---|---|
| Material | Durable brass |
| Design | Male threaded elbow (90-degree) |
| Working Fluid | Clean compressed air, vacuum |
| Max Working Pressure | 1.32 MPa (13.5 kgf/cm²) |
| Normal Working Pressure | 0-0.9 MPa (0-9.2 kgf/cm²) |
| Low Pressure Range | -99.99~0 kPa (-750~0 mmHg) |
| Temperature Range | 0~60°C |
| Compatible Tubing | PU tubing, nylon tubing |
Key Features
- Durable Construction: Made from high-quality brass for long-lasting performance and corrosion resistance.
- 90-Degree Design: Allows for efficient routing of air lines in tight spaces.
- Male Threaded End: Enables easy connection to female threaded components.

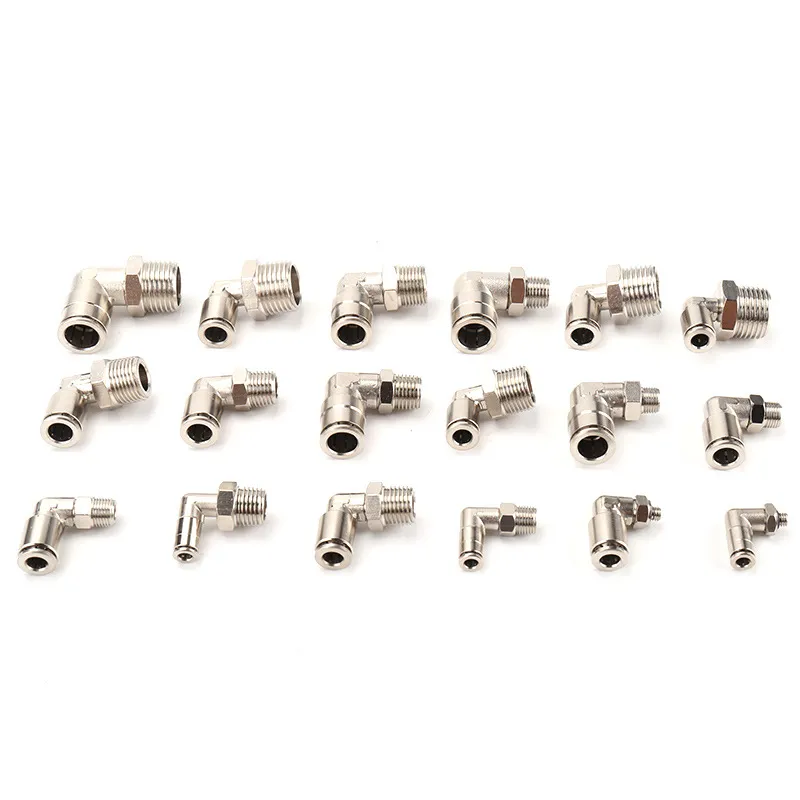

- Multiple Sizes: Available in various tube OD sizes to accommodate different system requirements.
- High Pressure Capacity: Suitable for use in systems up to 1.32 MPa.
- Wide Temperature Range: Performs efficiently in various environmental conditions.
Applications
Hered PL Series Brass Male Elbow Pneumatic Fittings are ideal for use in:
- Industrial pneumatic systems
- Air compressor setups
- Automation and control systems
- Manufacturing equipment
- Pneumatic tools and machinery
- General compressed air applications
Benefits
- Enhances system flexibility with 90-degree routing options
- Improves efficiency in assembly and maintenance processes
- Provides reliable performance in various pressure conditions
- Offers compatibility with standard pneumatic components
- Ensures long-term durability with brass construction
Installation Tips
For optimal performance of Hered PL Series Brass Male Elbow Pneumatic Fittings:
- Use appropriate thread sealant or PTFE tape on male threads
- Ensure proper alignment when connecting to avoid thread damage
- Do not overtighten to prevent damage to the fitting or connected components
- Regularly inspect for leaks and tighten as necessary
- Follow manufacturer guidelines for specific installation requirements
The Hered PL Series Brass Male Elbow Pneumatic Fittings represent a reliable solution for pneumatic connections. Their robust design, versatile application range, and superior performance make them essential components for businesses seeking to enhance the efficiency and reliability of their pneumatic systems across various industrial applications.
