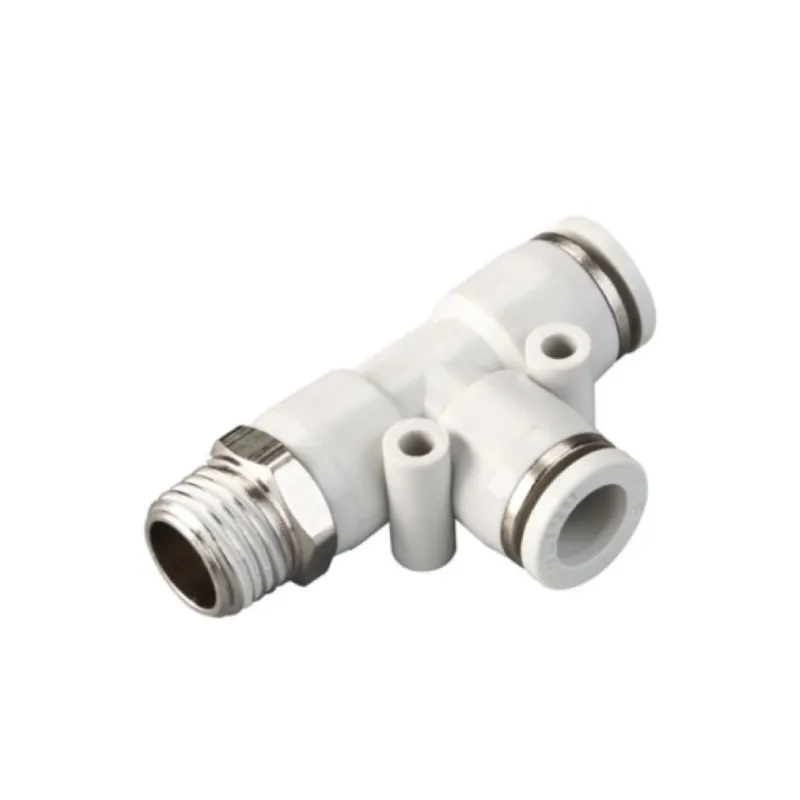

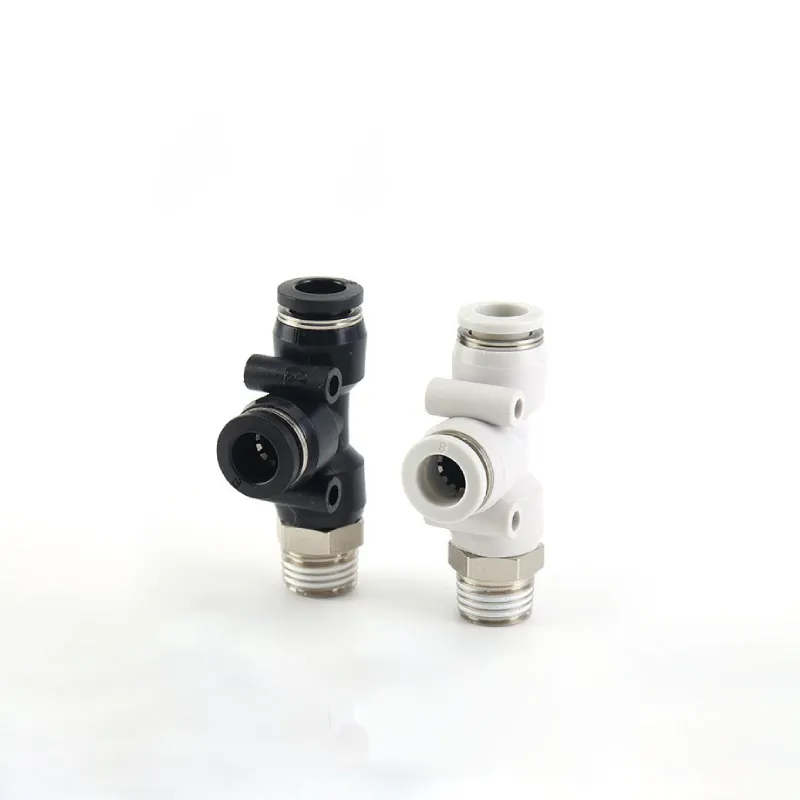

Hered PD Series T-type Male Thread Push-in Type Straight Three-Way One Touch Pneumatic Fittings
The Hered PD Series T-type Male Thread Push-in Type Straight Three-Way One Touch Pneumatic Fittings offer a versatile and efficient solution for creating three-way connections in pneumatic and hydraulic systems. These high-quality fittings combine durability with ease of installation, making them an excellent choice for various industrial applications.
Key Features
- T-type design for three-way connections with male thread
- Push-in, one-touch installation for quick and easy setup
- Nickel-plated brass components for corrosion and contamination resistance
- Pre-applied thread sealant on taper threads
- Recessed captive O-ring on parallel threads for optimal sealing
- Silicone-free U-packing for immediate quality sealing
- Compatible with PU and Nylon tubing
- Suitable for air and water applications
Technical Specifications
| Parameter | Specification |
|---|---|
| Fluid | Air, Water |
| Max. Pressure | 1.32Mpa (13.5kgf/cm²) |
| Normal Pressure Range | 0~0.9Mpa (0~9.2kgf/cm²) |
| Low Pressure Range | -99.99~0Mpa (-750~0mmHg) |
| Operating Temperature | 0°C ~ 60°C |
| Thread Sizes | M5, 1/8″, 1/4″, 3/8″, 1/2″ |
| Tube Outer Sizes | 4mm, 6mm, 8mm, 10mm, 12mm, 14mm, 16mm |
| Metric Type | φD | R | A | B | H | J | φd |
| PD4-M5 | 4 | M5 | 4.5 | 37 | 18.5 | 10 | / |
| PD4-01 | 4 | R1/8 | 7 | 40.5 | 18.5 | 10 | / |
| PD4-02 | 4 | R1/4 | 9 | 42.5 | 18.5 | 14 | / |
| PD6-M5 | 6 | M5 | 4.5 | 41 | 21 | 12 | 3.5 |
| PD6-01 | 6 | R1/8 | 7 | 44.5 | 21 | 12 | 3.5 |
| PD6-02 | 6 | R1/4 | 9 | 46.5 | 21 | 14 | 3.5 |
| PD6-03 | 6 | R3/8 | 10 | 48.5 | 21 | 17 | 3.5 |
| PD6-04 | 6 | R1/2 | 11 | 49 | 21 | 21 | 3.5 |
| PD8-01 | 8 | R1/8 | 8 | 47 | 23 | 14 | 4.5 |
| PD8-02 | 8 | R1/4 | 10 | 48 | 23 | 14 | 4.5 |
| PD8-03 | 8 | R3/8 | 10 | 50.5 | 23 | 17 | 4.5 |
| PD8-04 | 8 | R1/2 | 11 | 51.5 | 23 | 21 | 4.5 |
| PD10-01 | 10 | R1/8 | 8 | 56 | 26 | 17 | 4 |
| PD10-02 | 10 | R1/4 | 10 | 58 | 26 | 17 | 4 |
| PD10-03 | 10 | R3/8 | 10 | 59 | 26 | 17 | 4 |
| PD10-04 | 10 | R1/2 | 11 | 60 | 26 | 17 | 4 |
| PD12-01 | 12 | R1/8 | 8 | 58 | 27 | 19 | 5 |
| PD12-02 | 12 | R1/4 | 10 | 60 | 27 | 19 | 5 |
| PD12-03 | 12 | R3/8 | 10 | 61 | 27 | 19 | 5 |
| PD12-04 | 12 | R1/2 | 11 | 62 | 27 | 21 | 5 |
Available Models
The PD Series includes a wide range of sizes and thread options to accommodate various tubing diameters and connection requirements. Some examples include:
- PD4-M5, PD4-01, PD4-02, PD4-03
- PD6-M5, PD6-01, PD6-02, PD6-03, PD6-04
- PD8-M5, PD8-01, PD8-02, PD8-03, PD8-04
- PD10-01, PD10-02, PD10-03, PD10-04
- PD12-01, PD12-02, PD12-03, PD12-04
- PD14-02, PD14-03, PD14-04
- PD16-02, PD16-03, PD16-04, PD16-06
Applications
Ideal for various industries and applications, including:
- Pneumatic control systems
- Hydraulic systems
- Industrial automation
- Manufacturing processes
- Automotive industry
- Food and beverage processing
- Chemical processing
Benefits
- Fast assembly with no need for tools
- Extended life due to corrosion-resistant nickel-plated brass components
- Optimal sealing with pre-applied thread sealant and recessed O-rings
- Versatile three-way connection for complex systems
- Reduced installation time and maintenance
- Broad range of sizes for various applications
Quality Assurance
Hered Pneumatic Co., LTD. ensures high-quality production and adherence to industry standards. Our PD Series fittings are designed for reliable performance, excellent sealing, and long-lasting durability in various industrial environments.
For detailed sizing information, installation guidelines, or to place an order, please contact our customer support team.
