Product Overview

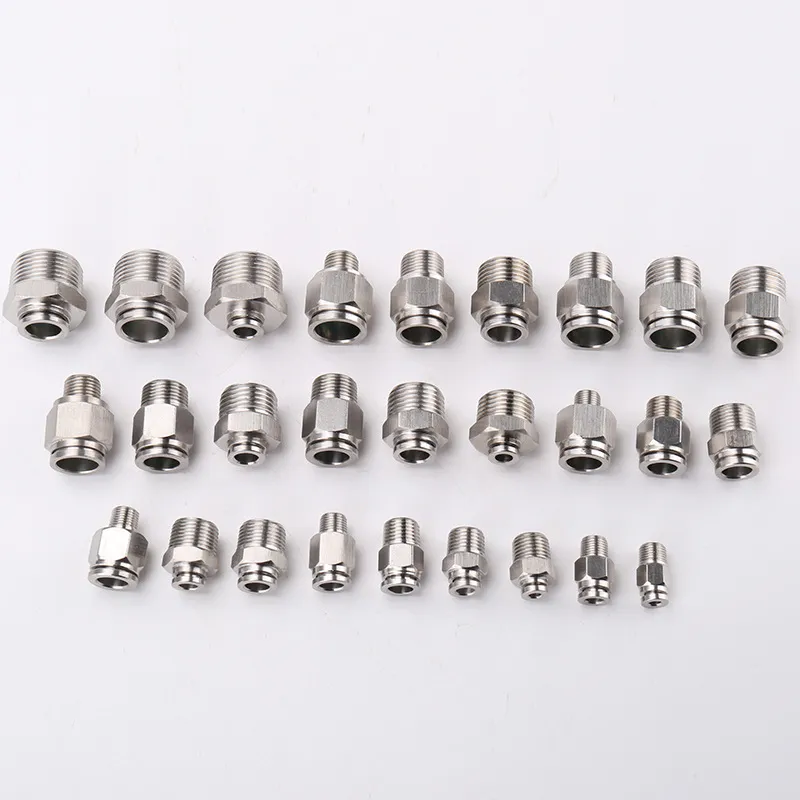

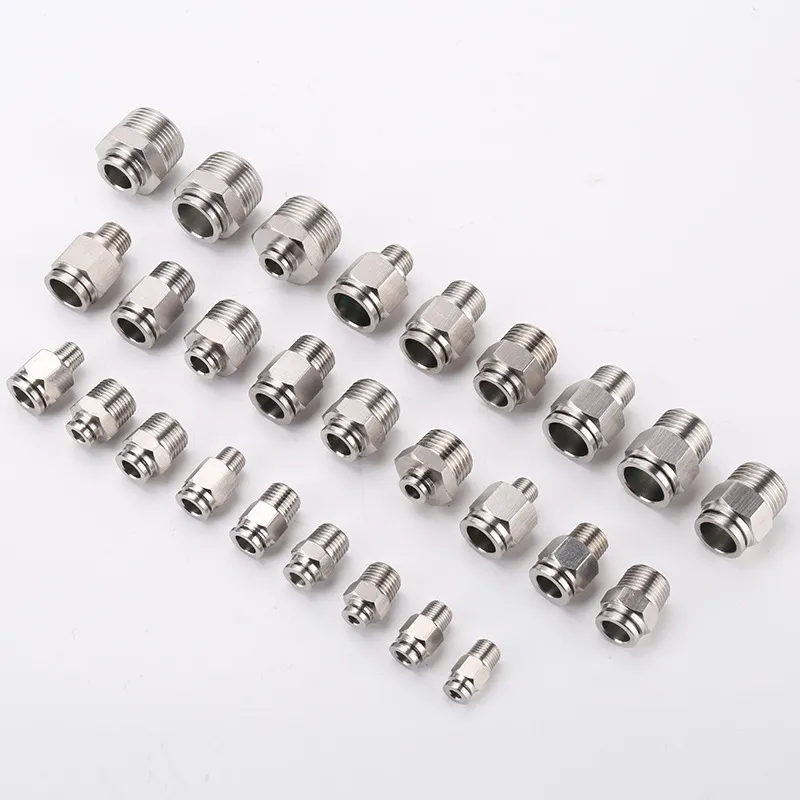

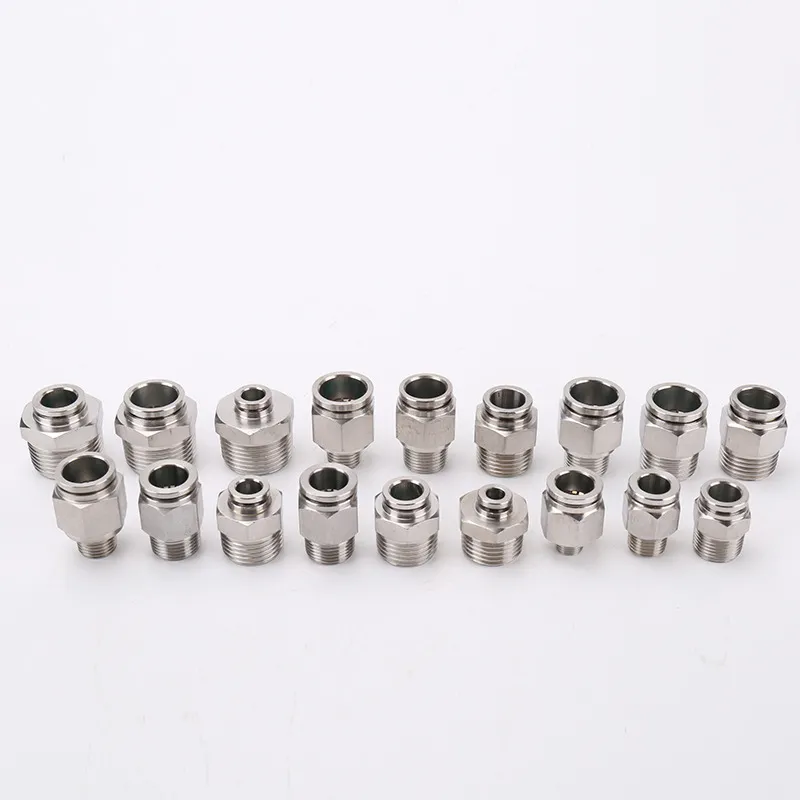

The Hered PC Series Stainless Steel Male Threaded Quick Connect Coupling is a high-performance fitting designed for efficient and reliable fluid transfer in various industrial applications. This innovative coupling combines durability, ease of use, and versatility, making it an essential component for hydraulic and pneumatic systems.
Key Specifications
| Feature | Specification |
|---|---|
| Product Name | Stainless Steel Coupling |
| Product Series | PC Series |
| Material | Stainless Steel |
| Working Pressure | 132 MPa (13.5 kgf/cm²) |
| Operating Pressure | Within 10 kg |
| Temperature Range | 0~60°C |
| Applicable Media | Water, Steam, Oil, etc. |
| Compatible Tubing | PU tubing, Nylon tubing |
Key Features
- Corrosion Resistance: Made from high-grade stainless steel for superior durability in harsh environments.
- Quick Connect Design: Allows for rapid, tool-free connections and disconnections.
- Male Threaded End: Ensures secure attachment to female threaded components or hoses.
- High Pressure Capacity: Suitable for use in high-pressure systems up to 132 MPa.
- Wide Temperature Range: Performs efficiently in temperatures from 0 to 60°C.
- Versatile Media Compatibility: Suitable for water, steam, oil, and other fluids.
Applications
Hered PC Series Stainless Steel Male Threaded Quick Connect Couplings are ideal for use in:
- Industrial manufacturing
- Hydraulic systems
- Pneumatic tools and equipment
- Automotive industry
- Maintenance and repair operations
- Fluid and gas transfer systems
- Steam applications
Advantages
- Enhanced Efficiency: Quick connect/disconnect mechanism saves time during system changes or maintenance.
- Improved Safety: Designed to operate safely under high pressure conditions.
- Versatile Application: Suitable for various fluids and gases in different industrial settings.
- Durable Performance: Stainless steel construction ensures long-lasting reliability.
- Easy Installation: Male threaded design allows for straightforward integration into existing systems.
- Compatibility: Works with both PU and nylon tubing for flexible system design.
Installation Tips
For optimal performance of Hered PC Series Stainless Steel Male Threaded Quick Connect Couplings:
- Ensure proper thread matching when connecting to female components.
- Use appropriate thread sealant or PTFE tape for a leak-free connection.
- Verify that the quick connect mechanism is fully engaged before pressurizing the system.
- Regularly inspect couplings for signs of wear or damage.
- Follow manufacturer guidelines for specific installation and maintenance requirements.
Note: All dimensions are manually measured. Please refer to the actual product for precise measurements.
The Hered PC Series Stainless Steel Male Threaded Quick Connect Coupling represents a significant advancement in fluid transfer technology. Its robust design, user-friendly operation, and versatile application range make it an essential component for businesses seeking to enhance the efficiency, safety, and reliability of their industrial fluid and pneumatic systems across various applications.
