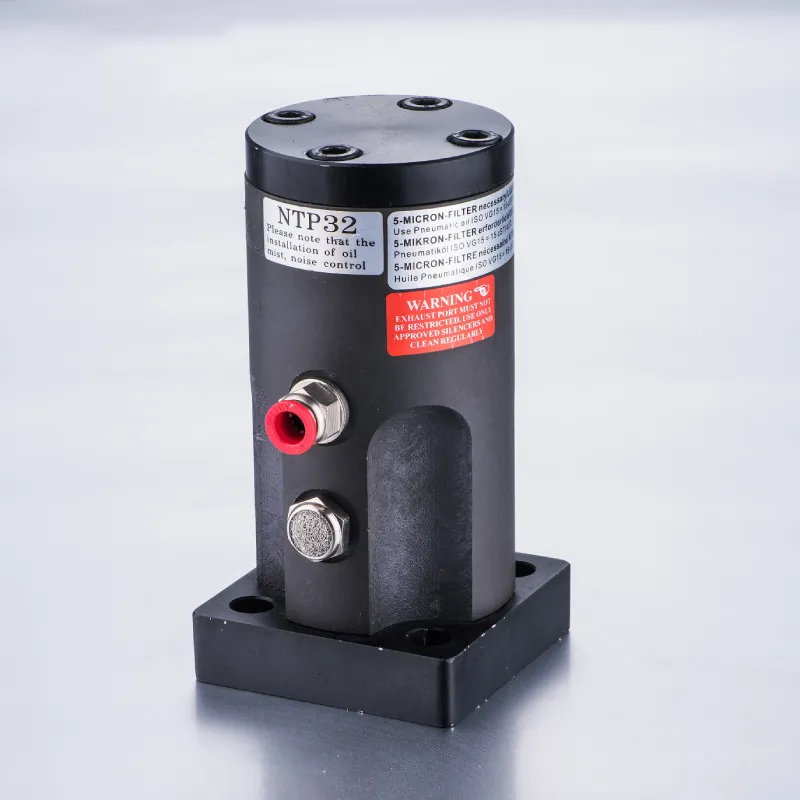

NTP Series Piston Reciprocating type ball vibrator

Hered NTP Series Piston Reciprocating Type Ball Vibrator: High-performance industrial tool for efficient material handling. Features powerful, low-noise operation with adjustable parameters. Available in models NTP25, NTP32, and NTP48, offering frequencies from 4,310 to 8,780 VPM and vibration power up to 2,030 N at 6 bar. Operates efficiently with air consumption between 33-336 l/min. Tolerates temperatures up to 150°C (200°C for special types). Ideal for hopper feed, casting industry, pipelining, compaction, and conveyor systems. Provides adjustable frequency and amplitude for tailored solutions. Compact design (0.61-3.95 kg) with high durability for severe environments. CE ISO9001:2008 compliant. Perfect for industries requiring versatile, energy-efficient, and low-noise vibration solutions in demanding applications.

Send your requirements, we will quote for you within 12 hours

Tel:+8618066396588
Whatsapp:+8618066396588
Email:sales@hered.com
Get quote

Product Overview

The Hered NTP Series Piston Reciprocating Type Ball Vibrator is a high-performance industrial tool designed for efficient material handling and processing. With its powerful yet low-noise operation and adjustable parameters, this series offers versatile solutions for various applications in demanding industrial environments.

Key Features

  • Powerful Performance: Big power output with lower noise levels.
  • Adjustable Operation: Frequency and vibration amplitude can be adjusted via regulating the working pressure.
  • Wide Frequency Range: Standard frequency from 43 to 146 times per minute.
  • Strong Excitation Force: Ranges from 150 N to 2039 N.
  • High Temperature Tolerance: Normal maximum working temperature of 150°C, with special types available for up to 200°C.
  • Durable Construction: Suitable for severe environments.

Technical Specifications

Model Frequency (V.P.M) at 6bar Vibration Power (N) at 6bar Air Consumption (l/min)
NTP25 8,780 825 33-108
NTP32 5,045 925 50-198
NTP48 4,310 2,030 96-336

Dimensional Specifications

Model A (mm) B (mm) C (mm) Weight (kg)
NTP25 90 60 46 0.61
NTP32 140 75 51 1.47
NTP48 194 100 78 3.95

Applications

  • Hopper feed
  • Casting industry
  • Pipelining
  • Compaction
  • Screening
  • Conveyor systems

Advantages

  • Versatile Performance: Adjustable frequency and amplitude for tailored solutions.
  • Energy Efficient: Optimized air consumption for cost-effective operation.
  • Low Noise Operation: Designed for quieter performance in industrial settings.
  • High Temperature Resistance: Suitable for a wide range of industrial environments.
  • Durable Design: Built to withstand severe working conditions.

Installation and Operation Tips

  • Ensure a stable air supply between 2bar to 6bar for optimal performance.
  • Adjust air pressure to achieve the desired vibration characteristics.
  • For noise reduction, consider using without an impact plate to utilize the air cushion effect.
  • Implement proper maintenance schedules to ensure long-term reliability.
  • Consider the operating temperature of your application when selecting the appropriate model.

The Hered NTP Series Piston Reciprocating Type Ball Vibrator represents a significant advancement in material handling technology. Its combination of powerful performance, adjustable operation, and durability makes it an essential tool for industries seeking to optimize their bulk material processing and flow management systems. Compliant with CE ISO9001:2008 standards, this series ensures reliability and efficiency in the most demanding industrial applications.
