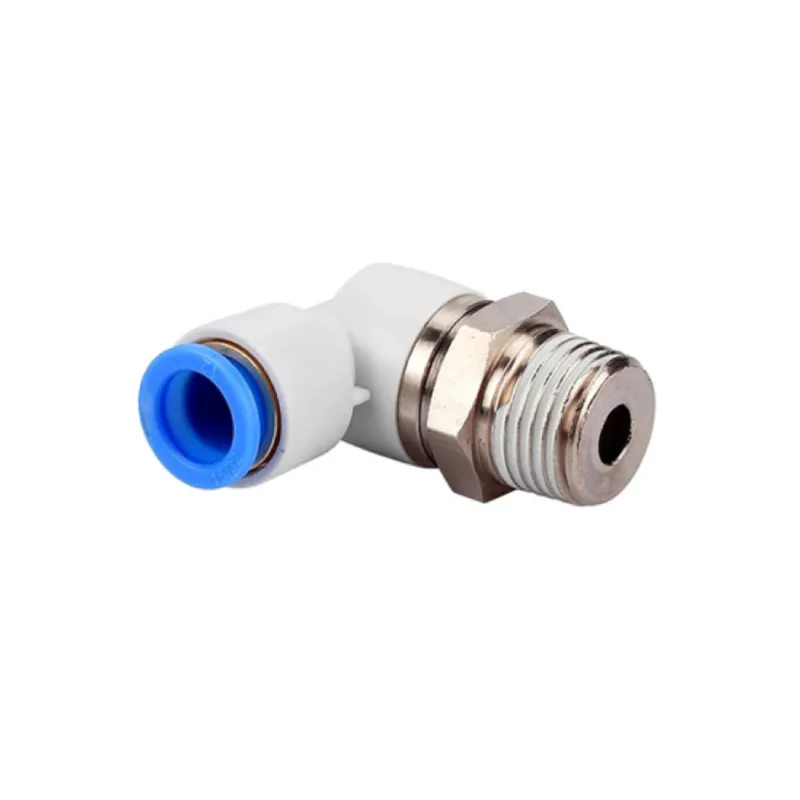

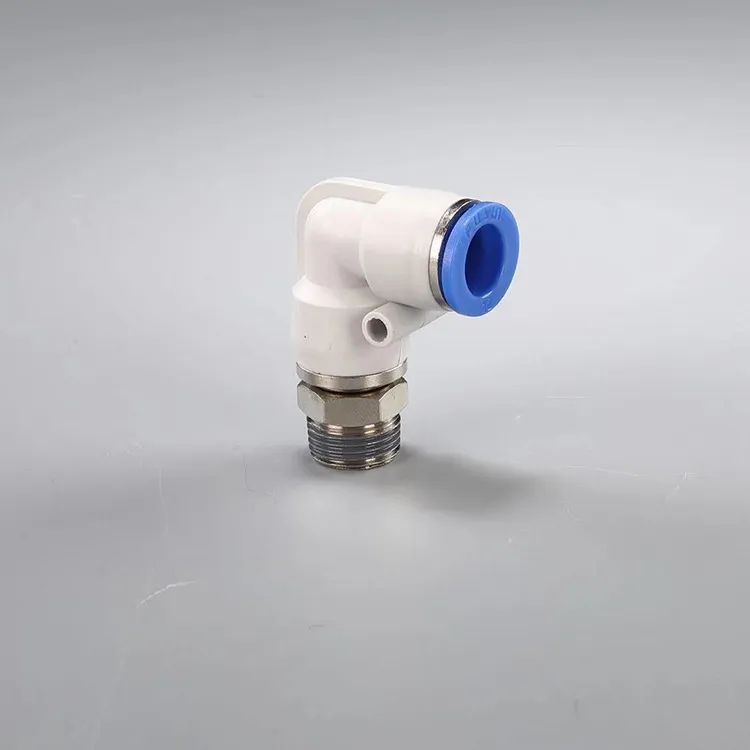

Hered NRL Series 360° Speed Rotary Plastic Quick Connect Pneumatic Fittings
The Hered NRL Series 360° Speed Rotary Plastic Quick Connect Pneumatic Fittings offer a versatile and efficient solution for various industrial pneumatic applications. These innovative fittings combine high-speed rotation capabilities with easy installation, making them ideal for dynamic and space-constrained environments.
Key Features
- 360° high-speed rotation capability
- One-touch instant tubing connections
- Elliptical release ring for easy disconnection
- Pre-coated Teflon sealant on NPT & R(BSPT) threads
- Compatible with PU and nylon tubing
- Wide range of sizes and thread options
- Suitable for confined space installations
- Durable brass construction
Technical Specifications
| Parameter | Specification |
|---|---|
| Fluid | Air |
| Max. Pressure | 1.32Mpa (13.5kgf/cm²) |
| Normal Pressure Range | 0~0.9Mpa (0~9.2kgf/cm²) |
| Low Pressure Range | -99.99~0Mpa (-750~0mmHg) |
| Operating Temperature | 0°C ~ 60°C |
| Thread Sizes | M5, M6, 1/8″, 1/4″, 3/8″, 1/2″ |
| Body Material | Brass |
| Outer size | Metric Type | Thread | H | D1 | D2 | L1 | L2 | M |
| Φ4 | NRL4-M5
(KSL04-M5) |
M5*0.8 | 8 | 10.4 | 12 | 21 | 20.5 | 16 |
| NRL4-M6
(KSL04-M6) |
M6*1.0 | 21 | ||||||
| NRL4-01
(KSL04-01S) |
1/8 | 12 | 22 | |||||
| Φ6 | NRL6-M5
(KSL06-M5) |
M5*0.8 | 8 | 12.8 | 14 | 23 | 21 | 17 |
| NRL6-M6
(KSL06-M6) |
M6*1.0 | 21.5 | ||||||
| NRL6-01
(KSL06-01S) |
1/8 | 14 | 23 | |||||
| NRL6-02
(KSL06-02S) |
1/4 | 26 | ||||||
| Φ8 | NRL8-01
(KSL08-01S) |
1/8 | 17 | 15.2 | 17 | 26 | 26.5 | 18.5 |
| NRL8-02
(KSL08-02S) |
1/4 | 29.5 | ||||||
| NRL8-03
(KSL08-03S) |
3/8 | 31 | ||||||
| Φ10 | NRL10-02
(KSL10-02S) |
1/4 | 22 | 15.5 | 22 | 31.5 | 34 | 21 |
| NRL10-03
(KSL10-03S) |
3/8 | 35 | ||||||
| NRL10-04
(KSL10-04S) |
1/2 | 38 | ||||||
| Φ12 | NRL12-03
(KSL12-03S) |
3/8 | 24 | 20.9 | 24 | 34 | 36.5 | 22 |
| NRL12-04
(KSL12-04S) |
1/2 | 39.5 |

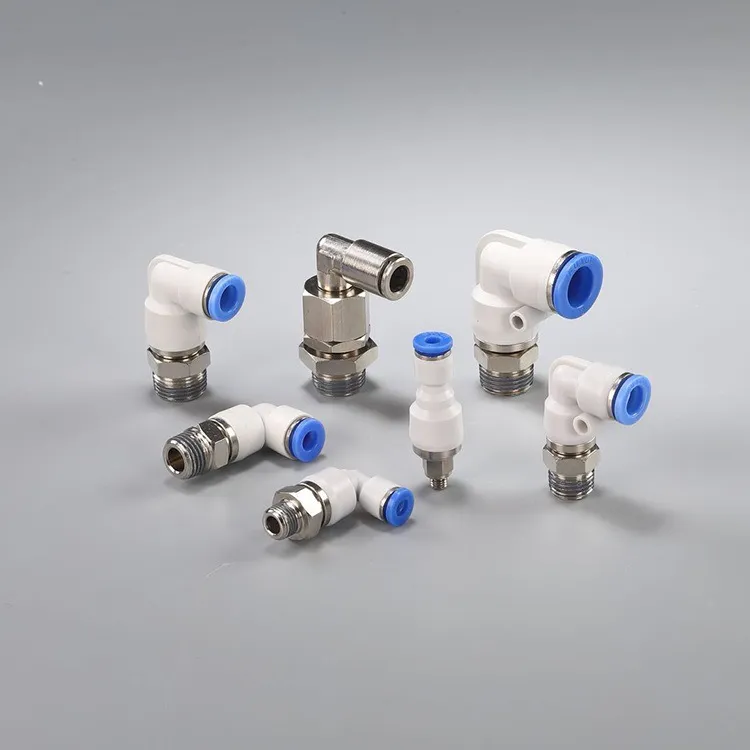

Available Models
The NRL Series includes a range of sizes to accommodate various tubing diameters:
- NRL4 (4mm), NRL6 (6mm), NRL8 (8mm)
- NRL10 (10mm), NRL12 (12mm)
Each size is available with different thread options to suit your specific application needs.
Applications
Ideal for various industries and applications, including:
- Automated production equipment
- Robotic systems
- Packaging machinery
- Automotive manufacturing
- Aerospace industry
- Food and beverage processing
Benefits
- Quick and easy installation with one-touch connections
- 360° rotation for flexible positioning
- Space-saving design for compact machinery
- Effortless disconnection with elliptical release ring
- No additional sealing required for NPT & R(BSPT) threads
- Reliable performance in demanding industrial environments
Quality Assurance
Hered Pneumatic Co., LTD. ensures high-quality production and adherence to international standards. Our NRL Series fittings are designed for easy installation, reliable performance, and long-lasting durability in high-speed rotary applications and confined spaces.
For detailed sizing information, installation guidelines, or to place an order, please contact our customer support team.
