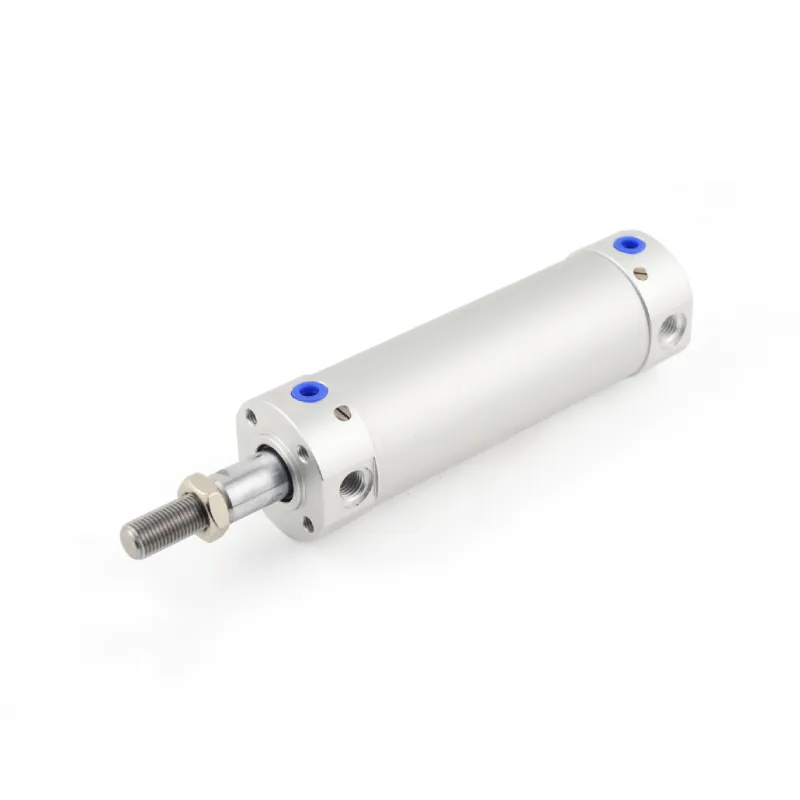

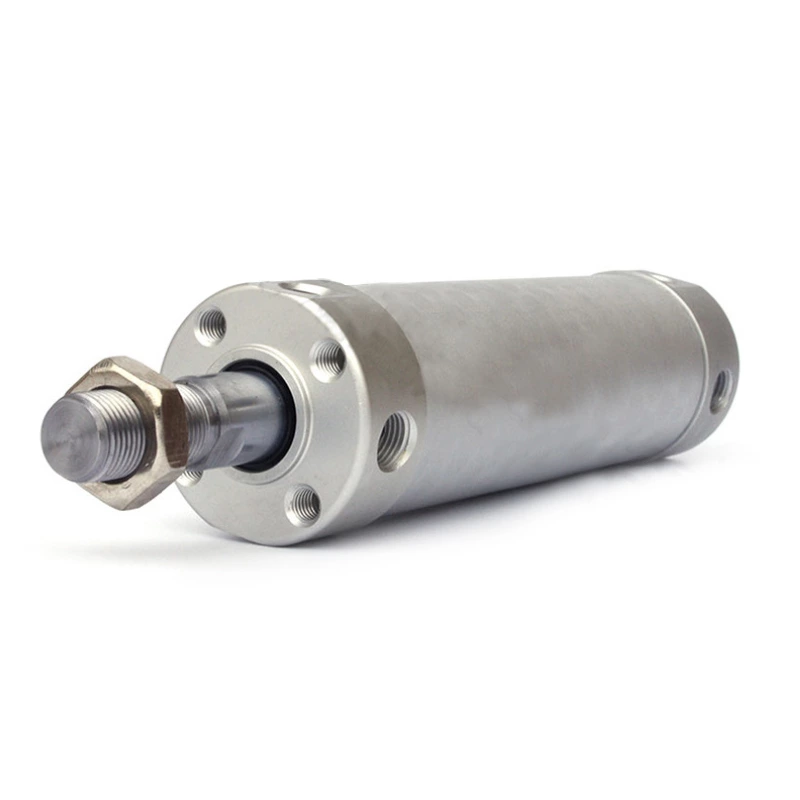

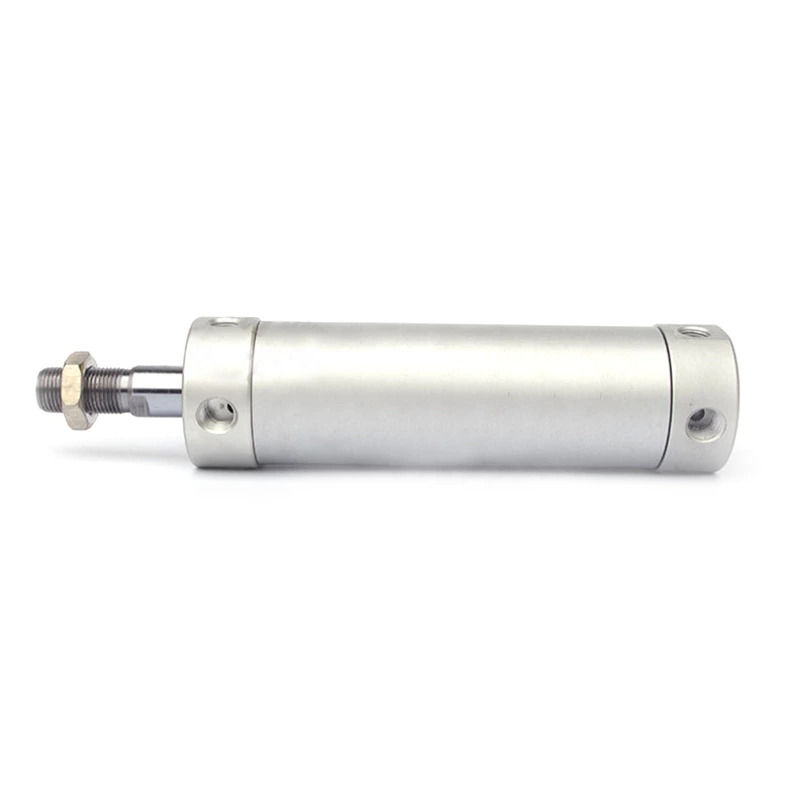

Miniature Pneumatic Cylinder CDG1

Hered CDG1 Series Miniature Pneumatic Cylinder: Compact, versatile actuators for diverse industrial applications. Available in bore sizes 20mm to 100mm, with strokes from 5mm to 300mm. Features standardized female thread rod end, improved magnetic switch operation, and multiple mounting options. High-strength aluminum alloy construction with anodized surface. Operating pressure: 0.05-1.0MPa. Speed: 501000mm/s (≤63mm bore), 50700mm/s (≥80mm bore). Temperature range: -1070°C (without magnetic switch), -1060°C (with magnetic switch). Offers air buffer or rubber buffer options. Non-lube operation with polyurethane dustproof seal for long service life. Ideal for automation equipment, packaging, assembly lines, and material handling. Provides improved flexibility, durability, and easy maintenance. Choose Hered CDG1 Series for efficient, space-saving pneumatic actuation in various industrial settings. Contact Hered Pneumatic for expert guidance on selecting the optimal cylinder for your specific system requirements.

Send your requirements, we will quote for you within 12 hours

Tel:+8618066396588
Whatsapp:+8618066396588
Email:sales@hered.com
Get quote

Hered CDG1 Series Miniature Pneumatic Cylinder

Hered Pneumatic Co., LTD.’s CDG1 Series Miniature Pneumatic Cylinder is a versatile and compact actuator designed for various industrial applications. With improved features and multiple configurations, this cylinder offers exceptional performance and flexibility in pneumatic systems.

Key Features

  • Standardized female thread on rod end
  • Improved magnetic switch operation for easier position fine-tuning
  • Additional no-trunnion mounting screw hole on basic type
  • High-strength aluminum alloy tube with anodized surface for corrosion and wear resistance
  • Fine thread connection between front/rear covers and cylinder tube for easy assembly
  • Polyurethane dustproof sealing ring for long service life
  • Small piston sealing ring structure for stable operation and low friction
  • Fixed anti-collision pad to reduce reversing impact

Specifications

  • Bore Sizes: 20, 25, 32, 40, 50, 63, 80, 100mm
  • Stroke Lengths: 5 to 300mm (varies by model)
  • Operating Pressure: 0.05-1.0 MPa
  • Speed: 50~1000mm/s (bore ≤ 63mm), 50~700mm/s (bore ≥ 80mm)
  • Working Temperature: -10 to 60°C (with magnetic switch), -10 to 70°C (without magnetic switch)
  • Buffer Types: Air Buffer / Rubber Buffer
  • Lubrication: Non-lube

Specification

Bore (mm) 20 25 32 40 50 63 80 100
Working Medium Air
Motion Pattern Double-acting
Maximum Operating Pressure 1.0MPa
Minimum Operating Pressure 0.05MPa
Environment and fluid temp Switch without magent: -10℃~+70℃, Switch with magent: -10℃~+60℃
Piston velocity 50~1000mm/s 50~700mm/s
Buffer Air Buffer / Rubber Buffer
Stroke Tolerance mm ~1000: +1.4/0; ~1200: +1.8/0 ~1000: +1.4/0; ~1500: +1.8/0
Lubrication Non-lube
Port Size Rc 1/8 1/4 3/8 1/2

Ordering Code for CDG1 Pneumatic Cylinder

Dimension (mm) for CDG1 Pneumatic Cylinder

Bore Stroke Thread length A □C ΦD ΦE F GA GB ΦI J K KA MM NA P S TA TB TC H ZZ
20 ~200 19.5 18 14 8 12 2 12 10 26 M4×0.7, depth 7 4 6 M8×1.25 24 1/8 69 11 11 M5×0.8 35 106
25 ~300 19.5 22 16.5 10 14 2 12 10 31 M5×0.8, depth 7.5 5.5 8 M10×1.25 29 1/8 69 11 11 M6×0.75 40 111
32 ~300 19.5 22 20 12 18 2 12 10 38 M5×0.8, depth 8 5.5 10 M10×1.25 35.5 1/8 71 11 10 M8×1.0 40 113
40 ~300 27 30 26 16 25 2 13 10 47 M6×1, depth 12 6 14 M14×1.5 44 1/8 78 12 10 M10×1.25 50 130
50 ~300 32 35 32 20 30 2 14 12 58 M8×1.25, depth 16 7 18 M18×1.5 55 1/4 90 13 12 M12×1.25 58 150
63 ~300 32 35 38 20 32 2 14 12 72 M10×1.25, depth 16 7 18 M18×1.5 69 1/4 90 13 12 M14×1.5 58 150
80 ~300 37 40 50 25 40 3 20 16 89 M10×1.25, depth 22 10 22 M22×1.5 80 3/8 108 – – – 71 182
100 ~300 37 40 60 30 50 3 20 16 110 M12×1.75, depth 22 10 26 M26×1.5 100 1/2 108 – – – 71 180

Applications

  • Automation equipment
  • Packaging machinery
  • Assembly lines
  • Material handling systems
  • Robotic systems

Benefits

  • Compact design for space-saving installations
  • Improved magnetic switch functionality
  • Versatile mounting options
  • Durable construction for long service life
  • Low friction operation
  • Easy maintenance and assembly

For detailed specifications, model options, or customized solutions, please refer to the provided dimension tables and ordering codes. Our technical support team is available to assist you in selecting the optimal CDG1 Series Miniature Pneumatic Cylinder for your specific application requirements.
