Overview

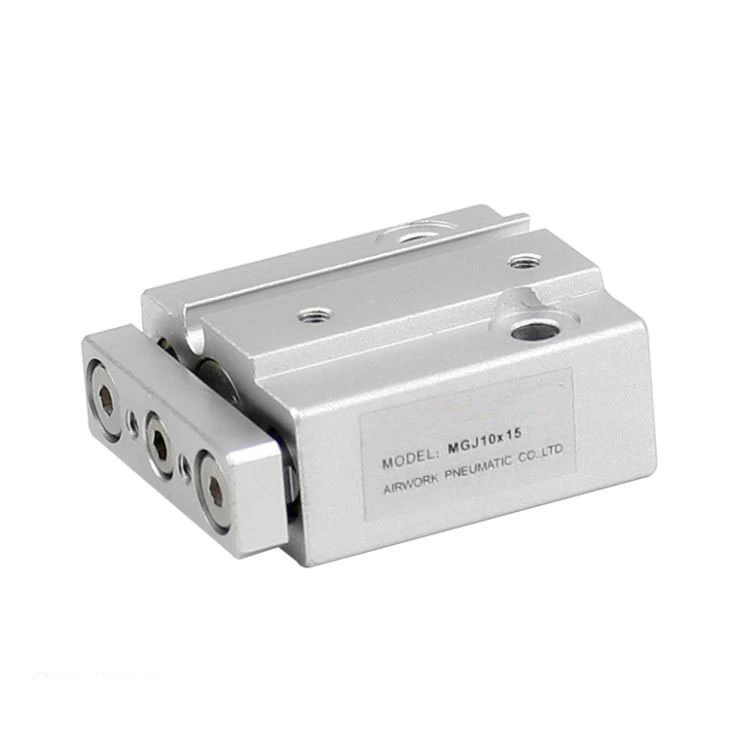

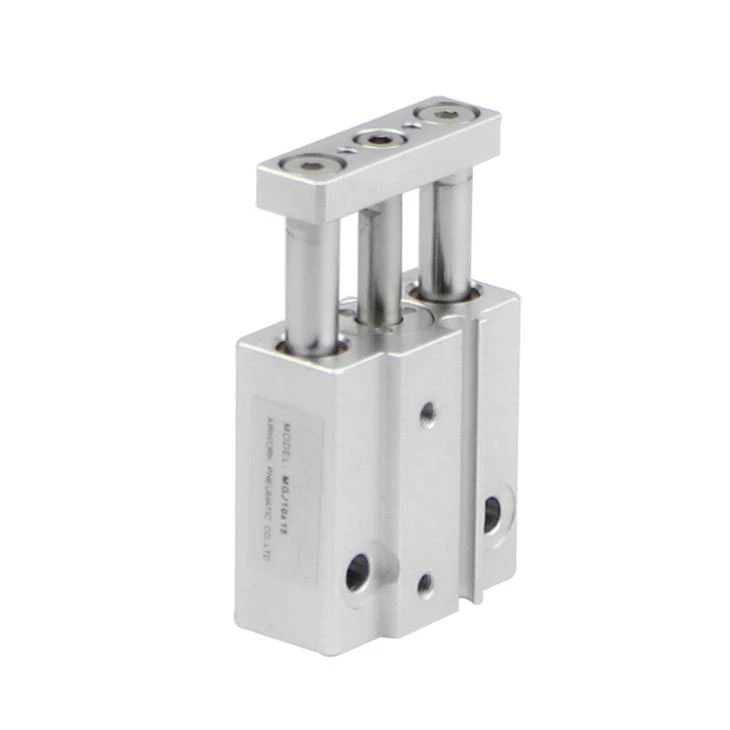

The MGJ Series Miniature Guided Pneumatic Cylinder by Hered Pneumatic Co., LTD. is designed for applications where space is limited. With a compact design and built-in linear guide, the MGJ Series provides enhanced stability and accuracy, making it ideal for precise and delicate operations in various industries.
Specifications
- Brand: Hered Pneumatic
- Pneumatic Type: Double acting, single rod
- Available Bore Sizes: 6 mm (MGJ6), 10 mm (MGJ10)
- Stroke Lengths:
- MGJ6: 5, 10, 15, 20, 25, 30 mm
- MGJ10: 5, 10, 15, 20, 25, 30, 35, 40, 45, 50 mm
- Materials: Anodized aluminum alloy body, stainless steel piston rod
Description
The MGJ Series miniature guided pneumatic cylinders are expertly engineered to provide precise positioning and increased stability in compact spaces. The built-in linear guide prevents lateral movement and misalignment of the piston rod, ensuring optimal performance in precision-demanding applications.
Key Features
- Compact Design: Space-saving footprint suitable for tight installations.
- Linear Guide: Integrated linear guide enhances the cylinder’s stability and accuracy.
- Versatile Bore Sizes: Available in 6 mm (MGJ6) and 10 mm (MGJ10) bore sizes to fit specific requirements.
- Flexible Stroke Lengths: Varying stroke lengths from 5 mm to 30 mm (MGJ6) and up to 50 mm (MGJ10).
- Robust Materials: Constructed with an anodized aluminum alloy body and stainless steel piston rod for durability.
- Mounting Options: Includes through-hole and flange mounting for versatile installation.
Detailed Specifications
| Bore Size (mm) | Standard Stroke Lengths (mm) |
|---|---|
| MGJ6 | 5, 10, 15, 20, 25, 30 |
| MGJ10 | 5, 10, 15, 20, 25, 30, 35, 40, 45, 50 |
Applications
The MGJ Series is ideal for use in the following applications:
- Semiconductor Manufacturing: Compact size and linear guide offer precise positioning for handling delicate components in semiconductor production equipment.
- Automation and Control Systems: Suitable for miniature pneumatic actuation in automated machinery where space is constrained.
- Robotics: Ensures stability and accuracy in small robotic grippers and end effectors.
- Printing and Packaging Machinery: Facilitates precise control of print heads, labeling mechanisms, and packaging components.
- General Automation: Versatile application across various automated machinery requiring miniature pneumatic solutions.
Choose the Hered Pneumatic Co., LTD. MGJ Series miniature guided pneumatic cylinder for precision, stability, and space-saving solutions tailored to meet the needs of modern industrial applications.
