Product Overview
The Hered K Series Pneumatic Ball Vibrator is a versatile and efficient vibration solution designed for various industrial applications. Utilizing innovative ball movement technology, this series offers adjustable, high-frequency vibrations with optimized air consumption, making it an ideal choice for handling a wide range of materials in different industrial processes.
Key Features
- Innovative Design: Uses ball movement to create adjustable, high-frequency vibrations.
- Durable Construction: Made from high-quality materials for longevity and reliability.
- Flexible Operation: Functions effectively at air pressures ranging from 0.2 to 0.6 MPa.
- Energy Efficient: Optimized air consumption for cost-effective operation.
- Versatile Application: Suitable for various industries and materials.

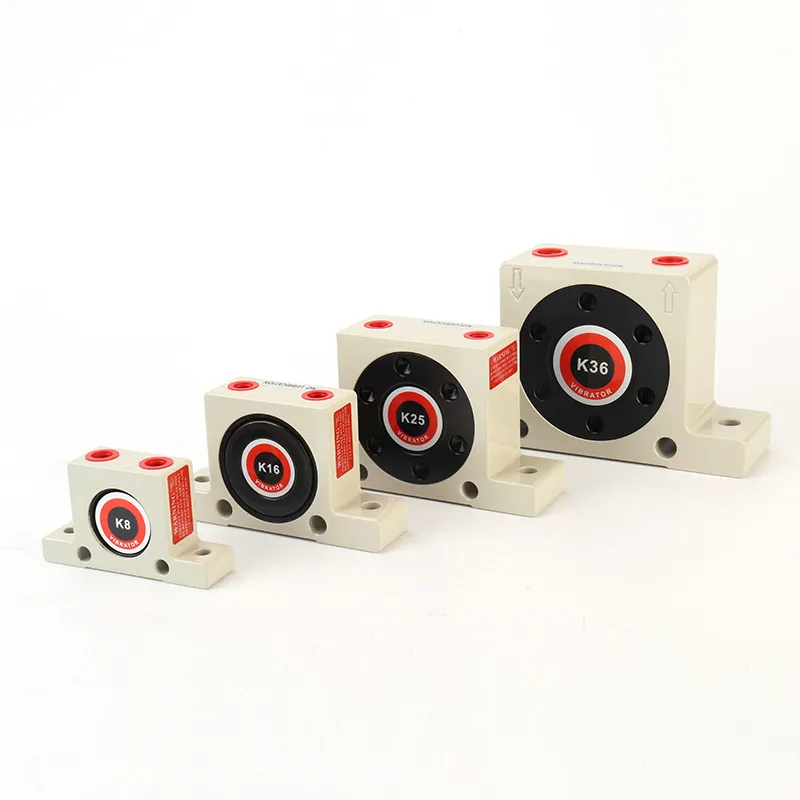

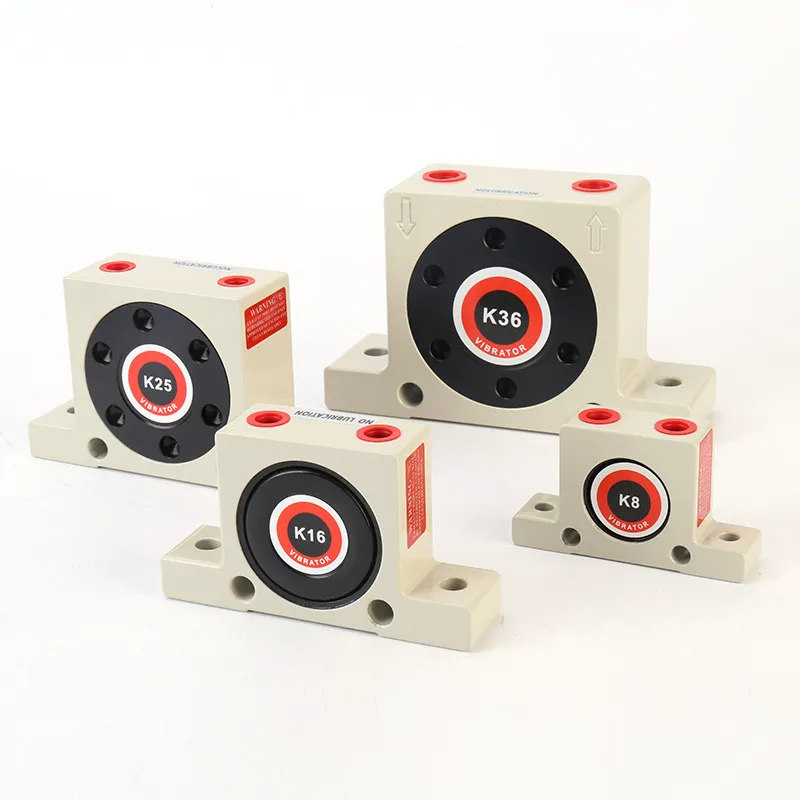

- Multiple Models: Available in different sizes (K-8 to K-36) to suit specific application needs.
Technical Specifications
| Model | Frequency (V.P.M) at 0.6 MPa | Vibration Power (N) at 0.6 MPa | Air Consumption (l/min) at 0.6 MPa |
|---|---|---|---|
| K-8 | 34,100 | 700 | 190 |
| K-13 | 19,000 | 1,200 | 270 |
| K-20 | 14,111 | 2,000 | 400 |
| K-32 | 11,000 | 4,000 | 680 |
Dimension
| Type | A | B | C | D | E | F | G | P/O | Weight(g) |
|---|---|---|---|---|---|---|---|---|---|
| K-8 | 68 | 50 | 28 | 7 | 12 | 22 | 86 | 1/4 | 150 |
| K-10 | 68 | 50 | 28 | 7 | 12 | 22 | 86 | 1/4 | 150 |
| K-13 | 90 | 65 | 39 | 9 | 16 | 27 | 113 | 1/4 | 330 |
| K-16 | 90 | 65 | 39 | 9 | 16 | 27 | 113 | 1/4 | 330 |
| K-20 | 104 | 82 | 57 | 9 | 17 | 38 | 128 | 1/4 | 690 |
| K-25 | 104 | 82 | 57 | 9 | 17 | 38 | 128 | 1/4 | 690 |
| K-32 | 130 | 103 | 76 | 11 | 21 | 50 | 160 | 3/8 | 1320 |
| K-36 | 130 | 103 | 76 | 11 | 21 | 50 | 160 | 3/8 | 1320 |
Applications
The K Series pneumatic ball vibrators are ideal for:
- Handling fine powder and granular materials
- Bulk material handling systems
- Hoppers and silos
- Screening and sorting applications
- Packaging machinery
- Concrete molding industries for bubble removal
Advantages
- Adjustable Performance: Variable frequency and power output based on air pressure.
- Scalable Solutions: Multiple models available to match specific application requirements.
- Efficient Operation: Optimized air consumption across all models and pressure ranges.
- High Frequency Output: Delivers powerful vibrations for effective material handling.
- Versatile Application Range: Suitable for various industries and material types.
Selection Guide
- Choose smaller models (K-8, K-10) for lighter applications and finer materials.
- Mid-range models (K-13, K-16, K-20) are suitable for medium-duty applications.
- Larger models (K-25, K-32, K-36) are ideal for heavy-duty industrial processes.
- Consider the required vibration power and available air pressure when selecting a model.
Installation and Operation Tips
- Ensure a clean, dry air supply for optimal performance and longevity.
- Adjust air pressure between 0.2 and 0.6 MPa to achieve desired vibration characteristics.
- Mount securely to the equipment or structure requiring vibration.
- Regularly inspect and maintain the vibrator to ensure consistent performance.
- Consider the air consumption rates when planning your compressed air system.
The Hered K Series Pneumatic Ball Vibrator offers a perfect balance of performance, efficiency, and versatility in industrial vibration technology. Its wide range of models and adjustable output make it an ideal choice for businesses looking to optimize their material handling and processing operations across various applications and industries.
