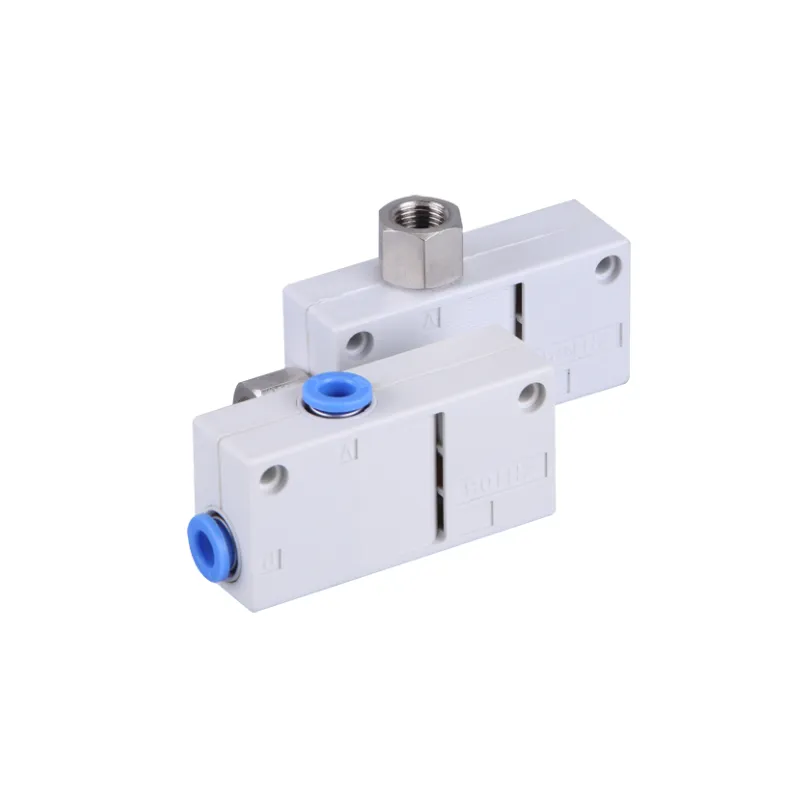

ZH Series Vacuum generator B Body Ported Type

Hered ZH Series Vacuum Generator: Compact, efficient pneumatic device for versatile vacuum generation. Features single-stage design with plastic housing, available in high vacuum and large flow types. Offers body ported and box type options with thread or one-touch fitting connections. Multiple nozzle sizes from 0.5mm to 2.0mm. Max vacuum levels up to 88 kPa and flow rates up to 140 NL/min. Operates at 4.5 bar supply pressure with working temperature 5-50°C. Available in AZH-D body ported and AZH-B box types, with various port sizes and connection options. Ideal for automotive, metal sheet, wood, food, and packaging industries. Benefits include small size, light weight, cost-effectiveness, and built-in silencer for noise reduction. Multiple mounting options: direct, bracket, L-bracket, and DIN rail. Choose Hered ZH Series for efficient, adaptable vacuum generation in diverse industrial applications. Contact Hered Pneumatic for expert guidance on selecting the optimal vacuum generator configuration for your precision pneumatic systems.

Send your requirements, we will quote for you within 12 hours

Tel:+8618066396588
Whatsapp:+8618066396588
Email:sales@hered.com
Get quote

Hered ZH Series Vacuum Generator

Features

  • Single stage vacuum generator with plastic housing
  • High vacuum level type and large vacuum flow type options available
  • Body ported type and box type options
  • Thread connection or one-touch fitting for port connection

Technical parameters

Model Rated air supply pressure bar Max. vacuum level -kPa Max. vacuum flow NL/min Air consumption NL/min Noise level dB(A) Working temperature °C Weight g Recommended hose dia.(mm)
S L S L Air supply port S Vacuum port V Exhaust port E
AZH05B 4.5 88 48 5 9 13.5 68 5~50 28 ϕ6 ϕ6 –
AZH07B 4.5 88 48 12 22 23.5 68 5~50 28 ϕ6 ϕ6 –
AZH10B 4.5 88 48 24 34 46.0 72 5~50 33 ϕ6 ϕ6 –
AZH13B 4.5 88 48 40 75 78.0 72 5~50 66 ϕ8 ϕ10 –
AZH05D 4.5 88 48 7.5 9 13.5 75 5~50 11 ϕ6 ϕ6 ϕ6
AZH07D 4.5 88 48 12 22 23.5 75 5~50 12 ϕ6 ϕ6 ϕ6
AZH10D 4.5 88 48 24 34 46.0 68 5~50 16 ϕ6 ϕ6 ϕ8
AZH13D 4.5 88 48 40 75 78.0 68 5~50 27 ϕ8 ϕ10 ϕ10
AZH15D 4.5 88 53 60 80 97.0 72 5~50 43 ϕ10 ϕ12 ϕ12
AZH18D 4.5 88 53 70 110 150.0 72 5~50 55 ϕ12 ϕ12 ϕ12
AZH20D 4.5 88 53 85 140 185.0 75 5~50 95 ϕ12 ϕ16 ϕ16

Dimension

AZH – D Body ported type(One-touch fitting)
Model/Size A B C D E F G H L K J
AZH05DS-06-06-06 58.5 34.0 14.2 17.0 6 21.0 3.2 24.0 6 22.0 6
AZH07DS-06-06-06 61.0 34.0 14.2 17.0 6 22.0 3.2 24.0 6 22.0 6
AZH10DS-06-06-08 66.0 37.0 17.2 20.0 6 24.5 4.2 26.0 8 23.0 6
AZH10DL-06-06-08 70.0 37.0 17.2 20.0 6 24.5 4.2 26.0 8 23.0 6
AZH13DS-08-10-10 74.0 42.5 20.0 22.0 8 27.0 4.2 28.0 10 27.5 10
AZH13DL-08-10-10 79.5 42.5 20.0 22.0 8 27.0 4.2 28.0 10 27.5 10
AZH15DS-10-12-12 93.3 47.0 22.5 27.0 10 32.8 4.2 31.5 12 29.5 12
AZH18DS-12-12-12 114.0 41.0 21.0 10.0 12 50.0 3.5 35.5 12 30.5 12
AZH20DS-12-16-16 124.6 46.0 27.0 12.0 12 54.3 3.5 38.5 16 32.7 16
AZH – D Body ported type(Female thread connection)
Model/Size A B C D E F G H L K J
AZH05DS-01-01-01 73.5 41.5 14.2 17.0 Rc1/8 28.5 3.2 31.5 Rc1/8 29.5 Rc1/8
AZH07DS-01-01-01 76.0 41.5 14.2 17.0 Rc1/8 29.5 3.2 31.5 Rc1/8 29.5 Rc1/8
AZH10DS-01-01-01 82.0 44.5 17.2 20.0 Rc1/8 33.0 4.2 33.5 Rc1/8 30.5 Rc1/8
AZH10DL-01-01-01 86.0 44.5 17.2 20.0 Rc1/8 33.0 4.2 33.5 Rc1/8 30.5 Rc1/8
AZH13DS-01-02-02 94.5 54.0 20.0 22.0 Rc1/8 38.5 4.2 36.5 Rc1/4 39.0 Rc1/4
AZH13DL-01-02-02 99.5 54.0 20.0 22.0 Rc1/8 38.5 4.2 36.5 Rc1/4 39.0 Rc1/4
AZH15DS-02-03-03 116.5 58.5 22.5 27.0 Rc1/4 44.5 4.2 43.0 Rc3/8 41.0 Rc3/8
AZH18DS-03-03-03 133.0 52.5 21.0 10.0 Rc3/8 57.5 3.5 47.0 Rc3/8 42.0 Rc3/8
AZH20DS-03-04-04 151.0 61.0 27.0 12.0 Rc3/8 69.3 3.5 50.0 Rc1/2 47.7 Rc1/2

AZH – B Box type(One-touch fitting)
Model/Size A B C D E F G H Q L K J
AZH05B-06-06 60 16 31 5.8 2 3.2 47 22 24 6 5 6
AZH07B-06-06 60 16 31 5.8 2 3.2 47 22 24 6 5 6
AZH10B-06-06 63 18 32 5.8 2 3.2 50 23 26 6 5 6
AZH13B-08-10 78 23 38.5 7.5 3 4.2 61 27.5 28 10 7 8
AZH – B Box type(Female thread connection)
Model/Size A B C D E F G H Q M K S
AZH05B-01-01 68 16 39 5.8 2 3.2 47 Rc1/8 31.5 Rc1/8 5 12
AZH07B-01-01 68 16 39 5.8 2 3.2 47 Rc1/8 31.5 Rc1/8 5 12
AZH10B-01-01 71 18 40 5.8 2 3.2 50 Rc1/8 33.5 Rc1/8 5 12
AZH13B-01-02 86.5 23 50 7.5 3 4.2 61 Rc1/8 36.5 Rc1/4 7 14

Advantages

  • Small size, light weight, and cost-effective
  • Suitable for various occasions
  • Box type with built-in silencer to reduce noise
  • Thread connection and one-touch fitting options

Applications

  • Widely used in all kinds of vacuum systems
  • Suitable for various handling operations such as automotive, metal sheet, wood, food, and packaging
  • High vacuum type and large flow type for different occasions

Technical Specifications

  • Seven nozzle diameters: 0.5 mm, 0.7 mm, 1.0 mm, 1.3 mm, 1.5 mm, 1.8 mm, and 2.0 mm
  • Standard and large flow capabilities
  • Efficient high vacuum generation using compressed air

Mounting Options

  • Direct mounting
  • Standard bracket
  • L-bracket
  • DIN rail mounting

The Hered ZH Series Vacuum Generator offers a compact, versatile solution for point-of-use vacuum generation in various industrial applications. Its lightweight design, multiple configuration options, and efficient performance make it ideal for manufacturing, packaging, and assembly processes requiring reliable vacuum capabilities.
