Overview

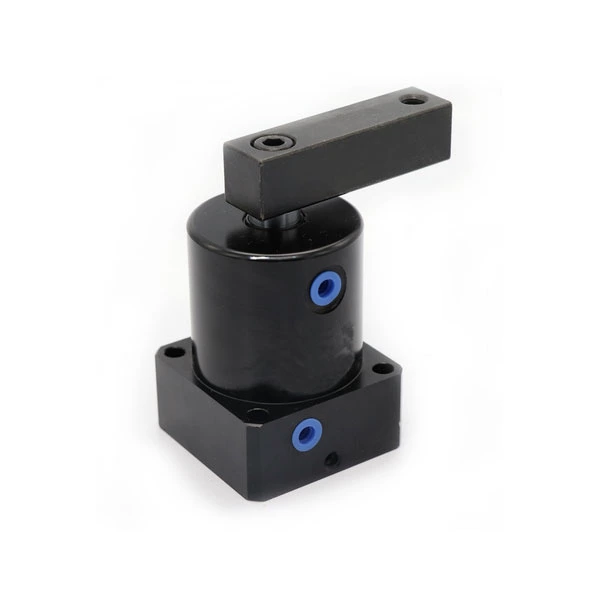

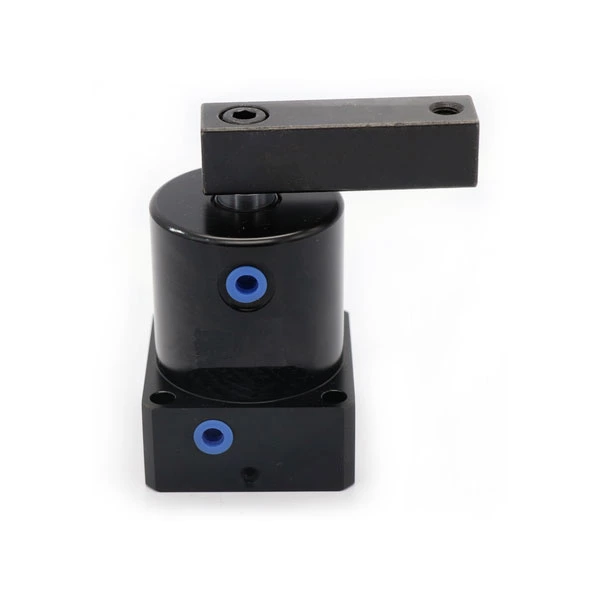

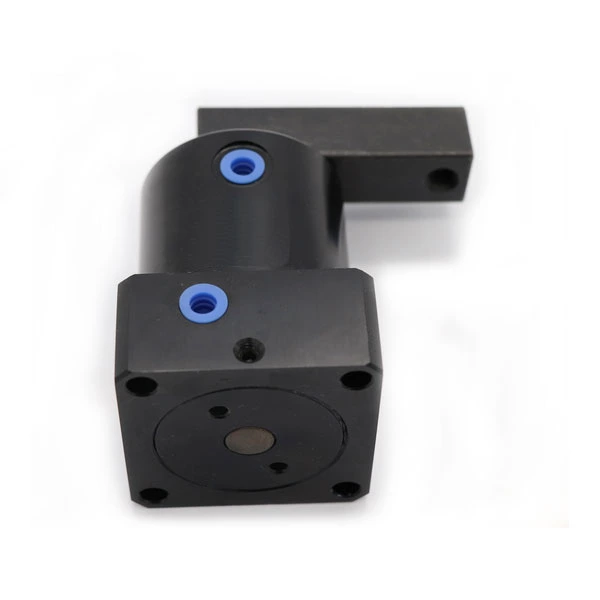

The Hered HSR Swing Clamp Cylinder is a high-performance pneumatic actuator designed for precise clamping and positioning in industrial applications. This versatile cylinder combines rotary and linear motion, offering efficient and automated clamping solutions for tooling, fixtures, and CNC machining centers.
Key Features
- Double-acting operation for bi-directional rotation
- Available bore sizes: 25, 32, 40, 50, and 63mm
- Aluminum alloy construction with hard anodized surface
- Imported self-lubricating sealing rings for low maintenance
- Precise 90° (±2°) rotation angle
- Integrated piston rod design for enhanced durability
Technical Specifications
| Parameter | Specification |
|---|---|
| Working Medium | Air |
| Operating Pressure | 0.1 to 0.7 MPa (1 to 7 kgf/cm²) |
| Temperature Range | 0°C to 60°C |
| Lubrication | Non-lube (ISOVG32 if required) |
| Rotation Direction | Left (L) or Right (R) options |
| Port Size | M5×0.8 (Φ25) or 1/8″ (Φ32 and larger) |
Performance Highlights
- Slewing stroke: 9-13mm (size dependent)
- Downward stroke: 13-17mm (size dependent)
- Theoretical clamping force: 200-1680N at 0.6 MPa (size dependent)
Applications
Ideal for use in:
- Tooling and fixture clamping
- CNC machining centers
- Automated assembly lines
- Material handling systems
- Industrial automation processes
Advantages
- Precise positioning and efficient clamping
- Automatic control capabilities
- Improved productivity over manual clamping
- Reduced risk of industrial accidents
- Suitable for high-volume production
Ordering Information
When ordering, specify the bore size, rotation direction, and any additional options required. Refer to the ordering code chart for detailed configuration options.
For more information on dimensions, installation guidelines, and customization options, please consult our product catalog or contact our technical support team.
