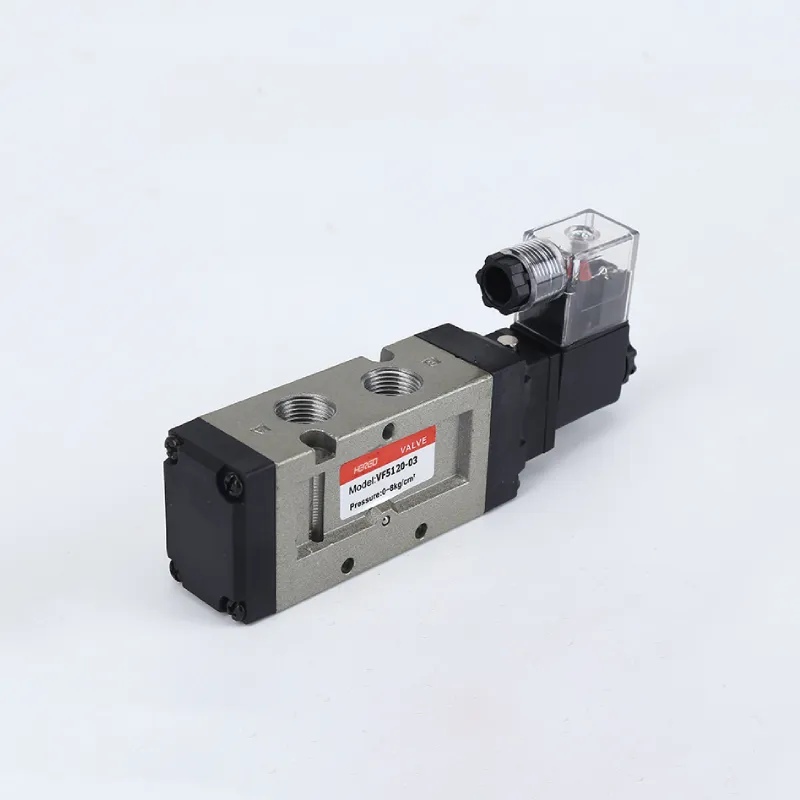

Hered VF5 Series Solenoid Valve
Hered Pneumatic Co., LTD.’s VF5 Series Solenoid Valve is a high-performance, versatile solution for precise pneumatic control in various industrial applications. This five-port pilot solenoid valve series offers exceptional flow capacity in a compact design, making it ideal for automation systems, robotics, and machinery where space efficiency and reliable performance are crucial.
Key Features
- Five-port configuration for efficient air flow control
- Large flow capacity in a compact design
- Multiple configurations available: 2/5-way and 3/5-way options
- Various electrical control options: single and double electrically controlled
- Manual operation feature for added flexibility
- Wide range of voltage options to suit diverse systems
- Internally piloted acting type for consistent performance
- Durable aluminum alloy body with NBR seals
Technical Specifications
| Model | VF5120-02 | VF5220-02 | VF3330-02 | VF5420-02 | VF5520-02 |
|---|---|---|---|---|---|
| Fluid | Air (filtered through 40μ filter element) | ||||
| Action | Internally piloted acting type | ||||
| Valve type | 2/5 Way | 3/5 Way | |||
| Effective area(mm²) | 49(CV=11) | 49(CV=11) | 30(CV=7.3) | 26(CV=4.9) | 23(CV=6.6) |
| Lubrication | Not required | ||||
| Operating pressure | 1.5~8.0kgf/cm² | ||||
| Proof pressure | 10.5kg/cm² | ||||
| Ambient & fluid temperature | 5~60℃ | ||||
| Voltage range | ±10% | ||||
| Power consumption | AC:4.5W DC:3.0W | ||||
| Insulation grade | F grade | ||||
| Protection | IP65(DIN 40050) | ||||
| Connection | Lead wire type or terminal type | ||||
| Max.frequency | 5 cycle/sec. | ||||
| Min.response time | 0.05 sec. | ||||
Model Selection
To order your Hered VF5 Series Solenoid Valve, use the following code structure:
VF5 - 120 - 4 - G - B - 03
- Series code: VF5
- Type: 120 (2/5 way single electrically control), 220 (2/5 way double electrically control), etc.
- Voltage: 4 (DC24V), 3 (110VAC), etc.

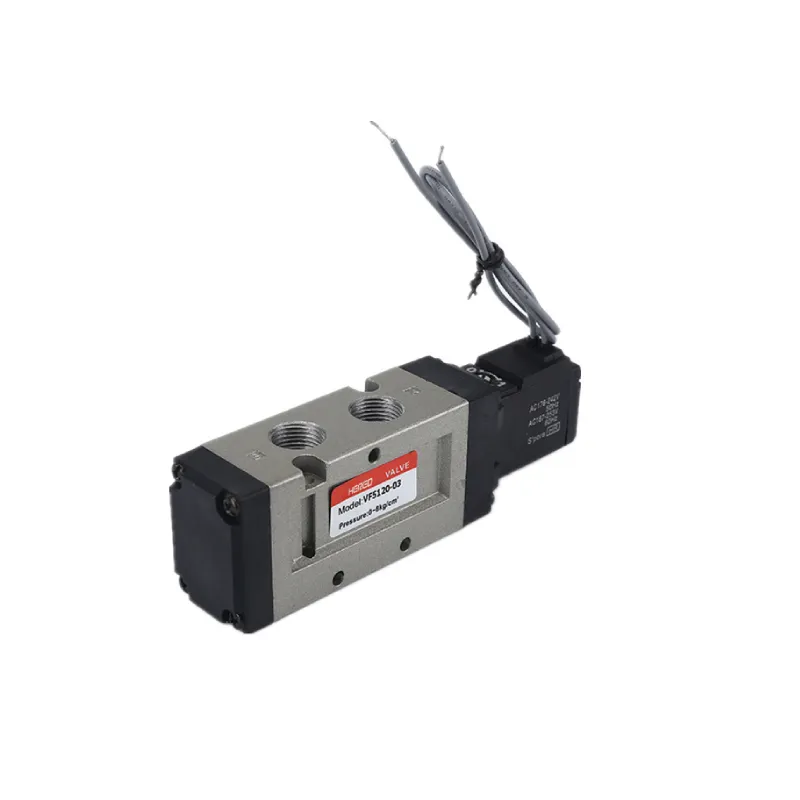

- Wiring type: G (G-lead wire type), D (D:DIN wiring box type)
- Manual operation: B
- Port size: 03 (3/8″)
Dimension
Applications
- Advanced automation systems and production lines
- Robotic assembly and material handling
- Packaging machinery
- Pneumatic control systems in manufacturing
- Industrial machinery and equipment
- Food and beverage processing
- Pharmaceutical production
- Automotive manufacturing
Benefits
- High flow capacity for efficient operation in demanding applications
- Compact design for easy integration into existing systems
- Versatile configurations to suit a wide range of pneumatic control needs
- Excellent reliability and long service life
- Energy-efficient operation with low power consumption
- Fast response time for precise control
- Maintenance-free operation with no lubrication required
- IP65 protection for use in harsh industrial environments
- Manual override option for added flexibility in operation and maintenance
Hered Pneumatic Co., LTD.’s VF5 Series Solenoid Valve offers exceptional performance, versatility, and reliability for diverse industrial pneumatic applications. With its high flow capacity, compact design, and multiple configuration options, this valve ensures precise and efficient air flow control in even the most demanding environments. Choose Hered’s VF5 Series for uncompromising quality and dependable operation in your pneumatic systems and automation processes.
For more information, customization options, or to place an order, please contact our sales team. We’re committed to helping you find the perfect Hered VF5 Series Solenoid Valve tailored to your specific requirements.
