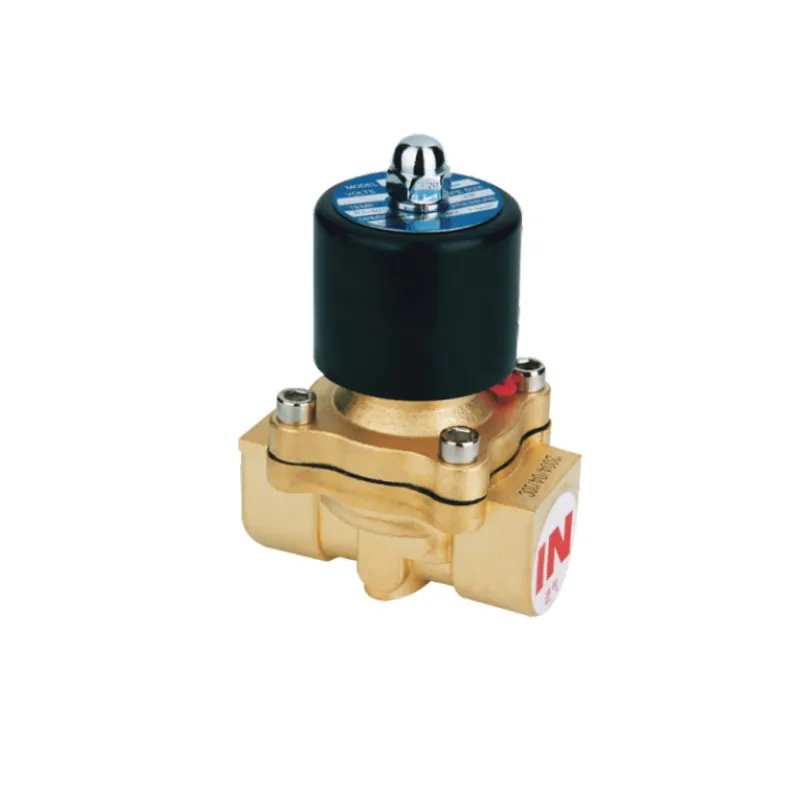

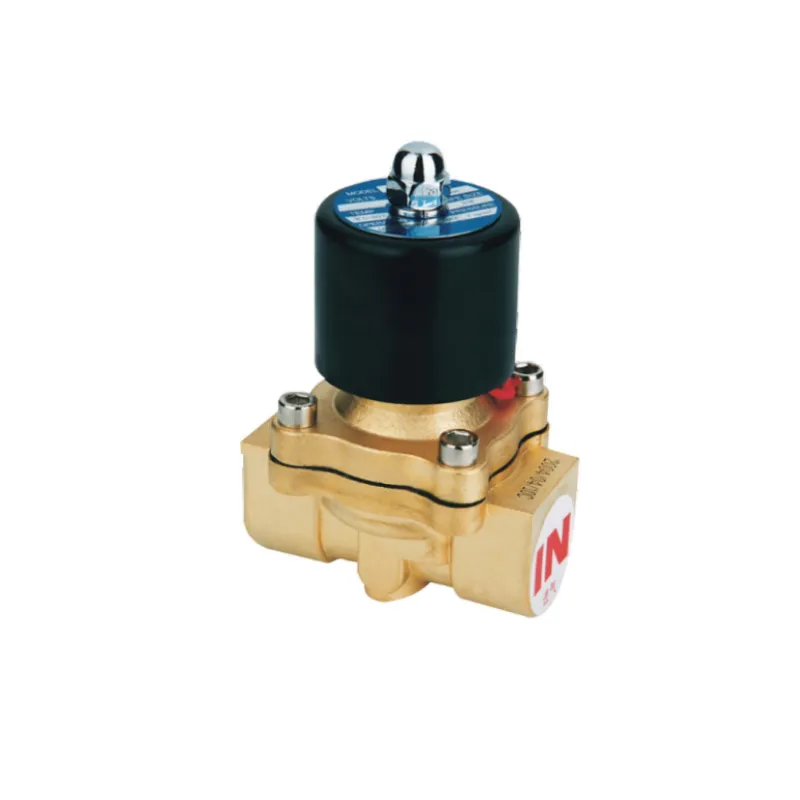

Hered 2W Series Direct-Acting Solenoid Valve
Hered Pneumatic Co., LTD.’s 2W Series Direct-Acting Solenoid Valve is a versatile and reliable solution for precise fluid control in various industrial applications. This two-port valve offers exceptional performance in controlling air, water, oil, and gas, making it an ideal choice for pneumatic systems, HVAC applications, and industrial automation processes.
Key Features
- Direct-acting mechanism for zero pressure start capability
- Available in normally closed and normally open configurations
- Wide range of port sizes from 3/8″ to 2″
- Suitable for various fluids including air, water, oil, and gas
- Durable brass alloy body with optional stainless steel variants
- NBR rubber seal with EPDM/VITON options for enhanced fluid compatibility
- Capable of operating at zero differential pressure
Technical Specifications
| Model | Orifice | CV Value | Port Size |
|---|---|---|---|
| 2W160-10/15 | 16mm | 4.8 | G3/8″ / G1/2″ |
| 2W200-20 | 20mm | 7.6 | G3/4″ |
| 2W250-25 | 25mm | 12 | G1″ |
| 2W350-35 | 35mm | 24 | G1 1/4″ |
| 2W400-40 | 40mm | 29 | G1 1/2″ |
| 2W500-50 | 50mm | 48 | G2″ |
General Specifications
- Working Medium: Air, Water, Oil, Gas
- Acting Type: Direct acting
- Control Style: Normally closed / Normally open
- Working Pressure: Air: 0~0.7MPa, Water/Oil: 0~0.5MPa, Gas: 0~0.7MPa
- Max. Pressure: 1.05MPa
- Working Temperature: -5~80°C (up to 150°C with special seals)
- Valve Body Material: Brass (Stainless Steel options available)
- Seal Material: NBR (VITON options available)
Dimensions
| Model | A (mm) | B (mm) | C (mm) | D (mm) | K (mm) |
| 2W160-10 | 101.5 | 57 | 117 | 69 | 3/8″ |
| 2W160-15 | 101.5 | 57 | 117 | 69 | 1/2″ |
| 2W200-20 | 107 | 57 | 117 | 69 | 3/4″ |
| 2W250-25 | 111.5 | 73.5 | 134.5 | 99 | 1″ |
| 2W350-35 | 142 | 95 | 172 | 123 | 11/4″ |
| 2W400-40 | 142 | 95 | 172 | 123 | 11/2 |
| 2W500-50 | 172 | 123 | 209 | 168 | 2″ |
Applications
- Pneumatic control systems
- HVAC systems
- Industrial automation processes
- Water treatment facilities
- Oil and gas industry
- Food and beverage processing (with appropriate materials)
Benefits
- Versatile performance across various fluid types and pressures
- Reliable operation with zero differential pressure capability
- Durable construction for extended service life
- Easy installation and maintenance
- Customizable options to suit specific application requirements
Installation Notes
- Ensure clean piping before installation
- Install a Y-frame filter upstream of the solenoid valve for extended lifespan
- Proper sizing and selection based on fluid type and system requirements is crucial
