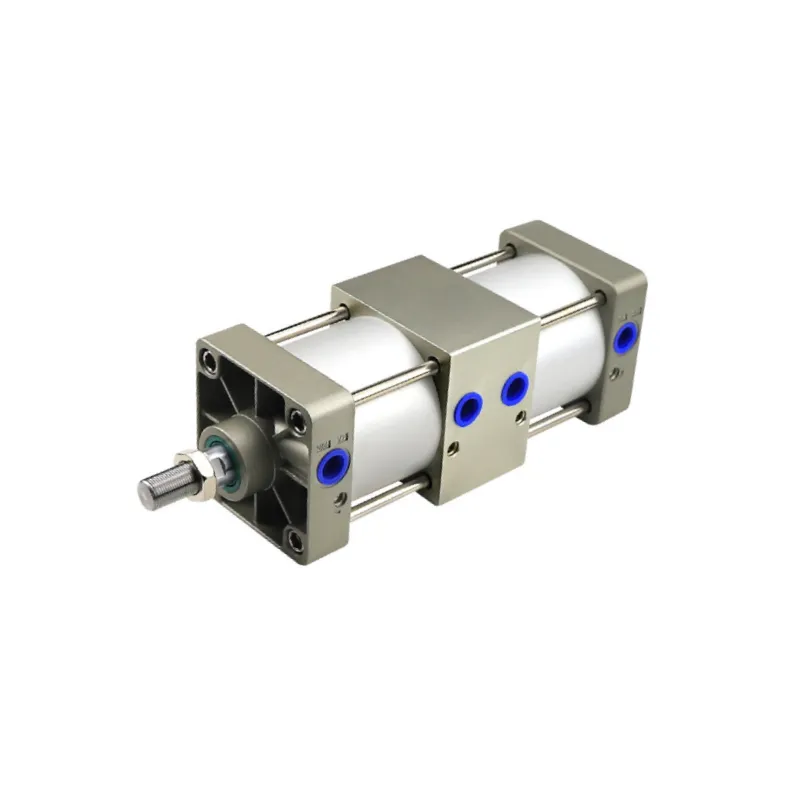

Hered SCT Series High-Temperature Standard Cylinder
The Hered SCT Series High-Temperature Standard Cylinder is an advanced pneumatic actuator designed to excel in high-temperature environments and applications requiring multiple working positions. Engineered with precision and durability in mind, this cylinder offers exceptional performance and versatility for demanding industrial settings.
Key Features
- High-Temperature Operation: Engineered to function optimally at temperatures up to 150°C
- Multi-Position Control: Special connector allows for graded stroke range control, enabling multiple working positions
- Free Lubrication: Oil-containing bearings eliminate the need for piston rod lubrication
- Adjustable Cushioning: Ensures stable, impact-free performance
- Magnetic Piston: Integrated permanent magnet for position sensing with inductive switches
- Double-Acting Design: Provides precise control in both directions
Technical Specifications
| Parameter | Specification |
|---|---|
| Bore Sizes | 32, 40, 50, 63, 80, 100 mm |
| Operation | Double Acting |
| Working Medium | Air (filtered by 40 μm filter mesh) |
| Operating Pressure Range | 0.1 ~ 1.0 MPa (14 ~ 145 Psi) |
| Proof Pressure | 1.5 MPa (215 Psi) |
| Operating Temperature Range | -20 ~ 80°C (up to 150°C with high-temp seals) |
| Operating Speed Range | 30 ~ 800 mm/s |
| Stroke Tolerance Range | 0~250 mm (+1.0/0), 251~1000 mm (+1.4/0), 1001~1500 mm (+1.8/0) |
| Buffer Type | Adjustable buffer |
| Port Size | PT1/8 to PT1/2 (depending on bore size) |
| Standard Stroke Lengths | 25, 50, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500 mm |
| Maximum Stroke | 500 mm (custom strokes available on request) |
Mounting Options
- Basic type (no mount)
- LB-type (foot mounting)
Applications
The SCT Series High-Temperature Cylinder is ideal for use in:
- Steel mills and high-temperature processing plants
- Manufacturing automation requiring flexible positioning
- Industrial environments with extreme temperature conditions
- Applications needing multiple working positions
- Scenarios where frequent lubrication is impractical
Benefits
- Exceptional performance in high-temperature environments
- Increased flexibility with multiple working position capabilities
- Reduced maintenance due to self-lubricating design
- Improved process control with position sensing functionality
- Enhanced durability and longevity in demanding conditions
Quality Assurance
Hered Pneumatic Co., LTD. ensures high-quality production with rigorous testing and adherence to international standards. Our SCT Series cylinders are engineered for reliability, performance, and longevity in the most challenging industrial environments.
For detailed specifications, customization options, or to place an order, please contact our customer support team.
