Precision Slide Table Pneumatic Cylinder MXH Series

Hered MXH Series Compact Slide Table Pneumatic Cylinder: High-precision, compact actuators for accurate linear motion. Features linear guide bearings, built-in magnetic ring, and three-sided air supply connection. Available in bore sizes 6mm to 20mm, with strokes from 5mm to 60mm. Offers 6x higher load capacity than MXU series. Double-acting, double-rod configuration with standard rubber cushioning. Ideal for precision assembly, automation equipment, testing, packaging, medical devices, and robotics. Provides high precision, rigidity, and excellent linearity in a space-saving design. RoHS compliant with options for custom porting and stroke lengths. Choose Hered MXH Series for reliable, high-precision pneumatic actuation in compact spaces. Contact Hered Pneumatic for expert guidance on selecting the optimal compact slide table for your specific requirements and seamless integration into your precision industrial processes.

Send your requirements, we will quote for you within 12 hours

Tel:+8618066396588

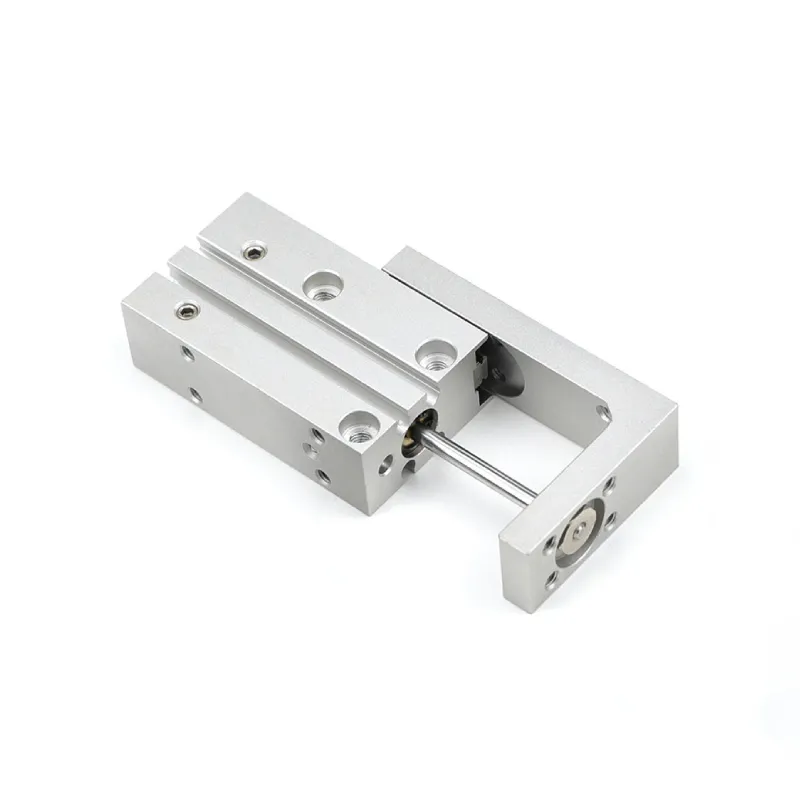

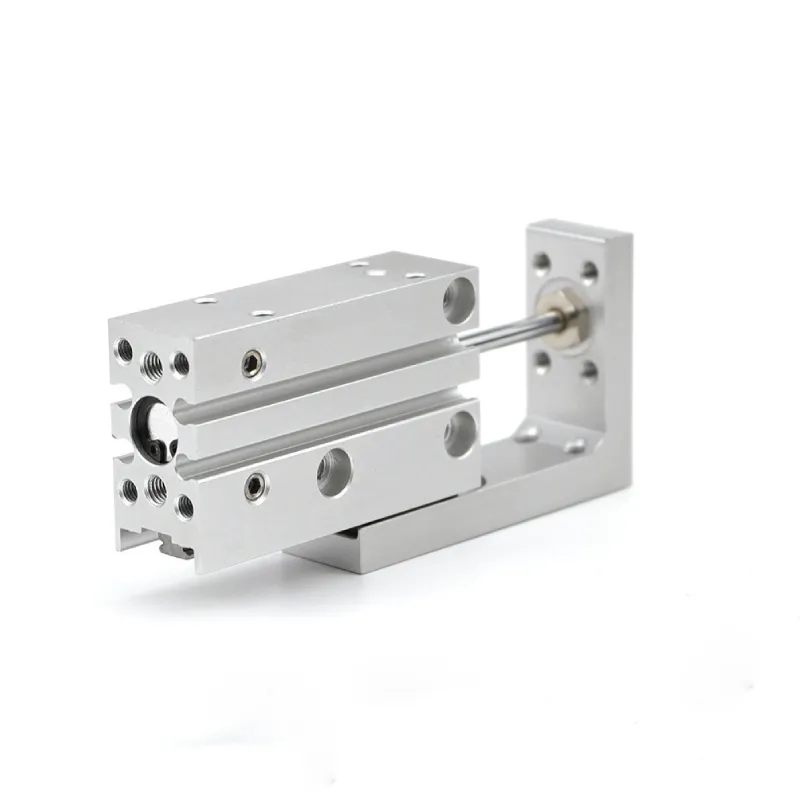

Hered MXH Series Compact Slide Table Pneumatic Cylinder

Hered Pneumatic Co., LTD.’s MXH Series Compact Slide Table is a high-precision, compact pneumatic actuator designed for applications requiring accurate linear motion and non-rotation tolerance. Featuring linear guide bearings and a robust construction, this cylinder offers exceptional performance in demanding industrial environments.

Key Features

  • Linear guide bearings for improved non-rotation accuracy
  • Built-in magnetic ring for compatibility with stroke induction switches
  • Three-sided air supply connection for flexible installation
  • Dual-side magnetic switch mounting capability
  • Standard rubber cushioning at both ends
  • High load capacity (6 times that of MXU series)
  • Double-acting, double-rod configuration for high thrust output
  • RoHS compliant

Ordering Code

Dimension (mm) for MXH Slide Table

Stroke(mm) J LA LB LT NS
5 4 10 42 14
10 4 10 42 14
15 4 20 52 24
20 4 20 52 24
25 4 30 62 30
30 4 30 62 30
40 6 20 20 72 45
50 6 25 25 82 55
60 6 30 30 92 60

Stroke(mm) J LA LB LT NS
5 4 10 49 14
10 4 10 49 14
15 4 20 59 24
20 4 20 59 24
25 4 30 69 30
30 4 30 69 30
40 6 20 20 79 45
50 6 25 25 89 55
60 6 30 30 99 60

Stroke(mm) J LA LB LT NS
5 4 10 58 20
10 4 10 58 20
15 4 20 68 30
20 4 20 68 30
25 4 30 78 40
30 4 30 78 40
40 6 20 20 88 50
50 6 25 25 98 60
60 6 30 30 108 60

Stroke(mm) J LA LB LT NS
5 4 10 64 20
10 4 10 64 20
15 4 20 74 25
20 4 20 74 25
25 4 30 84 40
30 4 30 84 40
40 6 20 20 94 50
50 6 25 25 104 70
60 6 30 30 114 70

Specifications

  • Bore Sizes: 6mm, 10mm, 16mm, 20mm
  • Stroke Lengths: 5mm to 60mm (varies by model)
  • Action Type: Double-acting
  • Configuration: Double-rod
  • Cushioning: Rubber bumpers (standard)
  • Auto Switch: Capable

Applications

  • Precision Assembly: Electronic components, small parts handling
  • Automation Equipment: Pick and place operations, indexing
  • Testing and Measurement: Precise positioning of sensors or probes
  • Packaging: High-speed sorting and alignment
  • Medical Devices: Accurate dispensing and sample handling
  • Robotics: End-of-arm tooling requiring precise linear motion

Benefits

  • High precision and rigidity for accurate and stable operation
  • Compact design for space-saving integration
  • Excellent linearity ensures smooth and consistent movement
  • Versatile mounting and connection options for easy installation
  • Enhanced load capacity for demanding applications
  • Compatible with various sensing options for improved control

Custom Options

  • Special (non-standard) porting available upon request
  • Custom stroke lengths may be available for specific applications

The Hered MXH Series Compact Slide Table Pneumatic Cylinder combines precision, compactness, and versatility to meet the demanding requirements of modern industrial applications. Its linear guide bearings ensure exceptional non-rotation accuracy, making it ideal for tasks requiring precise linear motion and positioning. The built-in magnetic ring and dual-side switch mounting capability enhance its flexibility in automation systems, allowing for easy integration of position sensing and control.

With its high load capacity and smooth operation, the MXH series excels in applications ranging from precision assembly to robotic end-of-arm tooling. The standard rubber cushioning at both ends ensures gentle deceleration, protecting both the cylinder and the workpiece in high-speed operations.

Whether you’re designing compact automation equipment, upgrading existing systems, or developing new precision
