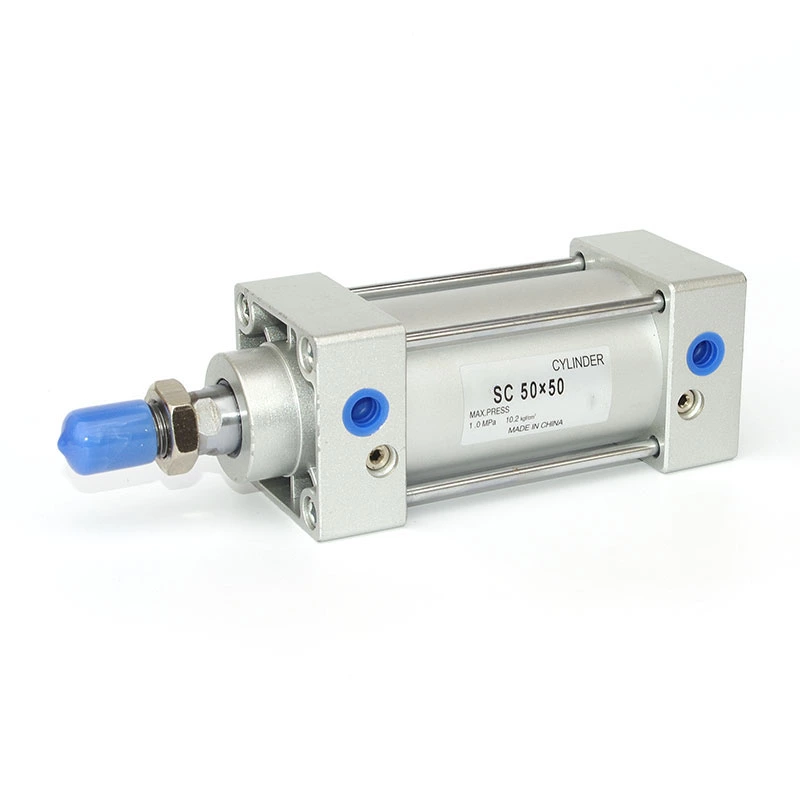

Hered SC/SU Series Standard Cylinder

The Hered SC/SU Series Standard Cylinder is a versatile and cost-effective pneumatic actuator designed for various industrial applications. Conforming to ISO9001:2015 standards and CE certified, this cylinder offers reliable performance and durability.

Key Features

  • Double-acting operation for precise control
  • Available in multiple bore sizes: 32mm, 40mm, 50mm, 63mm, 80mm, 100mm, and 125mm
  • Stroke lengths from 25mm to 1000mm (standard), up to 2000mm (max)
  • Adjustable cushioning for smooth operation
  • Compact design with durable construction
  • Multiple mounting options for versatile installation
  • Optional magnet for position sensing

Technical Specifications

Parameter Specification
Operation Double Acting
Working Medium Air
Operating Pressure Range 1~9.0Kgf/cm²
Proof Pressure 13.5Kgf/cm²
Operating Temperature Range -20~80°C
Operating Speed Range 50~800mm/s
Cushion Adjustable Cushion
Port Size G1/8″ to G1/2″ (depending on bore size)

Available Models

  • SC: Standard single rod cylinder
  • SCD: Double rod cylinder
  • SCJ: Adjustable stroke cylinder

Mounting Options

  • Basic (no mount)
  • FA: Front flange
  • FB: Rear flange
  • CA: Front clevis
  • CB: Rear clevis
  • LB: Foot mounting
  • TC-M: Center trunnion

Internal Structure

The SC/SU Series features a robust internal structure with high-quality components:

  • Piston rod: S45C Durionise Grinding Rod
  • Cylinder tube: Aluminum alloy
  • End caps: Aluminum alloy
  • Seals: NBR and TPU for excellent wear resistance
  • Optional magnet for position sensing

Applications

Ideal for use in various industrial applications, including:

  • Manufacturing automation
  • Packaging machinery
  • Material handling equipment
  • Assembly lines
  • Robotics
  • Dust removal devices

Ordering Information

Use the provided ordering code system to specify your exact cylinder configuration, including series, bore size, stroke length, magnet option, and mounting type.

Quality Assurance

Hered Pneumatic Co., LTD. ensures high-quality production with ISO9001:2015 certification and CE marking. Our SC/SU Series cylinders are engineered for durability, performance, and compliance with international standards.

For detailed specifications, customization options, or to place an order, please contact our customer support team.
