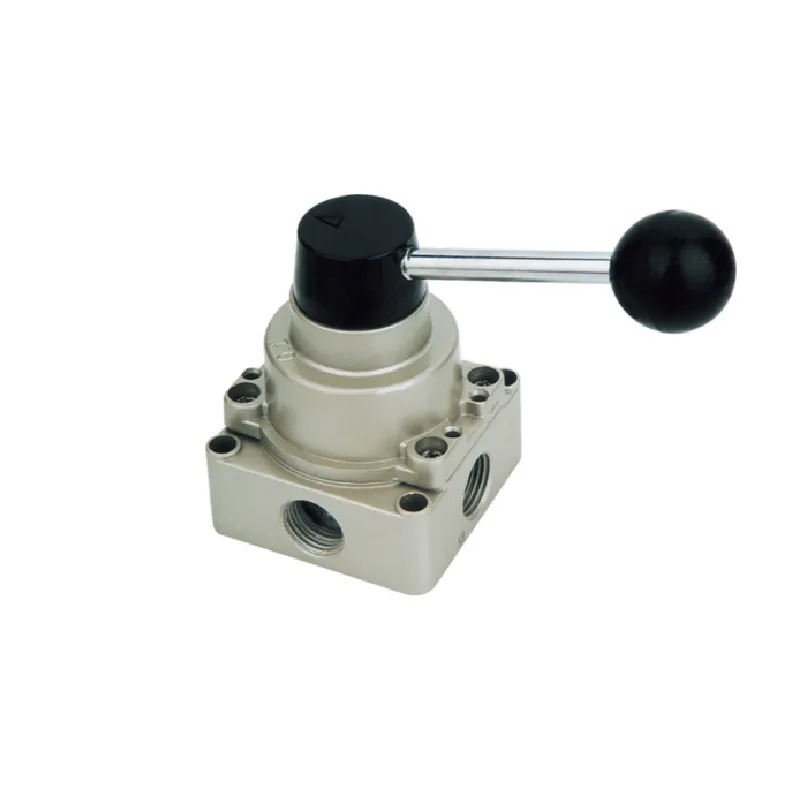

Hered HV Series Rotary Lever Valve
Hered Pneumatic Co., LTD.’s HV Series Rotary Lever Valve is a robust, high-performance manual control valve designed for precise directional control in pneumatic systems. This versatile valve combines ease of use with durable construction, making it an ideal choice for various industrial applications where reliable manual operation and direct air flow control are crucial.
Key Features
- Direct acting type for immediate response
- 4/2 configuration for versatile flow control
- Multiple port sizes available to suit various system requirements
- Wide operating pressure and temperature range
- Durable aluminum alloy body with NBR seals
- Maintenance-free operation with no lubrication required
- Compact design for efficient space utilization
Technical Specifications
| Parameter | HV-02 | HV-03 | HV-04 |
|---|---|---|---|
| Fluid | Air(filtered through 40μ filter element) | ||
| Action | Direct acting type | ||
| Port size | 1/4″ | 3/8″ | 1/2″ |
| Operating pressure | 0~8.0kgf/cm² | ||
| Ambient & fluid temperature | 0~60°C | ||
| Lubrication | Not required | ||
| Weight (kg) | [To be specified] | ||
| Main parts material | Body: Aluminum alloy | ||
| Seal: NBR | |||
Dimension
Applications
- Automation systems requiring manual control
- Pneumatic actuator directional control
- Machine tools and equipment
- Assembly lines and manufacturing processes
- Packaging machinery
- Material handling systems
- Industrial robots and manipulators
Benefits
- Simple and reliable manual operation for precise control
- Versatile port size options to suit various pneumatic system requirements
- Wide operating pressure range for flexibility in different applications
- Durable construction for long service life in industrial environments
- Low maintenance due to lubrication-free design
- Easy installation and replacement in existing systems
- Suitable for use in a wide range of ambient temperatures
Options and Customization
The Hered HV Series Rotary Lever Valve is available in various configurations to meet your specific application needs. Options may include:
- Different port sizes: 1/4″, 3/8″, and 1/2″
- Custom lever designs for specific ergonomic requirements
- Spring return mechanism for automatic neutral position return (select models)
Hered Pneumatic Co., LTD.’s HV Series Rotary Lever Valve offers a reliable and efficient solution for manual directional control in pneumatic systems. Its robust design, coupled with direct acting operation and versatile port sizes, makes it an excellent choice for applications requiring precise manual control of air flow. Whether you’re designing a new system or upgrading existing equipment, the HV Series provides the performance and durability needed in today’s demanding industrial environments.
For more information, detailed specifications, or to discuss how the HV Series can be tailored to your specific application, please contact our sales team. We’re committed to helping you find the perfect pneumatic control solution for your needs.
