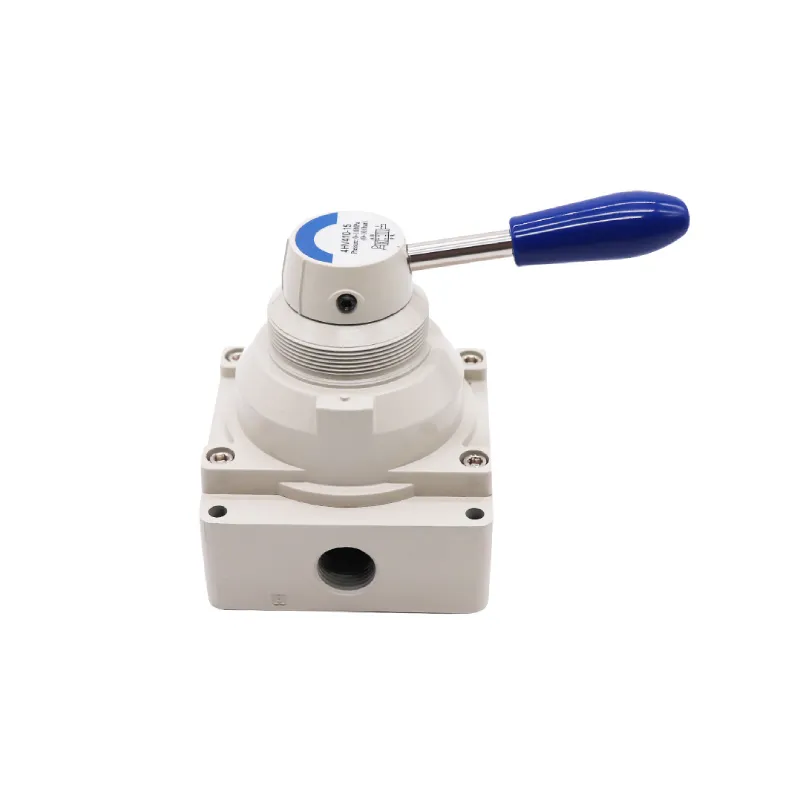

Hered 4HV Series 4/3 Way Rotary Lever Valve
Hered Pneumatic Co., LTD.’s 4HV Series 4/3 Way Rotary Lever Valve is a versatile and robust manual control valve designed for precise directional control in pneumatic systems. This series offers exceptional flexibility with its 4/3 way configuration, making it ideal for controlling double-acting cylinders and other pneumatic applications requiring multiple flow paths.
Key Features
- 4/3 way and 4/2 way configurations for versatile flow control
- Manual rotary lever operation for intuitive control
- Multiple port sizes available to suit various system requirements
- Wide operating pressure range with high proof pressure
- Durable aluminum alloy body with nylon seals
- 90° operating angle for precise positioning
- Suitable for filtered air applications
How to Order
To order your Hered 4HV Series Rotary Lever Valve, use the following code structure:
4HV 2 30 - 06 S
| 4HV | 2 | 30 | 06 | S |
|---|---|---|---|---|
| Rotary lever valve | Series 2: 2 series 3: 3 series 4: 4 series |
Position & port 10: 2/4 way 30: 3/4 way |
Port size 06: 1/8″ 08: 1/4″ 10: 3/8″ 15: 1/2″ 20: 3/4″ |
Mounting type Nil: valve body mounting S: panel mounting |
Example: 4HV230-06S represents a 4HV series rotary lever valve, 2 series, 3/4 way configuration, with 1/8″ port size and panel mounting.
Technical Specifications
| Parameter | 4HV2□□-06 | 4HV2□□-08 | 4HV3□□-08 | 4HV3□□-10 | 4HV4□□-15 | 4HV4□□-20 |
|---|---|---|---|---|---|---|
| Fluid | Air(filtered through 40μ filter element) | |||||
| Valve type | 4/3 way 4/2 way | |||||
| Port size | 1/8″ | 1/4″ | 1/4″ | 3/8″ | 1/2″ | 3/4″ |
| Effective area(mm²) | 14(0.78) | 16(0.89) | 30(1.67) | 33(1.83) | 88(4.89) | 95(5.27) |
| Pressure range | 0~10kgf/cm² | |||||
| Proof pressure | 15kgf/cm² | |||||
| Ambient & fluid temperature | 0~60℃ | |||||
| Operating angle | 90℃ | |||||
| Weight (kg) | [To be specified] | |||||
| Main parts material | Body: Aluminum alloy | |||||
| Seal: Nylon | ||||||
Dimension
Applications
- Control of double-acting pneumatic cylinders
- Automation systems requiring manual control
- Machine tools and equipment
- Assembly lines and manufacturing processes
- Packaging machinery
- Material handling systems
- Industrial robots and manipulators
Benefits
- Versatile 4/3 way configuration for multiple flow path control
- Simple and reliable manual operation for precise control
- Wide range of port sizes to suit various pneumatic system requirements
- High pressure range and proof pressure for demanding applications
- Durable construction for long service life in industrial environments
- 90° operating angle for easy and accurate positioning
- Suitable for use in a wide range of ambient temperatures
Options and Customization
The Hered 4HV Series 4/3 Way Rotary Lever Valve is available in various configurations to meet your specific application needs. Options include:
- Multiple port sizes: 1/8″, 1/4″, 3/8″, 1/2″, and 3/4″
- 4/3 way and 4/2 way configurations
- Different effective areas for varied flow requirements
Hered Pneumatic Co., LTD.’s 4HV Series 4/3 Way Rotary Lever Valve offers a reliable and efficient solution for manual directional control in complex pneumatic systems. Its versatile configuration, coupled with robust construction and wide operating range, makes it an excellent choice for applications requiring precise manual control of air flow in multiple directions. Whether you’re designing a new system or upgrading existing equipment, the 4HV Series provides the performance and flexibility needed in today’s demanding industrial environments.
For more information, detailed specifications, or to discuss how the 4HV Series can be tailored to your specific application, please contact our sales team. We’re committed to helping you find the perfect pneumatic control solution for your needs.
