Overview:

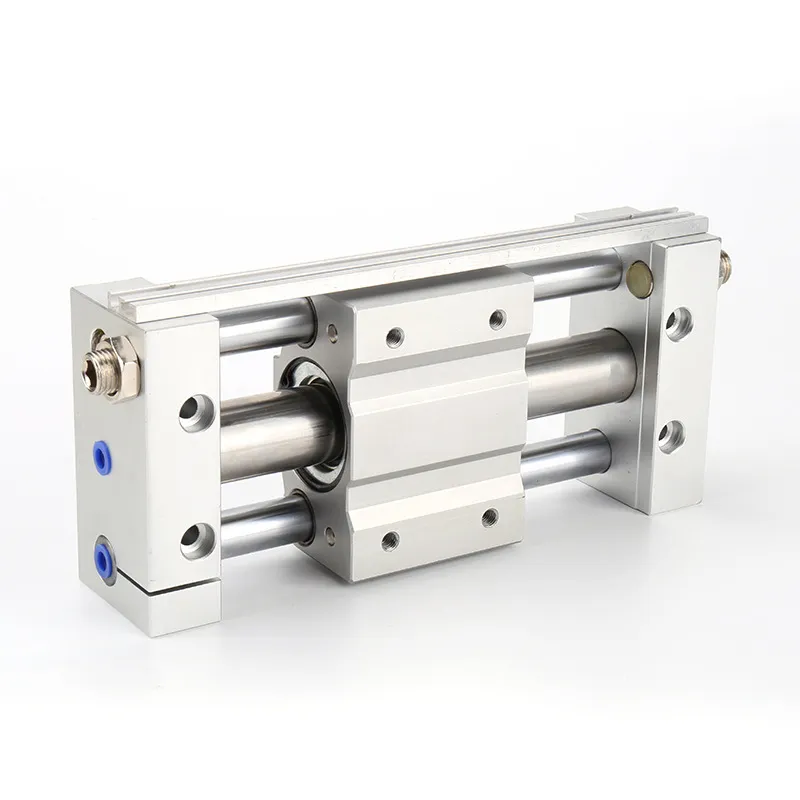

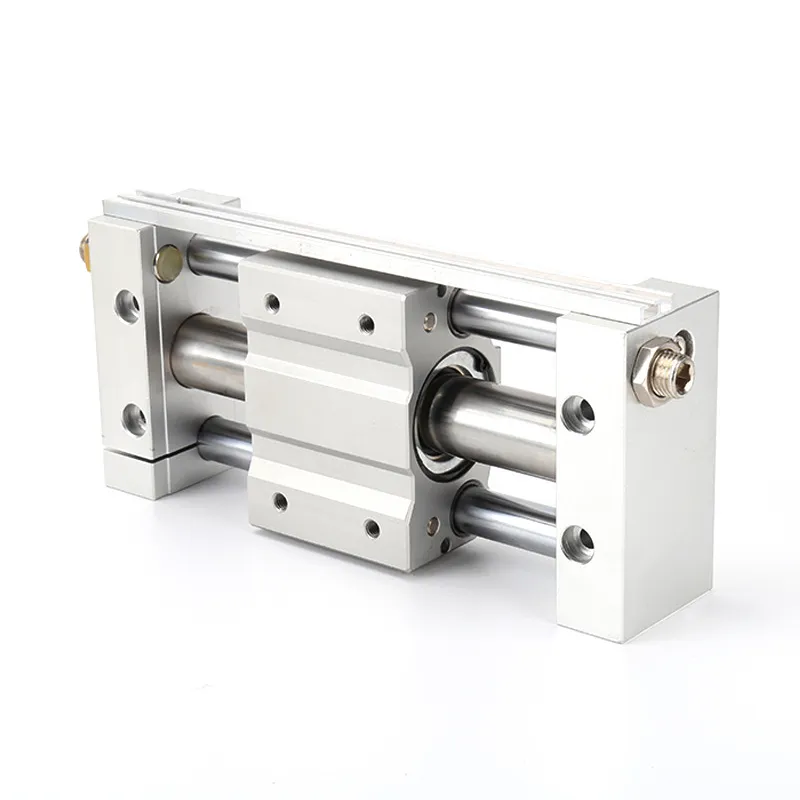

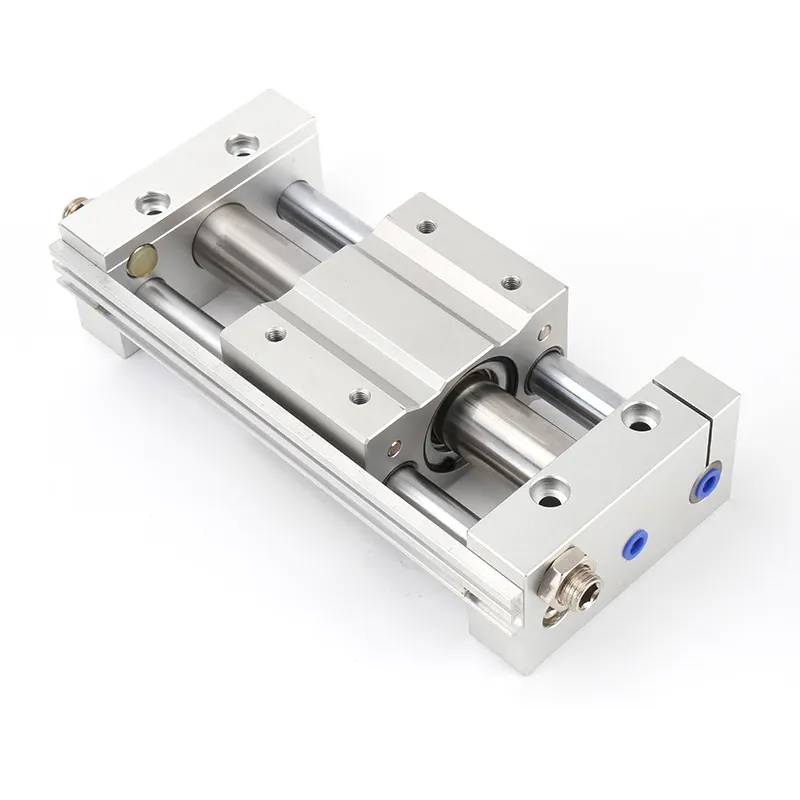

HERED RMT Series is a high-performance guided rodless cylinder featuring magnetic coupling. It offers precise linear motion with various bore sizes and customization options, making it suitable for a wide range of industrial applications.
Key Features
- Available bore sizes: Φ16, Φ20, Φ25, Φ32, Φ40 mm
- Magnetic coupling between piston and carriage
- Dust-proof design with isolation between carriage and piston
- Compact and space-efficient
- Adjustable pneumatic cushioning on both ends
- Double guides for high precision and proper side load handling
- Non-magnetically conductive materials recommended for workpieces
Technical Specifications
| Parameter | Specification |
|---|---|
| Bore sizes | 16, 20, 25, 32, 40 mm |
| Acting type | Double acting |
| Fluid | Air (filtered by 40μm filter element) |
| Operating pressure | 30~100psi (0.2~0.7MPa) for Φ16, Φ20; 36~100psi (0.25~0.7MPa) for others |
| Proof pressure | 175psi (1.2MPa) |
| Temperature range | -20~70°C |
| Speed range | 50~400 mm/s |
| Cushion type | Fixed cushion or Shock absorber (Available) |
Ordering Information
Example: RMT 20×100 S □ T
- RMT: Series name
- 20: Bore size
- 100: Stroke length
- S: With magnet
- □: Cushion type (Blank for adjustable nuts, A for shock absorbers)
- T: NPT thread type
Installation and Application Guidelines
- Ensure the maximum load is less than the theoretical holding force (refer to provided graphs).
- Consider the relationship between loading and stroke length when selecting a model.
- Use the Load-Velocity charts for proper bore size selection in horizontal and vertical movements.
- Replace shock absorbers when a decrease in energy absorption capacity is noticed.
- Follow proper procedures for shock absorber replacement and tightening.
- Sensor switches can only be used with cylinders that have magnets.
Maintenance
- Regularly inspect and replace shock absorbers as needed.
- Never loosen the bottom screw of the shock absorber to prevent oil leakage.
- Use appropriate tightening torques for shock absorber setting nuts.
- Properly install and adjust sensor switches according to provided instructions.
For detailed specifications, dimensions, and customization options, please consult our product catalog or contact our technical support team. Our experts can assist you in selecting the most suitable RMT Series Guided Rodless Cylinder configuration for your specific application needs.
