Overview

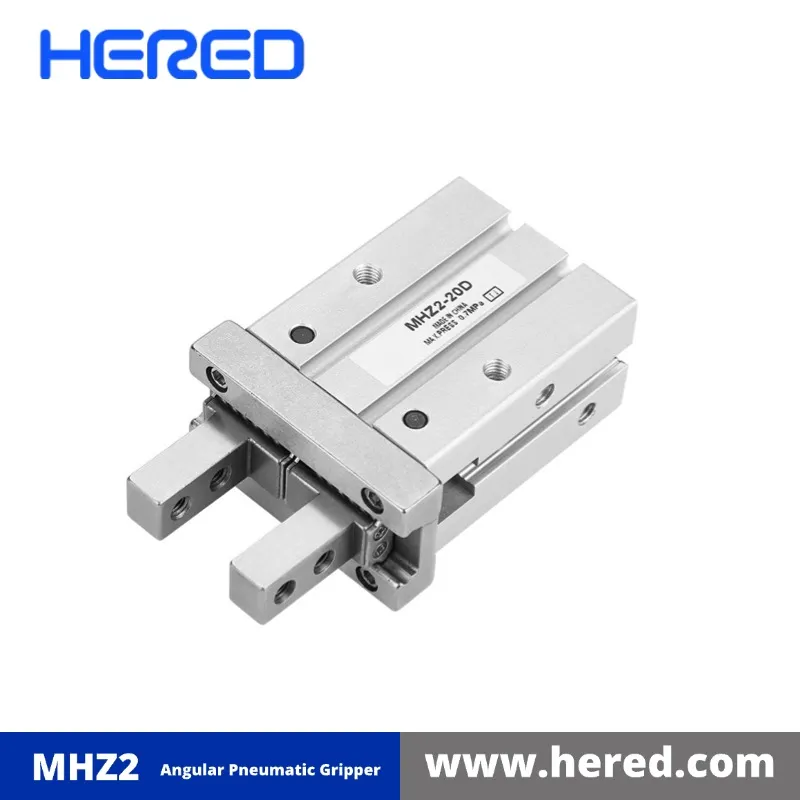

The Hered MHZ2 Pneumatic Parallel Gripper is a compact and versatile actuator designed for efficient workpiece handling in automated systems. This gripper features a parallel opening and closing motion, high gripping force, and a space-saving design, making it ideal for a wide range of industrial applications.
Key Features
- Compact structure for space-efficient installation
- Parallel gripping motion for consistent workpiece handling
- Available bore sizes: 6, 10, 16, 20, 25, 32, 40mm
- Double-acting and single-acting options
- High repeatability: ±0.01mm to ±0.02mm
- Magnetic switch compatibility (except J-MHZA2, J-MHZAJ2 models)
- Standard, narrow, and flat finger options
- Integral guide construction for reliable operation
- Abrasion-resistant fingers for long-lasting performance
Technical Specifications
| Parameter | Specification |
|---|---|
| Working Medium | Air |
| Operating Pressure (Double-acting) | 0.1 to 0.7 MPa (varies by bore size) |
| Operating Pressure (Single-acting) | 0.25 to 0.7 MPa (varies by bore size) |
| Temperature Range | -10°C to +60°C |
| Maximum Frequency | 60 to 180 cycles per minute (model dependent) |
| Lubrication | Non-lube |
| Port Size | M3×0.5 or M5×0.8 (size dependent) |
Applications
Ideal for use in:
- Automated assembly lines
- Pick and place operations
- Material handling systems
- Robotic end-effectors
- Packaging machinery
- Precision part handling in various industries
Design and Construction
- High-precision mounting for accurate positioning
- Magnetic sensing capabilities for position feedback
- Versatile mounting options for easy integration
- Compatible with both oiled and oil-free compressed air
Ordering Information
When ordering, specify the model code indicating the series, bore size, actuation type, and finger option. Refer to the ordering code chart for detailed configuration options.
Dimensions and Mounting
The MHZ2 gripper offers compact dimensions suitable for various mounting configurations. Refer to the dimension chart for specific measurements based on the bore size.
For detailed specifications, dimensions, and customization options, please consult our product catalog or contact our technical support team. Our experts can assist you in selecting the most suitable MHZ2 Parallel Gripper configuration for your specific application needs, ensuring optimal performance in your automated handling processes.
